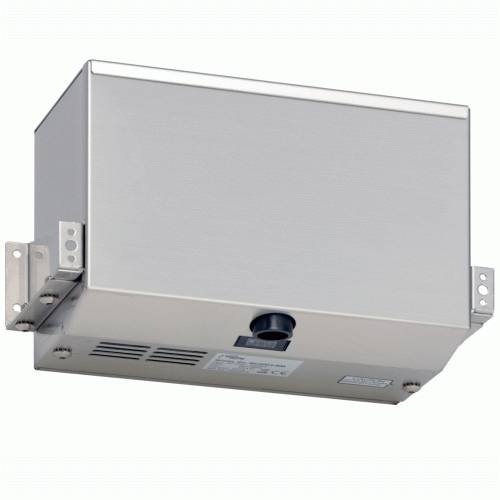

BC2003BM Dolphin Velocity Behind Mirror Dryer

Application

Suitable for use in commercial washroom areas.

Description

A behind mirror, stainless steel, high speed hand dryer.


Features and benefits:

  • High speed low energy hand dryer.
  • Dryer delivers 101.7 m³/ hour (90 m/s).
  • Operating power of only 1000 W (500 W heating element), saving 80% of user’s energy costs.
  • Infra-red, self-adjusting sensor.
  • 29 000 rpm brush motor.
  • Class 1 rated isolation.

General information

Color

Grey

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

263 mm

Width

139 mm

Height

170 mm

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/472 Hand dryers

V90/590 Equipment

Product range

Hot air dryers / Dolphin Velocity hand dryers

Specification data - Hand dryers

Form

High speed low energy.

Operation

Automatic.

Timer

Adjustable.

Self-adjusting sensor.

Electrical supply

-

Power rating

1.0 kW.

Body

-

Material

Stainless steel.

Finish

Satin.

Colour

Grey.

Silver.

Ingress protection (minimum)

To BS EN 60529, IPX1.

Dimensions

170 x 263 mm.

Noise level at 1 m (maximum)

75 dB(A).

Projection

139 mm.

Air flow

Air output temperature.

55ºC.

Drying time

Dries hands in 13 seconds.

Reducing the CO2 emissions.

Heating element

500 W.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

IFC
-

1

1

Download now from NBS National BIM Library

Literature

Dolphin Velocity Range

Dolphin Velocity Range
