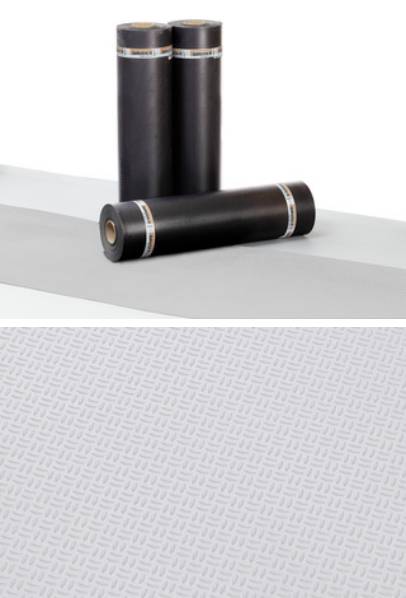

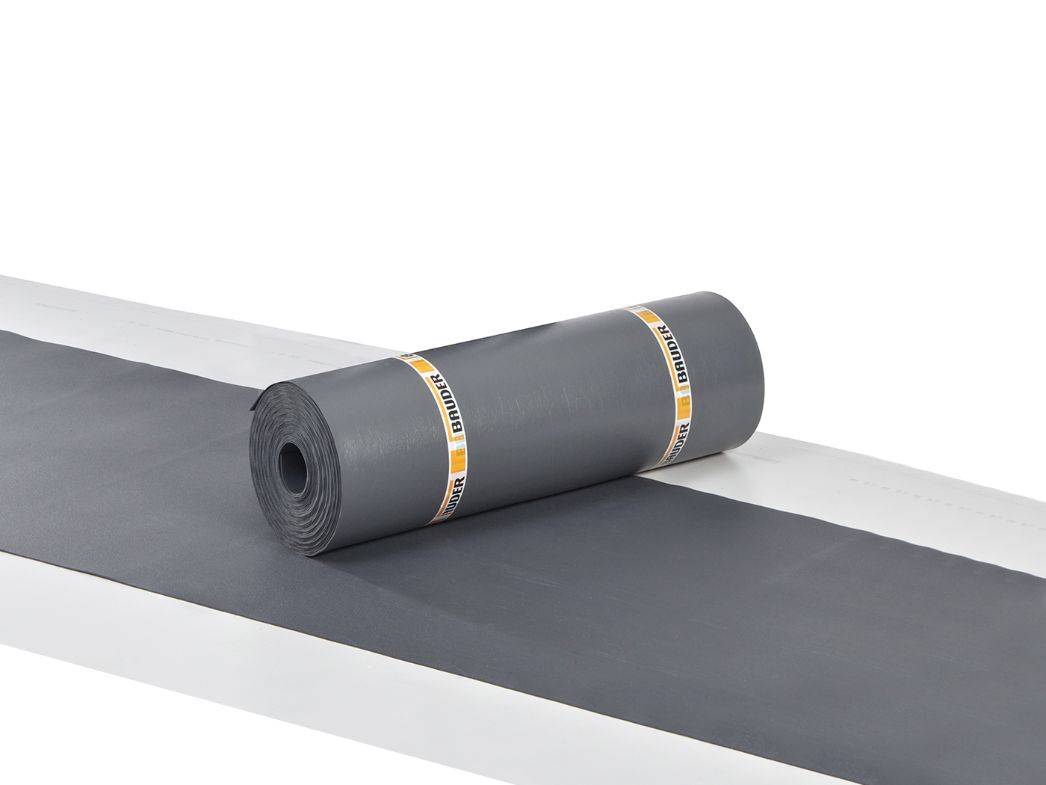

BauderPVC LSF Embossed Walkway Membrane - PVC-P Single Ply Walkway Membrane
Verified by manufacturer 2 days ago
Light grey RAL 7035
Light grey RAL 7035
CCPI System
Certificate type
BBA Agrément Certificate
Certificate type
EPD
Certificate type
Polyester reinforced PVC-P single ply walkway membrane; reduces the potential for slip when installed over the field sheet waterproofing.
Application
For reducing the potential for slip when installed over the field sheet waterproofing.
Description
Polyester reinforced PVC-P single ply walkway membrane.
General information
Color | Grey Guidance for specification option: Embossed walkway membrane available in Dark Grey (RAL 7012) and Light Grey (RAL 7035) Manufacturer guidanceAvailable in two grey colour options |
Finish | Embossed Anti-slip |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle Guidance for specification option: Roll. |
Length | 20000 mm Guidance for specification option: (-0/+5%) |
Width | 750 mm Guidance for specification option: (-0.5/+1%) |
Height | 2.2 mm Guidance for specification option: Nominal thickness including profile |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | J42/485 Membrane walkway |
SKU Code | 60030075 |
Specification data - Membrane walkways
Classification data | |
Performance characteristics | To EN 1850-2, no visible defects. To EN 1848-2, straightness <30 mm. To EN 1848-2, flatness <10 mm. Manufacturer guidanceSee below for further characteristics. |
Environmental performance requirements | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard, |
Material | |
Reinforcement | Synthetic reinforced polyester. |
Finish | Checker plate. |
Width (minimum) | 750 mm. Guidance for specification option: -0.5/+1%. |
Thickness (minimum) | 2.2 mm. |
Colour | Top: light grey RAL 7035. Bottom: black. |
Roll length | To EN 1848-2, 20 m. Guidance for specification option: -0/+5%. |
Mass per unit area | To EN 1849-2, >2.2 kg/m². |
Reaction to fire | To EN 13501-1, Class E. |
Tensile strength | To EN 12311-2 A, longitudinal/ transverse: ≥800 N/50mm. |
Elongation | To EN 12311-2 A, longitudinal/ transverse: ≥19%. |
Impact resistance | To EN 12691, hard surface: ≥600 mm; soft surface: ≥900 mm. |
Static load resistance | To EN 12730, hard surface: ≥20 kg; soft surface: ≥20 kg. |
Dimensional stability | To EN 1107-2, ≤0.3%. |
Sustainability data
Material | Polyvinyl chloride (PVC) |
Product certifications
Product certifications
Certification type
CCPI System
Bauder Thermofol CCPI
BBA Agrément Certificate
Certificate: Thermofol Membranes 06/4354
EPD
Environmental Product Declaration - Bauder Thermofol
Literature

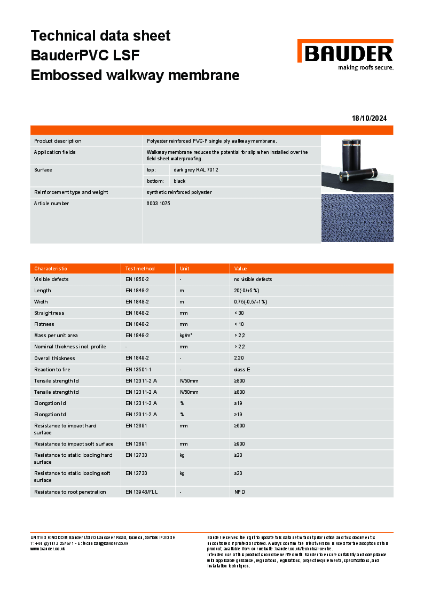

BauderPVC LSF Embossed walkway membrane (dark grey) - Technical Datasheet

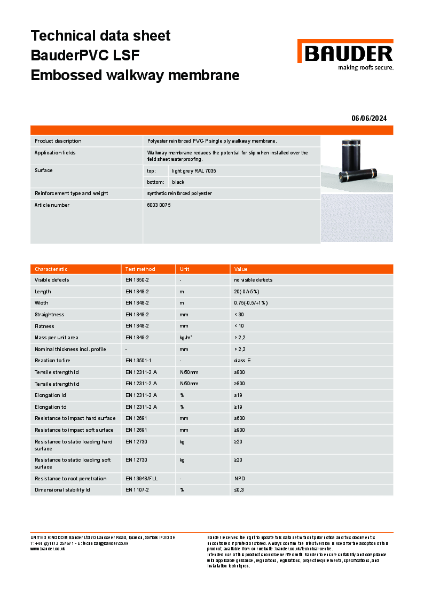

BauderPVC LSF Embossed walkway membrane (light grey) - Technical Data Sheet
