Compare variants
Summary

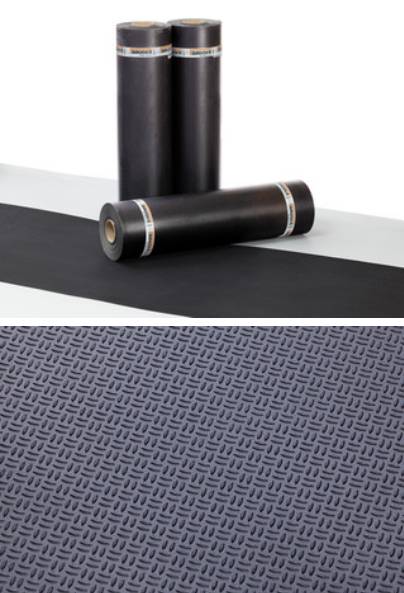

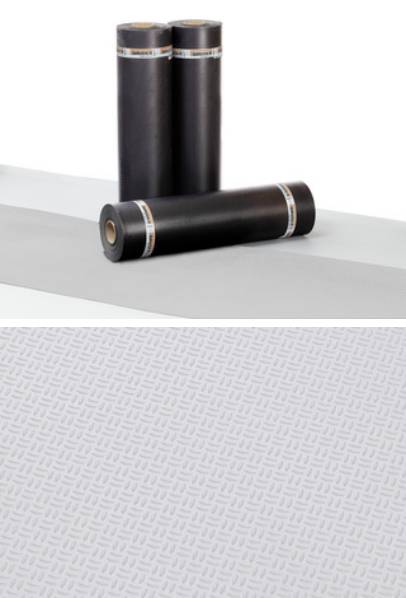

Polyester reinforced PVC-P single ply walkway membrane; reduces the potential for slip when installed over the field sheet waterproofing.
Polyester reinforced PVC-P single ply walkway membrane; reduces the potential for slip when installed over the field sheet waterproofing.
Application
For reducing the potential for slip when installed over the field sheet waterproofing.
For reducing the potential for slip when installed over the field sheet waterproofing.
Description
Polyester reinforced PVC-P single ply walkway membrane.
Polyester reinforced PVC-P single ply walkway membrane.
Product certifications
Color
Grey
Grey
Finish
Embossed, Anti-slip
Embossed, Anti-slip
Material
Polyvinyl chloride (PVC)
Polyvinyl chloride (PVC)
Shape
Rectangle
Rectangle
Length
20000 mm
20000 mm
Width
750 mm
750 mm
Height
2.2 mm
2.2 mm
SKU Code
60030075
60031075
Specification
Classification data
Performance characteristics
To EN 1850-2, no visible defects.
To EN 1848-2, straightness <30 mm.
To EN 1848-2, flatness <10 mm.
To EN 1850-2, no visible defects.
To EN 1848-2, straightness <30 mm.
To EN 1848-2, flatness <10 mm.
Environmental performance requirements
-
-
Recycled content
Manufacturer's standard,
Manufacturer's standard,
Material
-
-
Reinforcement
Synthetic reinforced polyester.
Synthetic reinforced polyester.
Finish
Checker plate.
Checker plate.
Width (minimum)
750 mm.
750 mm.
Thickness (minimum)
2.2 mm.
2.2 mm.
Colour
Top: light grey RAL 7035.
Bottom: black.
-
Colour
-
Top: dark grey RAL 7012.
Bottom: black.
Additional properties
Roll length
To EN 1848-2, 20 m.
To EN 1848-2, 20 m.
Mass per unit area
To EN 1849-2, >2.2 kg/m².
To EN 1849-2, >2.2 kg/m².
Reaction to fire
To EN 13501-1, Class E.
To EN 13501-1, Class E.
Tensile strength
To EN 12311-2 A, longitudinal/ transverse: ≥800 N/50mm.
To EN 12311-2 A, longitudinal/ transverse: ≥800 N/50mm.
Elongation
To EN 12311-2 A, longitudinal/ transverse: ≥19%.
To EN 12311-2 A, longitudinal/ transverse: ≥19%.
Impact resistance
To EN 12691, hard surface: ≥600 mm; soft surface: ≥900 mm.
To EN 12691, hard surface: ≥600 mm; soft surface: ≥900 mm.
Static load resistance
To EN 12730, hard surface: ≥20 kg; soft surface: ≥20 kg.
To EN 12730, hard surface: ≥20 kg; soft surface: ≥20 kg.
Dimensional stability
To EN 1107-2, ≤0.3%.
To EN 1107-2, ≤0.3%.
Sustainability data
Material
Polyvinyl chloride (PVC)
Polyvinyl chloride (PVC)
