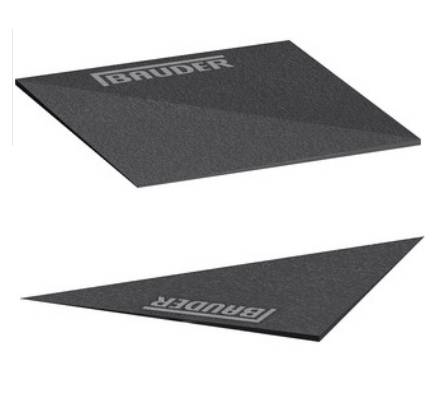

BauderPIR FA G16 Foil-Faced Tapered Insulation

Name: BauderPIR FA G16 Foil-Faced Tapered Insulation
Brand: Bauder Ltd
SKU: 32BptvJo2eZSsgGxEwm4wj

Verified by manufacturer today

Bauder Ltd

Product certifications:

EPD
Certificate type

Polyisocyanurate (PIR) insulation board with aluminium foil facing on both sides.

Jump to:

Request BIM

+44 (0)1473 257671 Website

Application

Thermal insulation with a low thermal conductivity to provide falls on a roof, for use within Bauder warm roof systems.

Description

Rigid polyurethane foam board faced on both sides with aluminium foil. The top facing features a number and arrow to indicate board size and direction of fall, and also has a printed grid pattern to aid cutting on site.

Only to be used as part of a full Bauder Waterproofing System.

General information

Color	Black
Finish	Foil
Material	Polyisocyanurate (PIR)
Shape	Square
Length	1200 mm
Width	1200 mm
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	J42/27 Thermal insulation J41/26 Thermal insulation J31/26 Thermal insulation J31/333 Rigid urethane foam insulation J41/430 Warm deck roof insulation J41/420 Rigid urethane foam insulation J42/420 Rigid urethane foam insulation

Specification data - Polyisocyanurate (PIR) foam boards

Classification data
Standard	To BS EN 13165.
Third-party certification	EPD-IVP-20160147-IBE1-EN.
Fire performance	To EN 13501-1: Class E. (B2 according to DIN 4102–1).
Thermal conductivity (maximum)	0.022 W/m·K.
Water permeability	To DIN EN 12087: 3% (maximum).
Compressive strength at 10% deformation	≥0.12 N/mm².
Cross section	Tapered.
Thickness (nominal)	1 = 30/50 mm. 2 = 50/70 mm. 3 = 70/90 mm. 4 = 90/110 mm. 5 = 110/130 mm. 6 = 130/150 mm. 7 = 150/170 mm. 8 = 170/190 mm.
Face size (length x width)	1200 x 1200 mm.
Density	30 kg/m³ (minimum).
Facing	Foil.
Edges	Square.
Accessories	BauderPIR KFS G16 tapered valley infills (7200 1610). Guidance for specification option: Tapered EPP rigid foam ridge infill board manufactured with a slope of 1.6% to be used where required to compete the BauderPIR FA G16 tapered insulation scheme. Used at 90 degree junctions on the roof to create a fall in two directions. Please refer to the BauderPIR FA G16 tapered insulation scheme for number of boards required and also location of the ridge infills. BauderPIR GFS G16 tapered ridge infills (7200 1611). Guidance for specification option: Tapered EPP rigid foam valley infill board manufactured with a slope of 1.6% to be used where required to compete the BauderPIR FA G16 tapered insulation scheme. Used at 90° junctions on the roof to create a fall in one direction. Please refer to the BauderPIR FA G16 tapered insulation scheme for number of boards required and also location of the valley infills. Manufacturer guidance Consult manufacturer' literature for technical details.

Sustainability data

Country of product manufacture	Germany
Material	Polyisocyanurate (PIR)
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 13.8 Manufacturer guidance Please refer to EPD. Value guidance: A1-A3 at 120mm
