BauderGLAS Flatboard Insulation
Verified by manufacturer 10 days ago
BauderGLAS Ready T3+
BauderGLAS Ready T3+
EPD
Certificate type
A range of cellular glass insulation boards.
Application

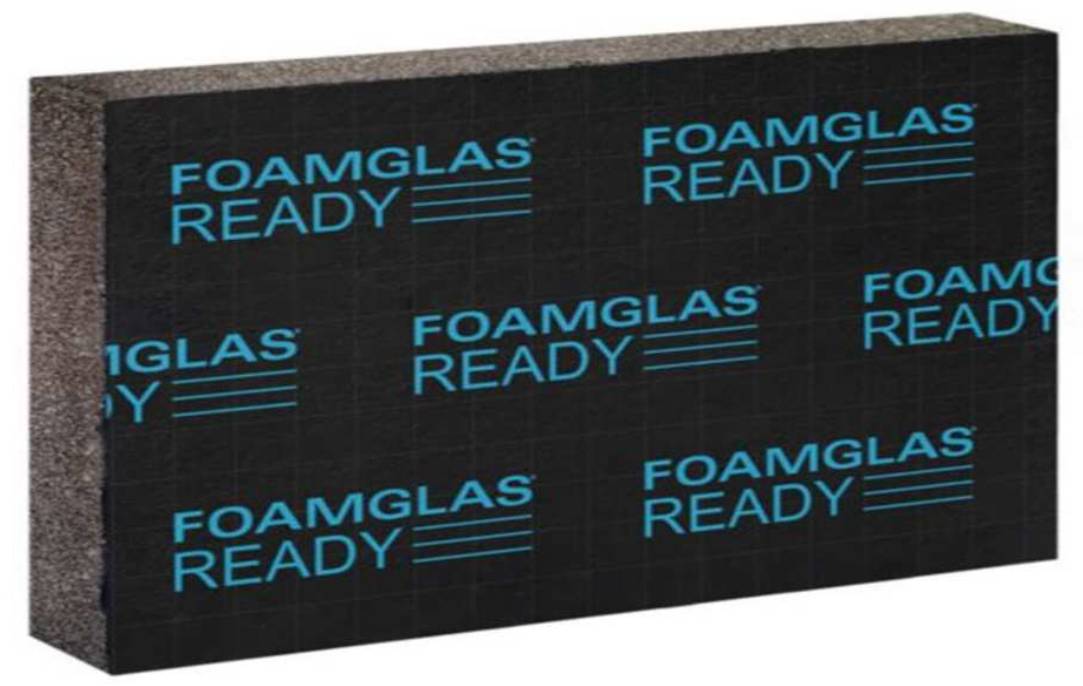

- BauderGLAS Ready T3+ - to be used as a top layer for flatboard insulation on a concrete, plywood or timber deck when using a torch-on membrane as the underlayer.

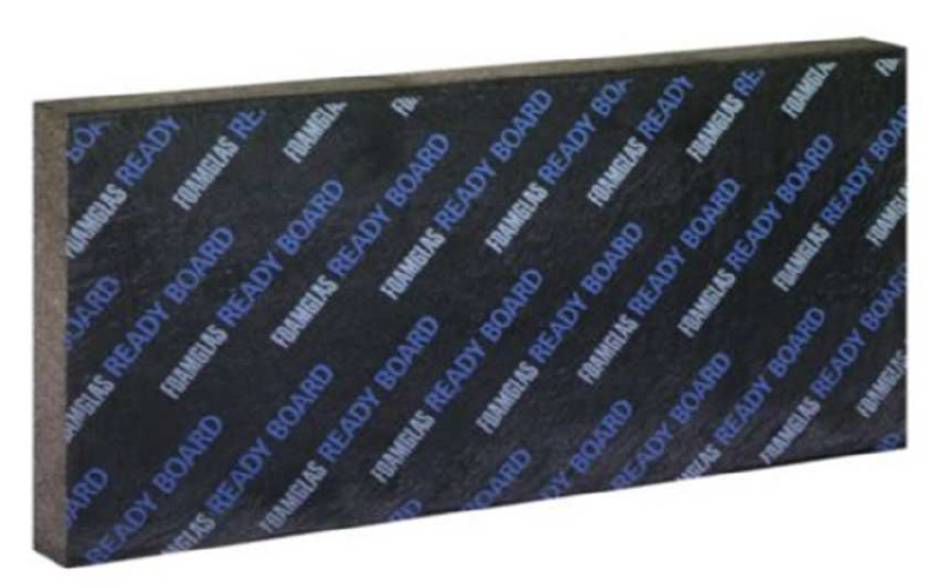

- BauderGLAS Ready Board T3+ is a bitumen faced insulation to be used as a top layer for flatboard insulation on a metal deck when using a torch-on membrane as the underlayer.
- BauderGLAS Roof Block G1 T3+ - to be used as a top layer for flatboard insulation on a concrete, plywood or timber deck when using a self-adhesive membrane as the underlayer.
- BauderGLAS Roof Board G2 T3+ - to be used as a base layer for tapered or flatboard insulation on a metal deck. Will also be used as the top layer in a flatboard insulation build-up when using a self-adhesive membrane as the underlayer on a metal deck.
- BauderGLAS Slab T3+ - to be used as a base layer for flatboard and tapered insulation on a concrete, plywood or timber deck when the insulation is required in more than one layer.
Description
A range of cellular glass insulation for flatboard insulation build-ups.
BauderGLAS is manufactured from specially graded recycled glass (≥ 60%) and natural raw materials which are available in abundant supply. The insulation is totally inorganic and contains no ozone depleting propellants, flame resistant additives or binders. Without VOC or other volatile substances.
The reaction to fire performance is Class E due to the 0.5mm top facing layer, the cellular glass core is Class A1.
Only to be used as part of a full Bauder Waterproofing System.
General information
Color | Black |
Material | Glass Manufacturer guidanceCellular glass. |
Shape | Rectangle |
Length | 600 mm 1200 mm |
Width | 450 mm 600 mm |
Height | 50 mm 60 mm 70 mm 80 mm 90 mm |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | J42/27 Thermal insulation J42/430 Warm deck roof insulation J41/26 Thermal insulation J41/430 Warm deck roof insulation J31/26 Thermal insulation J31/337 Cellular glass insulation |
Specification data - Cellular glass insulation boards
Standard | To EN 13167. |
Reaction to fire | Core material complying with Euroclass A1. With facings Euroclass E. |
Third-party product certification | Environmental Product Declaration (EPD).Guidance for specification option: EPD-PCE-20150042-IBA1-DE. |
Thermal conductivity (maximum) | 0.036 W/m·K. |
Thickness | 50 mm.60 mm.70 mm.80 mm.90 mm.100 mm.110 mm.120 mm.130 mm.140 mm.150 mm.160 mm.170 mm.180 mm.190 mm.200 mm. |
Compressive strength (minimum) | ≥ 500 kPa. |
Density | 100 kg/m³. |
Recycled content | ≥ 60%. |
Facing | Bitumen. |
Edges | Square. |
BendingStrength | ≥ 450 kPa. |
TensileStrength | ≥ 150 kPa. |
Width | 450 mm. |
Length | 600 mm. |
Sustainability data
Country of product manufacture | Belgium |
Material | Glass Manufacturer guidanceCellular glass. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.45 kg CO₂ eq/kg Manufacturer guidancePlease refer to EPD. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Specially graded recycled glass (≥ 60%). |
Third party certifications
Third party certifications
EPD
Environmental Product Declaration - FOAMGLAS - EPD-PCE-20200300-IBB1-EN
