BauderGLAS Inverted Upstand Insulation

Verified by manufacturer 5 days ago

Bauder Ltd

Cellular glass upstand insulation boards for inverted roof applications.

Jump to:
+44 (0)1473 257671 Website

Application

Provides an impact and weather resistant non-combustible thermal insulation for use on low level inverted roof upstands including to, and across compartment walls. This product is specifically for use at upstands where BauderGLAS Inverted Insulation is used on the main flat area.

Surface finish:

  • Top: Cementitious pre-applied inorganic coating.
  • Core and bottom: Cellular glass.

Description

Cellular Glass with a pre-applied inorganic coating on the topside. Both the core material and the coating have an A1 rated reaction to fire classification and are therefore non-combustible.

General information

Color

Grey

Material

Cellular glass

Shape

Rectangle

Length

600 mm

Width

450 mm

Height

100 mm

Warranty description

-

Manufacturer guidance

A range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

This product should be used in conjunction with a full Bauder Waterproofing System.

Uniclass

Pr_25_71_52_13 Cellular glass insulationPrimary

CAWS

J31/26 Thermal insulation

J31/337 Cellular glass insulation

Specification data - Cellular glass insulation

Classification data

Standard

To EN 13167.

Reaction to fire

To EN 13501-1, Euroclass A1 (core material).

Third-party product certification

Environmental Product Declaration (EPD), BRE Green Guide generic product rating A+.

Guidance for specification option:

EPD-PCE-20150042-IBA1-DE.

Thermal conductivity (maximum)

0.038 W/m·K.

Guidance for specification option:

Manufacturer's declared value.

Thickness

100 mm.

Compressive strength (minimum)

≥ 400 kPa.

Density

100 kg/m³.

Facing

Pre-applied inorganic coating on the topside.

Edges

Square.

Environmental information

-

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

≥ 60%.

BendingStrength

≥ 400 kPa.

TensileStrength

≥ 100 kPa.

Width

450 mm.

Length

600 mm.

Sustainability data

Country of product manufacture

Belgium

Material

Cellular glass

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

Specially graded recycled glass (≥ 60%).

Literature

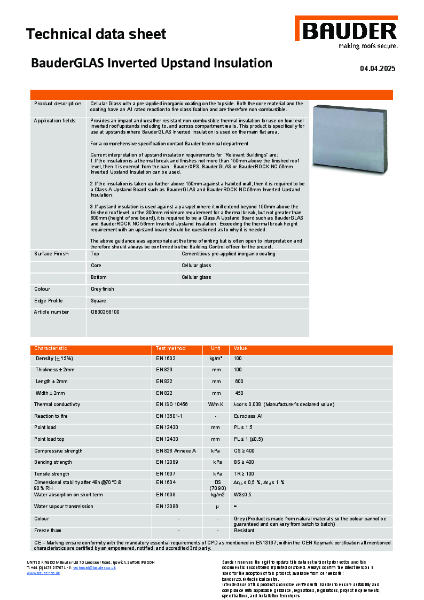

BauderGLAS Inverted Upstand Insulation - Technical Data Sheet

BauderGLAS Inverted Upstand Insulation - Technical Data Sheet
