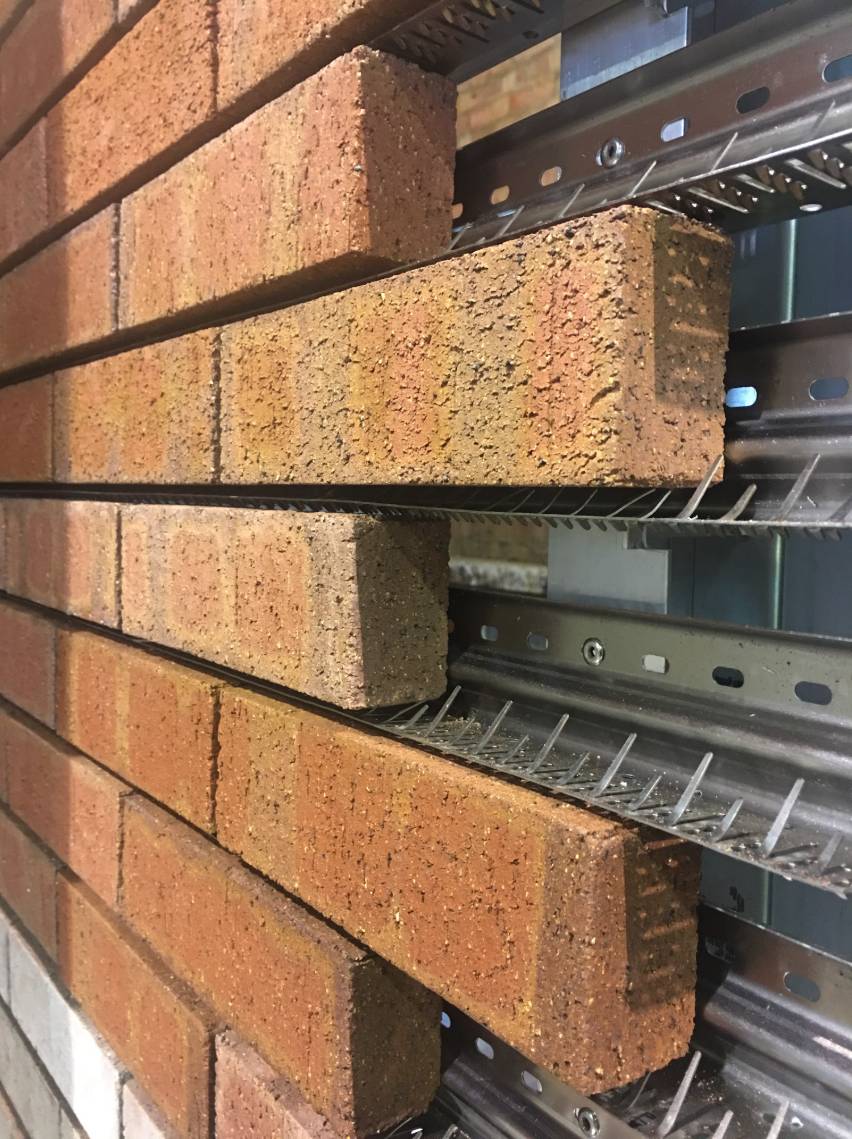

Barracuda Brick Slip System
Verified by manufacturer 14 hours ago
UL Certified
Certificate type
BBA Agrément Certificate
Certificate type
Reaction to Fire Classification
Certificate type
Barracuda® is a UL Certified, mechanically-fixed brick slip façade system CWCT-tested in an unmortared state, delivering secure mechanical engagement and reliable performance.
Application
The Barracuda® Brick Slip System is a UL Certified, mechanically-fixed, lightweight Rainscreen Cladding solution designed to replicate high-quality traditional brickwork while providing the speed, accuracy, and assured performance required for modern construction.
Description
Barracuda® is a UL Certified, mechanically-fixed, lightweight brick slip Rainscreen Cladding system engineered to replicate the appearance of traditional hand-laid brickwork while delivering the speed, accuracy, and performance expected from a modern façade solution.
The system combines precision-formed Stainless Steel carrier rails with high-quality cut bricks to create authentic brick aesthetics across a wide range of colours, textures, and bond patterns. Designers can specify portrait, landscape, soldier-course, stacked, or mixed orientations, making Barracuda® suitable for both contemporary and heritage-inspired façades.
As a fully drained and back-ventilated Rainscreen system, Barracuda® supports effective moisture management and long-term façade durability. Installation progresses from the base of the façade upward, enabling multiple elevation zones to be installed concurrently—significantly improving site productivity and reducing programme durations. Standardised head, sill, jamb, corner, and opening details form a ready-made detailing library, ensuring consistent interfaces while still accommodating bespoke architectural requirements where needed.
Barracuda® has been CWCT-tested in an unmortared state, confirming secure mechanical engagement and reliable performance without reliance on mortar for structural stability. The non-combustible Aluminium carrier components support A1/A2 compliant façade build-ups and integrate fully with DryKlad® Aluminium and Stainless Steel Brackets for complete system compatibility.
Features and Benefits
- Mechanically-fixed brick slips provide secure, long-term retention and structural stability.
- Lightweight construction reduces imposed loads and simplifies handling on site.
- Fully drained and back-ventilated design supports moisture control and building envelope longevity.
- Adjustable subframe accommodates substrate tolerances and enhances alignment accuracy.
- Significant installation time savings compared with traditional brickwork.
- Suitable for new-build, over-cladding, and refurbishment projects.
- Extensive brick slip options in colours, textures, and formats for design versatility.
- CWCT-tested for wind resistance, impact performance, and watertightness.
- Non-combustible Aluminium rails support A1/A2 system compliance for high-rise applications.
- Fully compatible with DryKlad® Aluminium and Stainless Steel Brackets for integrated façade solutions.
Components
Mechanical System Components
- Barracuda® Starter Rail
- Barracuda® Intermediate Rail
- Barracuda® Top Rail
- Barracuda® Vertical Support Rails
- Barracuda® Horizontal Support Rails
- DryKlad® Aluminium Brackets
- DryKlad® Stainless Steel Brackets
- DryKlad® A2 Thermal Isolator Pad
- Stainless steel fixings and fasteners
Brick System Components
- Standard brick slips precision-cut from full-size bricks
- Half brick slips for coursing and detailing adjustments
- Corner brick slips cut from standard bricks to provide true returns
- Soldier course brick slips for vertical or decorative banding
- Perforated vent slips to maintain ventilation at required façade locations
General information
Color | Other |
Material | Brick |
Length | 215 mm |
Width | 40 mm |
Height | 65 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
SKU Code | DRKBAR |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Thermal insulation | Knauf Insulation Rocksilk Rainscreen Slab. Guidance for specification option: Available in 50–250 mm thicknesses. Consult manufacturer for details and insert requirements. |
Breather membrane | |
Material | Proctor Probreathe A2. |
Secondary support structure | Dryklad Framing. |
Cladding panels | |
Material | Standard brick cut to size. Guidance for specification option: Almost all brick types compliant with BS EN 771 are compatible with the Barracuda brick slip support system. Some brick types are however inherently very fragile when cut into typical brick slip thicknesses. The Barracuda brick slip support system is more tolerant of very fragile bricks because the Barracuda brick slip thickness is 40 mm. It is however important that the brick type intended for use with the Barracuda brick slip support system is confirmed by James & Taylor as being suitable for use with the Barracuda system. |
System accessories | Barracuda Setting Block, Vertical Rail Marking Square, Type 1, Vertical Rail Marking Square, Type 2 and Bottom Brick Installation Pliers. Guidance for specification option:
|
Reaction to fire | To EN 13501-1:2018, Class A1. |
Structure | Barracuda Rail, Type R1, Standard Barracuda Rail, Type R2, Bottom Barracuda Rail, Type R3, Top Barracuda Rail, Type R4, Top Barracuda L-Rail Barracuda T-Rail Manufacturer guidanceThe Barracuda Brick Slip Support System consists of the following principal components:
|
Fasteners | Bralo Rivet 01260004808 EJOT JT4-ZT-4-4.8x19 [without washer]. Guidance for specification option: Fasteners:
|
Mortar | CPI Euromix M1ANPM000 (or similar). |
Air gap | 38 mm minimum. |
Durability | Long term durability 60 years. |
Wind resistance | Serviceability: ±2400 pascals. Safety: ±3600 pascals. |
Watertightness | 600 pascals. |
Impact resistance | Soft and Hard Body Serviceability: Class 1 Serviceability. Soft and Hard Body Safety: Negligible Risk Safety. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | Austria |
Material | Brick |
Expected Life | 60 year |
Product certifications
Certification type
UL Certified
Barracuda Brick Slip System UL Certification
BBA Agrément Certificate
DryKlad® BBA Certificate

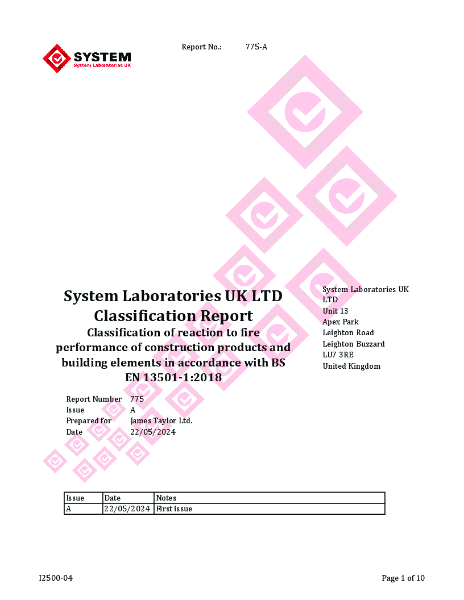

Reaction to Fire Classification
Barracuda Brick Slip
Literature
Literature type

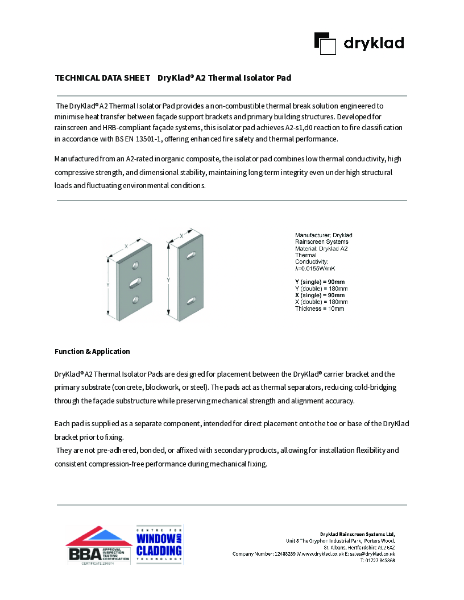

DryKlad A2 Thermal Isolator Pad Datasheet

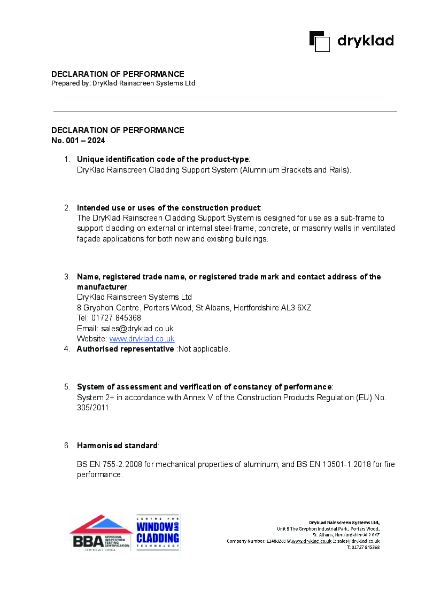

DryKlad DECLARATION OF PERFORMANCE

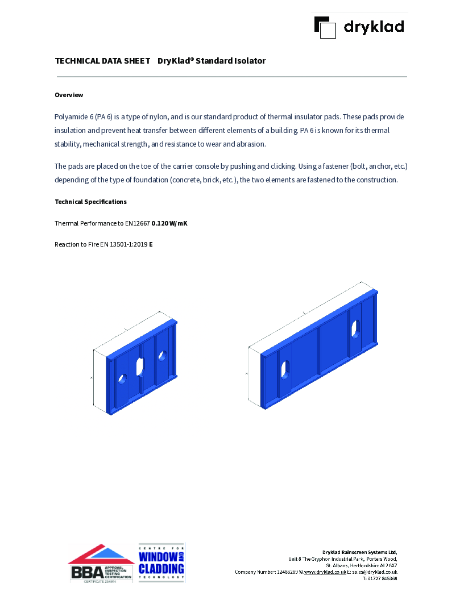

DryKlad Standard Isolator Datasheet

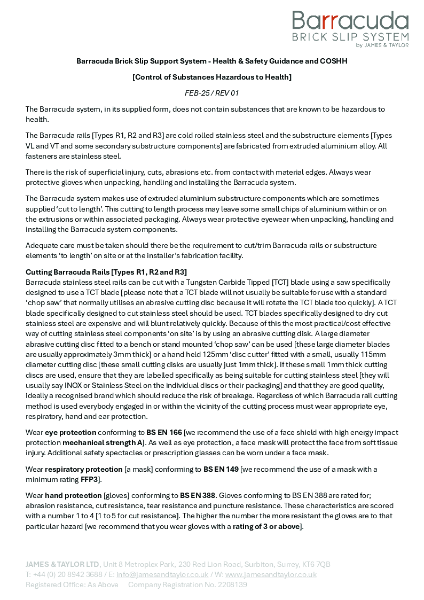

Health & Safety Guidance and COSHH

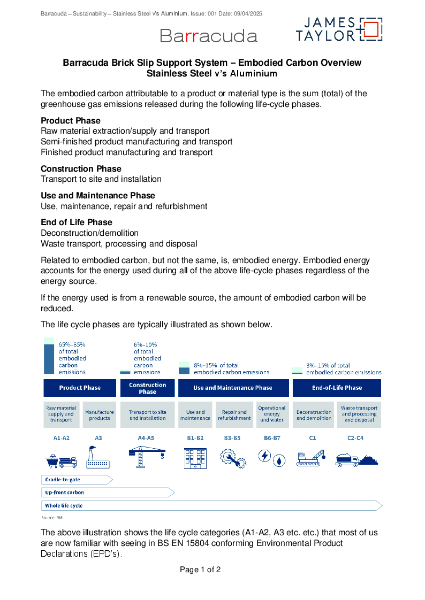

Embodied Carbon Overview
Barracuda Brickslip Brochure

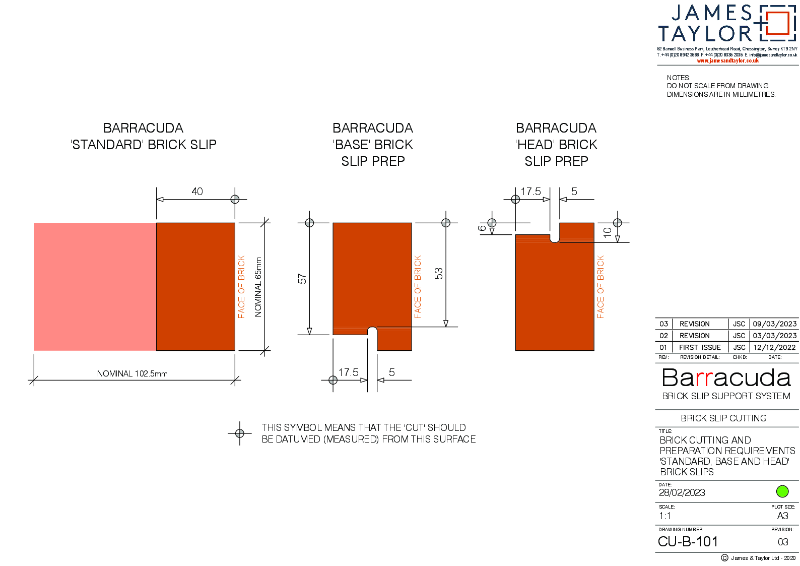

Barracuda Brick Cutting Details
