Verified by manufacturer 5 months ago
1800 mm high
QA Certificate
Certificate type
ISO 9001 Quality Management
Certificate type

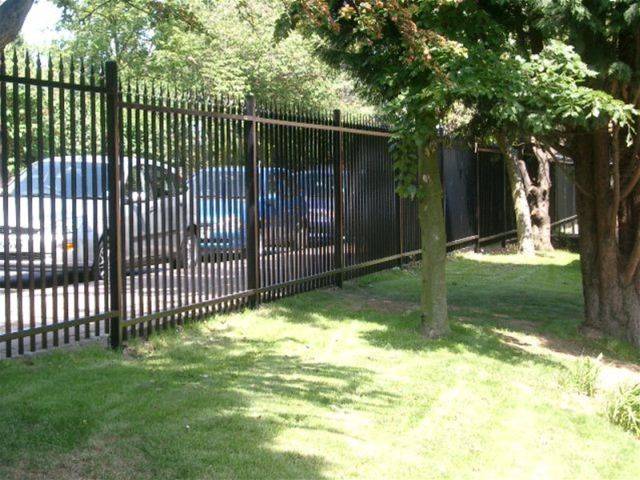

Vertical bar security-rated fencing with a traditional design.
Commercial developments; public spaces; religious grounds.
Vertical bar security-rated fencing which mimics traditional steel railing designs. Suitable for commercial properties, city schools, or applications requiring a minimalist contemporary fence certified to LPS 1175.
Features and benefits:
Color | Black Green Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | 3000 mm 2484 mm |
Height | 1800 mm 2000 mm 2500 mm 3000 mm |
Warranty description | 25 year Manufacturer guidanceJacksons' Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details. |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing |
Product range |
Standard | To LPS 1175 A1 (SR1). |
Posts | 60 x 60 x 2500 mm.Guidance for specification option: Post centres: 3000 mm. Rectangular hollow section (RHS) posts with anti-tamper fixings, with internal connectors and no visible bolts. |
Post foundations | Set in concrete.Guidance for specification option: Standard. Base-plated.Guidance for specification option: To bolt down onto concrete. Cranked. |
Rails | 60 x 40 mm.Guidance for specification option: Two rails. |
Panels | Attached to posts with concealed, tamper-proof connectors. |
Fence topping | Saxon finials. |
System accessories | None.Matching gates.Guidance for specification option: To be specified separately. |
Applied finish | Hot-dip-galvanized to BS EN 1461. Guidance for specification option: Standard. Galvanized and powder-coated, Black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, Green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, bespoke. Guidance for specification option: Special order, insert requirements (BS or RAL). Marine coat. Guidance for specification option: For installations within 500 m of saltwater or an estuary. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
