FumaCE Smoke Control Damper - Smoke Control System
Verified by manufacturer 1 day ago
The FumaCE is a concealed, CE-certified smoke damper which balances high performance, easy installation and a long service life
Application

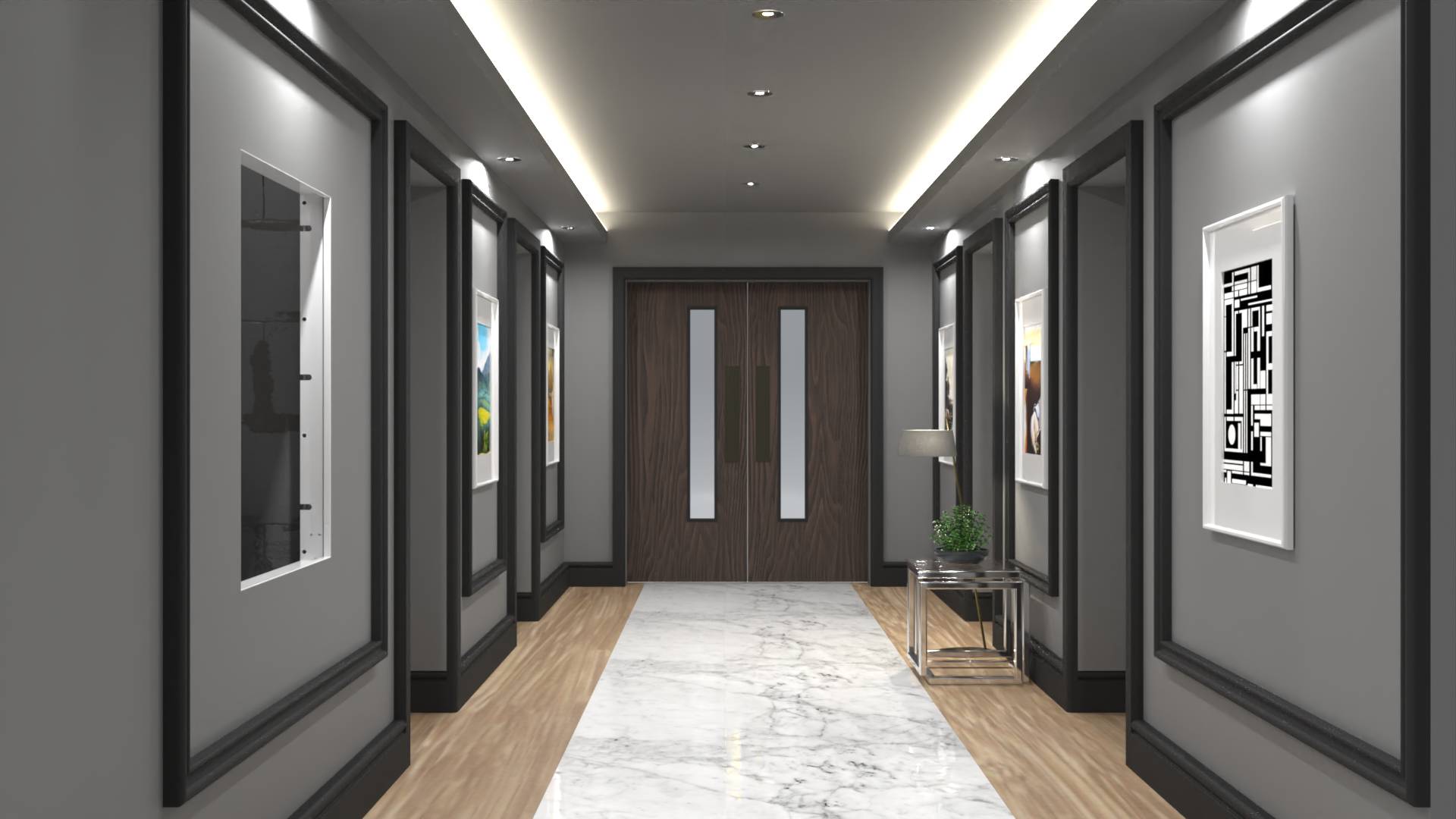

Whether high-rise residential or commercial offices, FumaCE is typically positioned in the hallways and corridors of the building, installed along with the other services.
Description

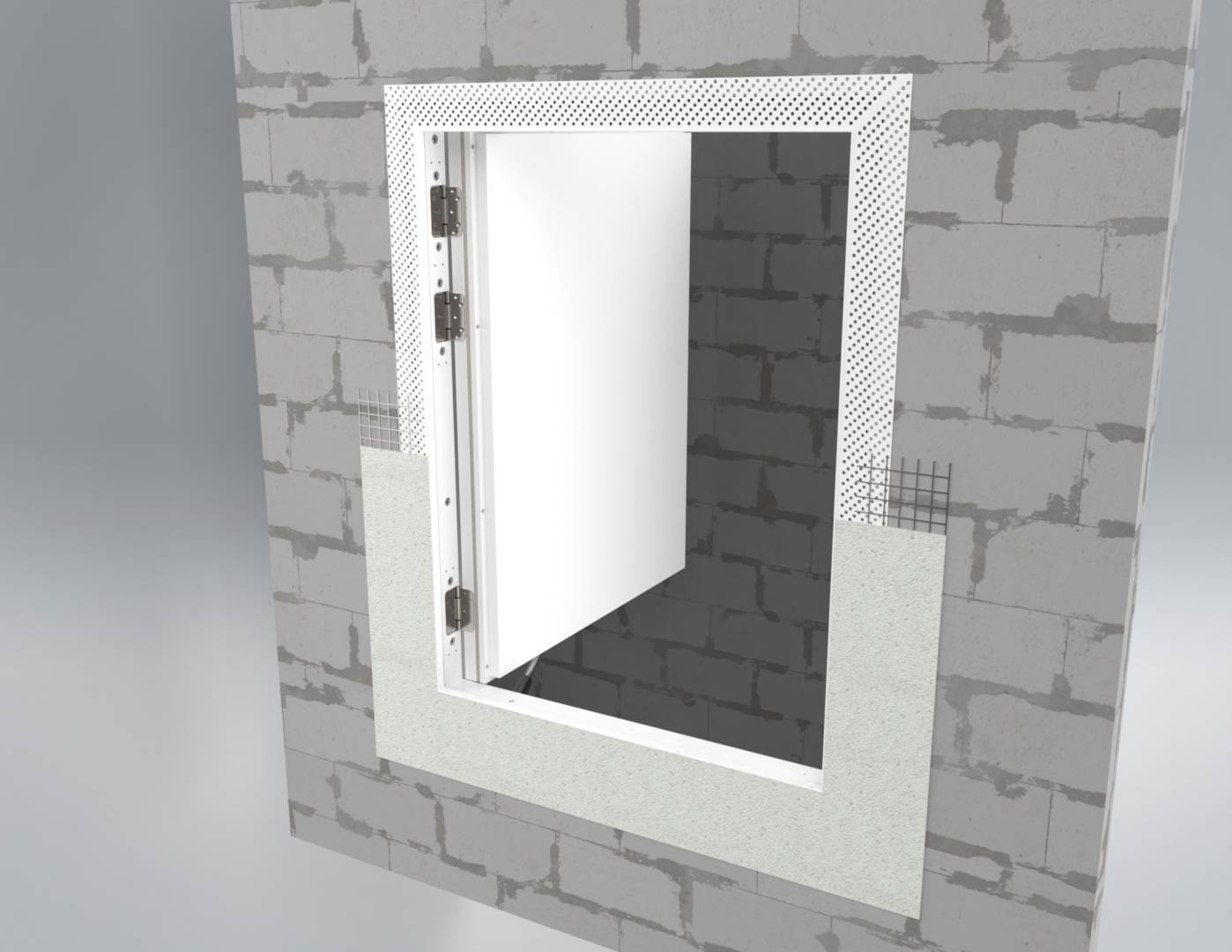

The FumaCE is tested to BS EN 1366-10 and certified to BS EN 12101-8. It is supplied on site pre-hung, ready to install. Simply fit in the opening and link to the smoke control system.
Features
- Concealed frame
- Standard rigid construction smoke shaft OR a compatible shaft successfully tested to EN 1366-8 at a density of 525kg/m3 or greater.
- External tape and joint / plaster
- Spindle drive - 10k cycle tested
- Maintenance-free butt hinges
- RAL colour powder coated metal door
General information
Color | White Manufacturer guidanceAny standard RAL colour available. |
Finish | Textured Guidance for specification option: For use when overpainting or wallpapering on site. |
Material | Steel Manufacturer guidanceFrame and doorset. |
Shape | Rectangle Manufacturer guidanceWith GEZE Slimchain/ Powerchain. |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year |
Material | Steel Manufacturer guidanceFrame and doorset. |
Uniclass | |
CAWS | L20/480 Doorsets L20/630 Hatches L20/55 Doorsets |
Specification data - Carbon steel doorsets
Configuration | Single leaf. |
Doorset size | Manufacturer guidanceWhere a structural opening size is specified, tolerances will be added by the manufacturer. Dependent on fire rating chosen, the maximum height available can vary - consult manufacturer for details. |
Performance | |
Fire resistance | |
Integrity | FD60.FD120.Unrated. |
Acoustic performance | 38 dB. |
Frame | |
Material | Folded mild steel. |
Perimeter seals or inserts | Fire and smoke seal. |
Finish | |
Coating | Polyester powder coated. |
Texture | Smooth.Guidance for specification option: Pre-finished. Textured.Guidance for specification option: For use when overpainting or wallpapering on site. |
Colour | Standard RAL. |
Door leaf | |
Thickness | 44 mm. |
Core | Rockwool. |
Material | Folded 1.2mm Zintec, insulated with Rockwool. |
Perimeter seals | Smoke seal. |
Finish | |
Coating | Polyester powder coated to BS EN 12206-1. |
Texture | SmoothGuidance for specification option: Pre-finished. TexturedGuidance for specification option: For use when overpainting or wallpapering on site. |
External colour | Standard RALWallpaper colour |
Hardware | Quick-release pivotGeze actuator |
Product Reference | Fuma+ (AOV - Automatic Opening Smoke Vent) |
Air permeability | Class 4 (600 Pa). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel Manufacturer guidanceFrame and doorset. |
Recyclability | Manufacturer guidanceMetal 85% other 75%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
