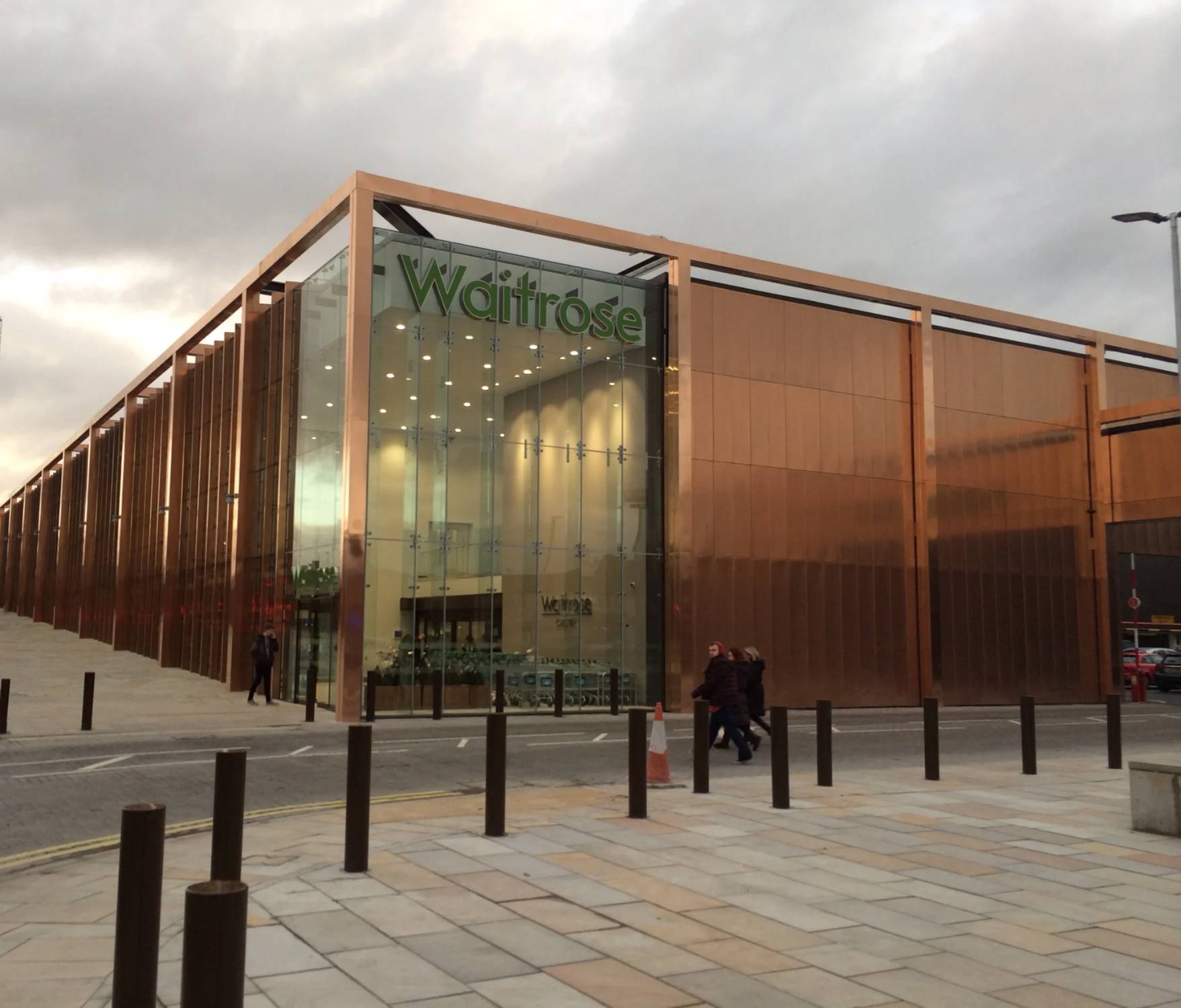

Aurubis Copper Intalok® Rainscreen Cladding

Name: Aurubis Copper Intalok® Rainscreen Cladding
Brand: Metal Solutions Limited
SKU: aicHnbGVPnk6ghEzKWWXoy

Verified by manufacturer today

Metal Solutions Limited

Product certifications:

REACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type

Interlocking reveal panel rainscreen system.

Jump to:

Request BIM

+44 (0)1204 491800 Website

Application

For use in Rainscreen Facade Applications.

Description

Aurubis Nordic Copper Intalok® ® Interlocking Reveal Panel for use in Rainscreen Facade Applications.

The Intalok ® Panel System is a contemporary cladding solution engineered for both style and durability. Featuring flat panels with distinctive recessed joints, this system creates a sleek, linear appearance ideal for modern architecture.

Designed with a concealed fixing method, the Interlock Panel System delivers a flawless finish while ensuring exceptional wind resistance and long-term stability. Its versatility allows installation in horizontal, vertical, or diagonal orientations, making it suitable for façades, soffits, and interior applications.

Features and benefits:

Modern flat-panel aesthetic with sharp recessed joints.
Concealed fixings for a seamless appearance.
Flexible installation: vertical, horizontal, or diagonal.
Lightweight, durable, and easy to install.
Available in multiple materials, finishes, and profiles.
Suitable for new builds and refurbishment projects.

Typical system build up:

Interior Finish
Vapour Barrier
Insulation
Breather Membrane
Ventilated Air Space min 50 mm
Helping hands Bracket and rail
Breather Membrane
Standing seam panels.

General information

Color	Copper Brown Bronze Green Blue Turquoise Show more
Finish	Copper Antiqued
Material	Copper
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary Ss_25_20_70_65 Pressure-equalized rainscreen cladding systems
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Classification data
Thermal insulation	- Manufacturer guidance Rainscreen cladding does not have any specific requirement with regard to the insulation. Insulation must be structurally self-supporting or supported when installed so that it will not sag and form unvented voids or cause loss of thermal efficiency. An insulation used as a directly supporting substrate must have a minimum compression strength of 50 kPa (0.5 kg/cm2) with deformation limited to a maximum of 10%. The insulation must also be dimensionally stable up to 100C. All insulation must be kept dry and protected prior to metal covering being laid.
Breather membrane	-
Material	ISO-Mat Pro® underlay. Guidance for specification option: Recommended for wall or cold roof applications. Envirotect Class B-s1,d0 fire membrane. Guidance for specification option: Can be used when a non-combustible option is required. Manufacturer guidance The breather membrane must comply with EN 13859-2 for walls and must also be CE compliant. The breather membrane must be fully supported, lapped and sealed and then further sealed to all surrounding abutments and surface penetrations. A breather membrane is commonly used as a separating underlay, when the metal is being used in conjunction with a metal substrate, to reduce noise.
Secondary support structure	As design.
Cavity fire barriers	-
Horizontal	To BS 9991.
Vertical	To BS 9991.
Cladding panels	-
Material	1.0 mm Phosphorous Deoxidised Copper (DHP).
Panel joints	Longitudinal joints: Shadow gap with panel closed ends, refer to drawings.
System accessories	- Manufacturer guidance All associated flashings to match can be fabricated from coil by Metal Solutions Ltd as per typical details and industry standards. Associated rainwater goods in various sizes and profiles are available in the same material.
System completion	Operation and maintenance manual
Orientation	Diagonal. Horizontal. Vertical.
Colour/ Finish:	Nordic Standard – DHP – half hard CW024A. Guidance for specification option: Standard Nordic Antique – DHP – soft H040. Guidance for specification option: Standard Nordic Brown Light – DHP with oxide layer. Nordic Brown – DHP with oxide layer. Nordic Brass – CuZn15. Nordic Brass Weathered – CuZn15 with oxide layer. Nordic Bronze – CuSn4. Nordic Royal – CuAl5Zn5Sn1 Aluminium Bronze. Nordic Green Traditional – DHP with oxide layer & patina. Nordic Blue – DHP with oxide layer & patina. Nordic Turquoise – DHP with oxide layer & patina. Nordic Blue Living 1 – DHP with oxide layer & patina. Nordic Blue Living 2 – DHP with oxide layer & patina. Nordic Blue Living 3 – DHP with oxide layer & patina. Nordic Green Living1 – DHP with oxide layer & patina. Nordic Green Living 2 – DHP with oxide layer & patina.
Size and profile	- Manufacturer guidance 300 mm wide panels, narrower widths are also available. Panel lengths are often limited to 6 metres long, although longer lengths may be considered. Variable width possible. Consult manufacturer and insert requirements.
Weight	1.00 mm material weight 9.0 kg/m². Guidance for specification option: System weight dependent on seam centres.
Fire classification	Reaction to fire: A1 To EN 13501-5. External Fire Performance : Class BROOF (t1-4).
Air and vapour control layer	- Manufacturer guidance Vapour Barrier membranes must comply with EN 13859-2 for walls and must also be CE compliant. For fully supported metal cladding the VB must have a minimum water vapour resistance of 4000MNs/g and comply to BS SO 12572. The VB must have a resistance against a supported column of water 2M high for a period of 15 mins to comply with DIN EN 20811. All cladding must have a Vapour Barrier regardless of being ventilated, unventilated cold or warm in design. The VB must be positioned behind the insulation and on the warm side of the construction.
Fasteners	Timber - stainless screw, SPT-R-S-4.3x20-RS. Metal - stainless screw, SX2-D9-4.8x22. Metal - stainless screw, DS3-SS-SF-4.8x16. Manufacturer guidance Fixings to suit substrate

Sustainability data

Contains Red List materials	No
Country of material origin	Finland
Country of product manufacture	United Kingdom
Material	Copper
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 4.9 (kg CO₂ eq/kg) Declared unit : 4.9
Recyclability	99%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	97 %
Expected Life	100 year
