Aura Block Paving

Verified by manufacturer 4 months ago

60 mm single size packs

Brett Landscaping Variant:

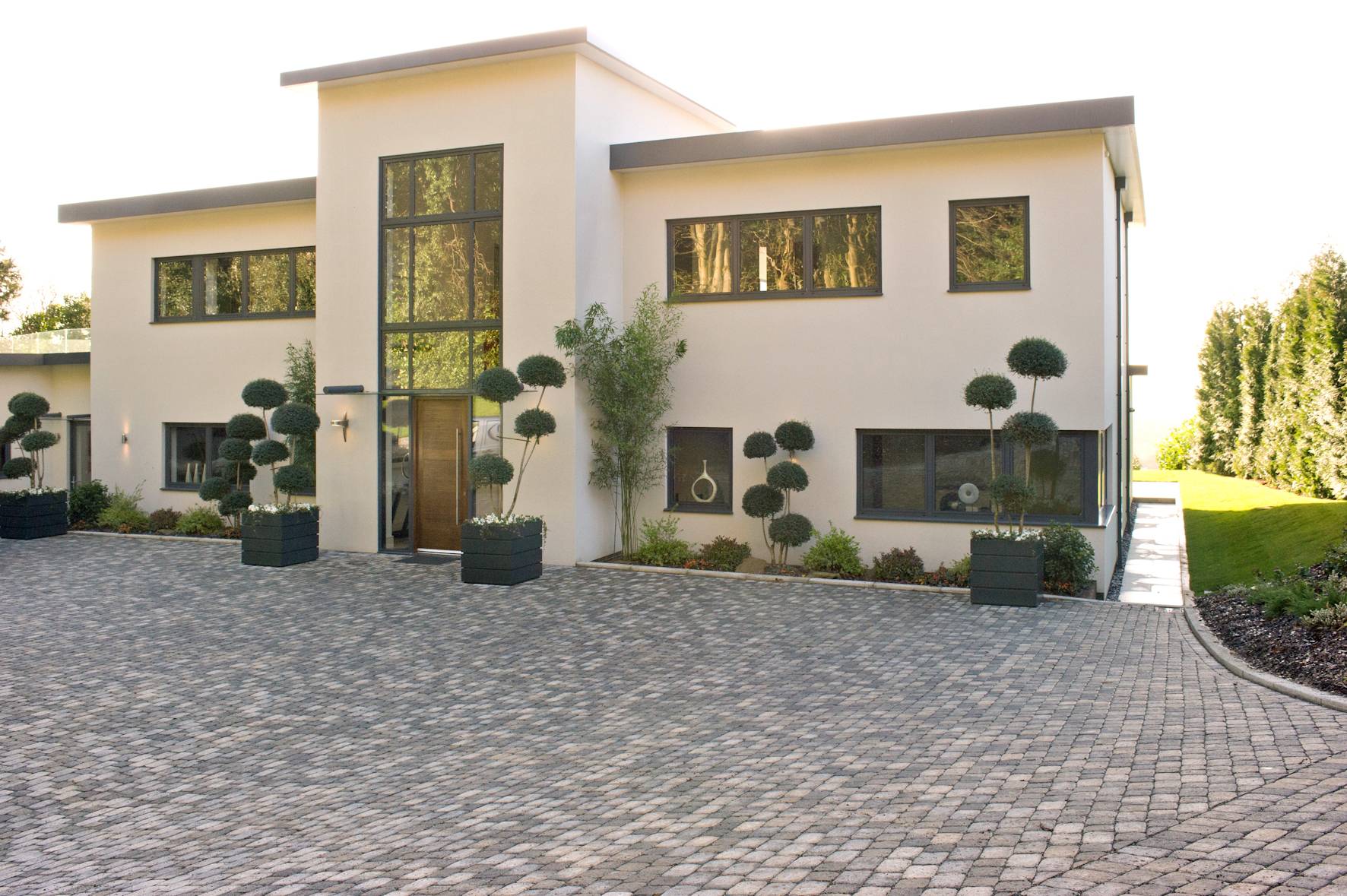

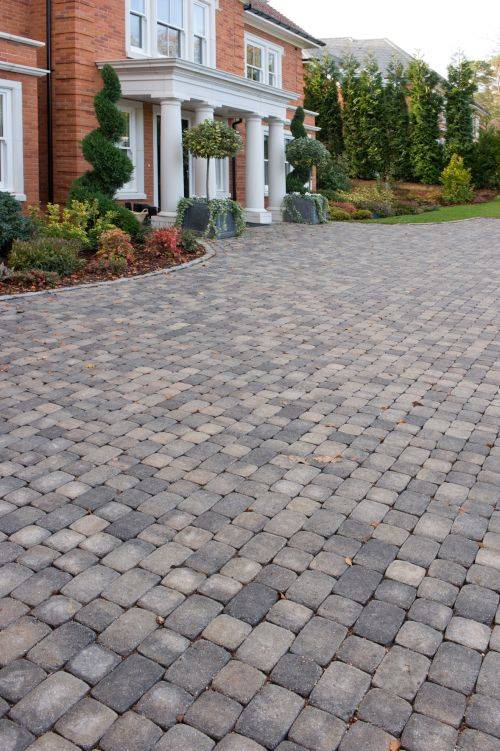

Brett Aura is a tumbled-surface concrete block paver, designed to create the appearance of a riven natural granite sett, reminiscent of a historic cobbled street.

Jump to:
+44 (0)345 60 80 570 Website

Application

Domestic and lightly-loaded commercial use; hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, emergency access routes, roof coverings. Installation standard: BS 7533-3:2005 + A1:2009.

Description

Aura block paving is manufactured using china clay to produce a gentle surface sparkle and can be integrated with a matching circle pack to create added interest in the paving design.


Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information

Color

Beige

Guidance for specification option:

With bronze fleck.

Silver

Material

Concrete

Shape

Square

Rectangle

Circle

Length

114 mm

171 mm

Width

114 mm

Height

60 mm

Warranty description

-

Manufacturer guidance

Statutory Rights - Technical Support.

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/113 Conventional concrete block paving overlay

Q25/335 Concrete setts

Specification data - Concrete paving blocks

Standard

To BS EN 1338: 2003.

Physical properties

-

Colour

Silver Fleck.

Bronze Fleck.

Finish

Riven surface.

Guidance for specification option:

Produces a visible glint due to the use of china clay.

Profile

-

Paver type

Regular plan form.

Arrises

Aged chamfer.

Dimensions and associated tolerances

-

Nominal sizes

114 x 114 x 60 mm.

171 x 114 x 60 mm.

Arrises

Chamfered.

Weathering resistance

Class 3.

Abrasion resistance

Class 3.

Guidance for specification option:

≤23 mm, determined by Wide Wheel Abrasion test.

Slip resistance

Deemed to satisfy.

Guidance for specification option:

Riven finish.

Skid resistance

Deemed to satisfy.

Guidance for specification option:

Riven finish.

Recycled content (minimum)

Manufacturer's standard.

Type

Hand lay.

Strength

Characteristic tensile splitting strength ≥ 3.6 Mpa; Failing load ≥ 250 N/mm.

Tolerances on plan dimension and thickness (nominal)

Thickness: ±3 mm; Plan size: ±2 mm.
