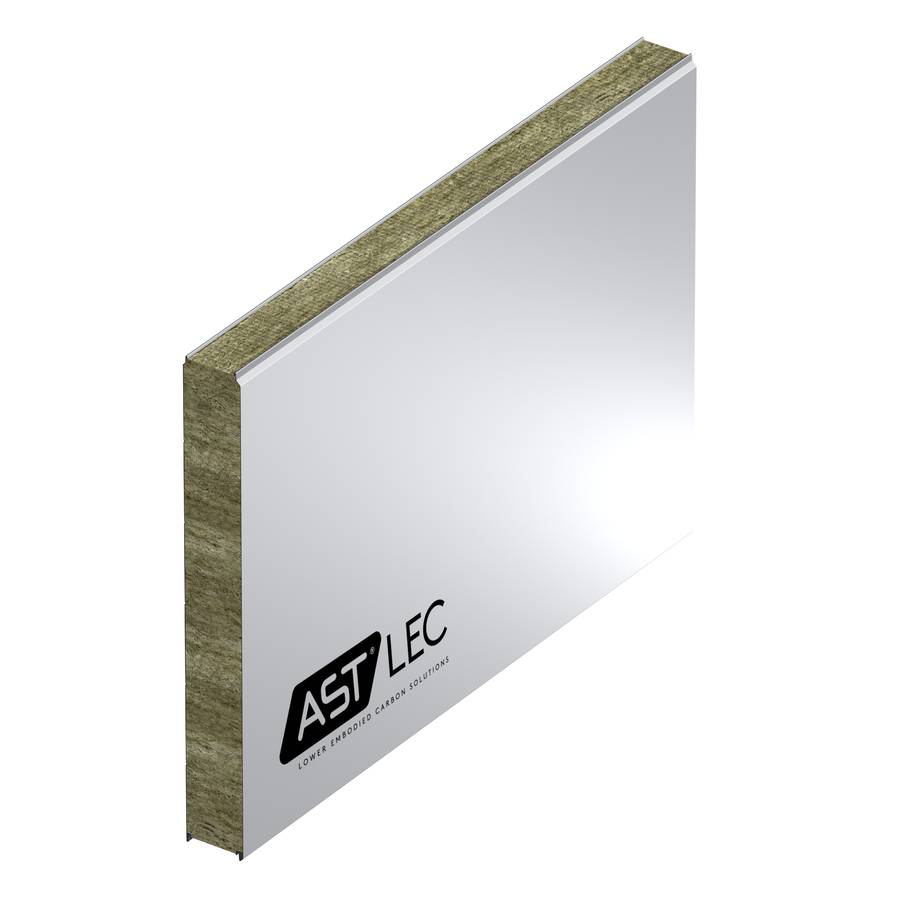

AST® F LEC Wall Panel - LEC insulated sandwich panel
Verified by manufacturer 1 day ago
100 mm Core Thickness
100 mm Core Thickness
AST F LEC (Lower Embodied Carbon) Insulated Stone Wall Panel System
Application
Lower embodied carbon (LEC) stone wool insulated sandwich panel suitable for external cladding, internal partition walls, ceilings and flat roof systems.
Description
AST® F LEC Wall Panel is part of our Lower Embodied Carbon solutions. The AST® L LEC Wall Panel has a Life Cycle Assessment (LCA) showing a 55% reduction in embodied carbon (measured in Global Warming Potential 'GWP' kgCO2e) for modules A1-A3 and a 42 % reduction in embodied carbon for modules A-C compared to the standard 80 mm thick AST® F Wall Panel verified to EN 15804:2012+A2:2019/ AC:2021.
Paroc Panel Systems directly contribute to BREEAM® and LEED® credits
For load / span tables, please refer to the 'Technical Guide' brochure or contact Paroc Panel System Technical Support.
General information
Color | Beige Black Blue Brown Cream |
Finish | PVdF Coated Galvanized Matt Metallic |
Material | Stainless steel |
Shape | Rectangle |
Length | Bespoke Manufacturer guidanceShorter lengths (non-standard): 200–1499 mm. Standard lengths: 1500–12100 mm. |
Width | 1200 mm |
Height | 50 mm 80 mm 100 mm 120 mm 150 mm |
Warranty description | Other Guidance for specification option: Paroc Panel System’s warranty are individually assessed for each project, especially depending on the aggressiveness of the environment and the type of surface treatment chosen. |
Uniclass | |
CAWS | H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel |
Specification data - Carbon steel insulating sandwich panels
Classification data | |
Panels | Factory-assembled insulating sandwich panels. |
Panel construction | |
Panel external face | |
Material | Steel. |
Profile | 1 - Line 600. 5 - Line 200. 7 - Line 150. F - Smooth. M - Micro profiled. |
Thickness | 0.6 mm. |
Panel internal face | |
Material | Steel. |
Profile | 1 - Line 600. 5 - Line 200. 7 - Line 150. F - Smooth. |
Thickness | 0.5 mm. |
Core insulation | Paroc stone wool insulation core with a Thermal Conductivity (λ) of 0.045 W/m·K according to EN 14509. |
Panel dimensions | |
Length | Manufacturer guidance1500–12100 mm. Insert requirements. Shorter lengths (non-standard): 200–1499 mm. |
Cover width | 1196 mm. |
Thickness | 100 mm. |
Joint type | |
Side or vertical | All side joints have a factory applied seal fitted into the groove to automatically seal the joint between panels. Guidance for specification option: Panels intended for external walls are usually delivered with an on the production line installed sealant in internal and external grooves. Panels for high or vertically installed facades always have to be provided with sealant in both grooves of the joint. |
Finish as delivered | |
Outer skin | |
Material | Spectrum®. |
Colour | Manufacturer guidanceFor available colours, please refer to the "Colour Indications" brochure. |
Inner skin | |
Material | Polyester SP25. |
Colour | Manufacturer guidanceFor available colours, please refer to the "Colour Indications" brochure. |
Fire performance | |
Reaction to fire | |
Panel external face | A2-s1, d0. |
Panel internal face | A2-s1, d0. |
Fire resistance | Tested and approved to comply with EN 14509. Manufacturer guidanceProduct technical specifications relating to fire classification are available from Paroc Panel System Technical Support. FM Approved product specifications are available in the FM Approval Guide and from Paroc Panel System Technical Support. Consult technical literature and/or manufacturer for details and insert requirements. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Paroc Panel Systems procure steel that is made from 15–25% recycled content. |
Sound insulation | 31 (-3; -3) dB. |
Thermal transmittance (U-Value) | 0.43 [W/m²·K]. |
Sustainability data
Country of material origin | Finland |
Country of product manufacture | Finland |
Manufacturing plant location | |
Material | Stainless steel |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : NaN (kg CO₂ eq/kg) Declared unit : 17.4 Lower emissions | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Expected Life | 60 year |
