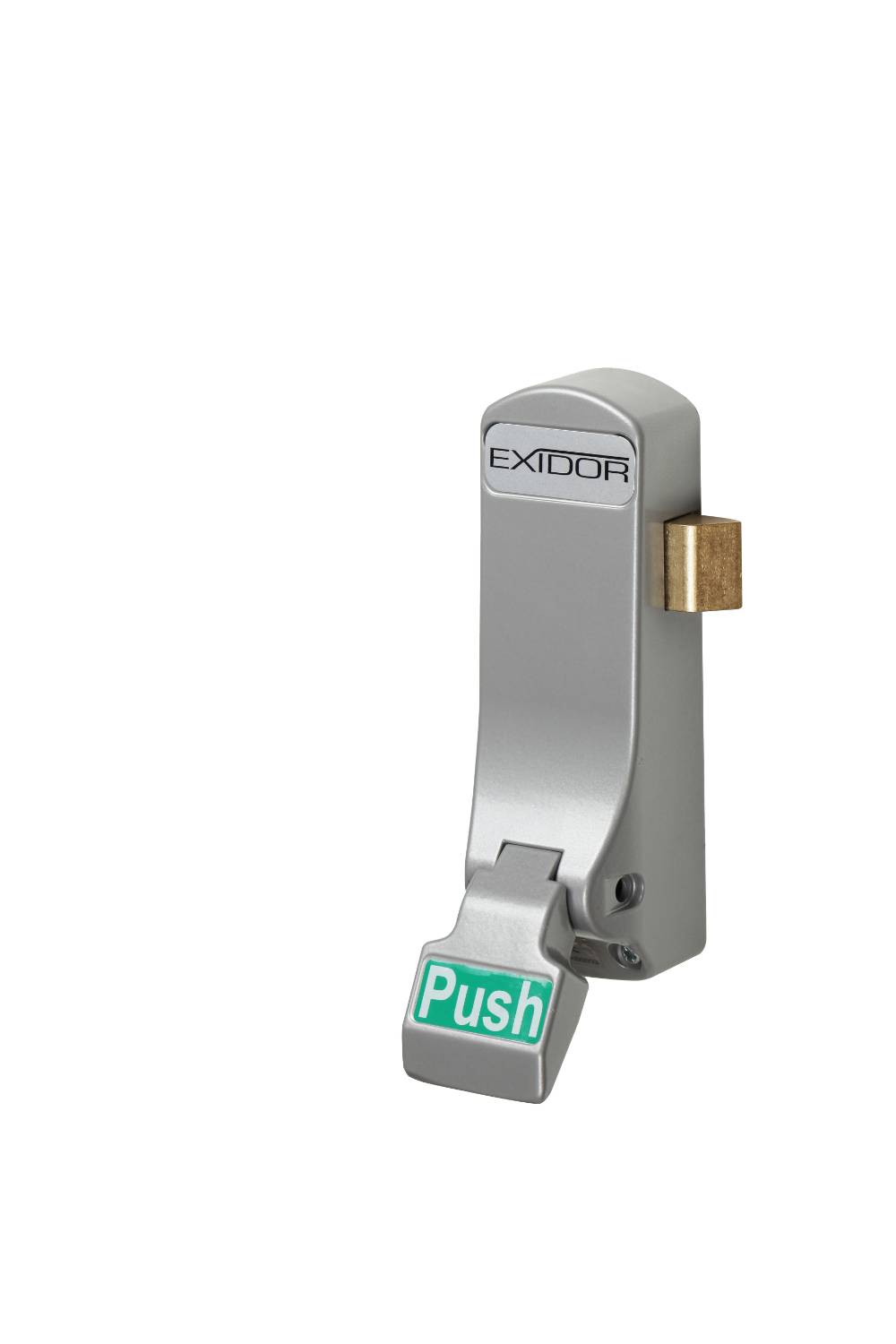

ASSA ABLOY - Exidor 297 Push Pad

Name: ASSA ABLOY - Exidor 297 Push Pad
Brand: ASSA ABLOY Opening Solutions UK & Ireland
SKU: ft3xFTrEe8STnzV7PLm3AP

Verified by manufacturer 4 months ago

ASSA ABLOY Opening Solutions UK & Ireland

A surface mounted rim latch for single and double door applications.

Jump to:

0845 223 2124 Website

Application

For single and double door applications.
Fire rated for use on timber and steel doors.

Description

A surface mounted rim latch for single and double door applications. Pressing the pad provides safe and speedy exit in the event of an emergency, whilst maintaining security against intrusion.

Features and benefits:

Non-handed.
Fire rated for use on timber and steel doors.
Surface mounted.
Adapter supplied for operating with a rim cylinder.

General information

Color	Silver
Finish	Chrome
Material	Steel
Shape	Rectangle
Length	55 mm
Width	83 mm
Height	173.5 mm
Warranty description	Ten year

Uniclass	Pr_30_36_08_63 Panic exit devicesPrimary Pr_30_36_08_28 Emergency exit devices
CAWS	P21/32 Panic exit devices P21/30 Emergency exit devices P21/577 Panic exit devices P21/571 Emergency exit devices

Specification data - Panic exit devices

Standard	EN 179:2008.
Classification grades (minimum)	-
Category of use	To BS EN 1125, grade 3.
Durability	To BS EN 1125, grade 7.
Door mass	To BS EN 1125, grade 6.
Suitability for use on fire and smoke doors	To BS EN 1125, grade 1.
Safety	To BS EN 1125, grade 1.
Corrosion resistance	To BS EN 1125, grade 3.
Security	To BS EN 1125, grade 4.
Projection of bar	To BS EN 1125, grade 2.
Type of bar operation	To BS EN 1125, grade B.
Field of door application	To BS EN 1125, grade A.
Material and finish	Powder coated.
Colour	Silver.
Execution	Fasteners for hardware.

Accessories	298 Outside access device - knob operated. 302EA Outside access device with Euro aperture - knob operated. 302EC Outside access device with Euro cylinder - knob operated. 302OA Outside access device with oval aperture - knob operated. 302OC Outside access device with oval cylinder - knob operated. 322EA Outside access device with Euro aperture - lever operated. 322EC Outside access device with Euro cylinder - lever operated. CL1 Mechanical push button outside access device. CL2 Mechanical push button outside access device with passage facility. CL3 Quick code mechanical push button outside access device. CL4 Quick code mechanical push button outside access device with passage facility. Show more

Sustainability data

Contains Red List materials	No
Material	Steel
Recyclability	- Manufacturer guidance Metals widely recycled.

Literature

Exidor 200/300 Series Brochure
