Application

  • For single and double door applications.
  • Fire rated for use on timber and steel doors.

Description

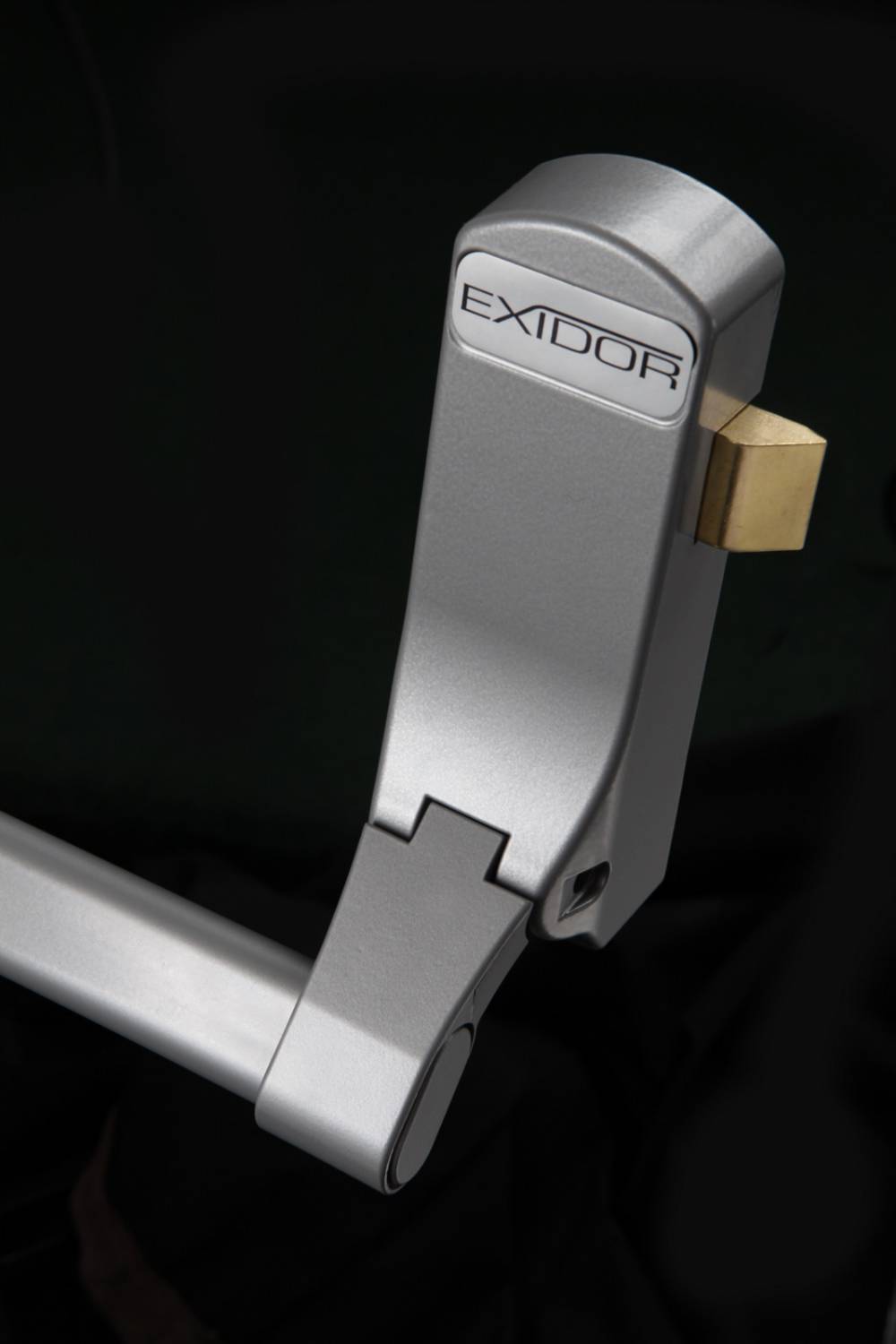

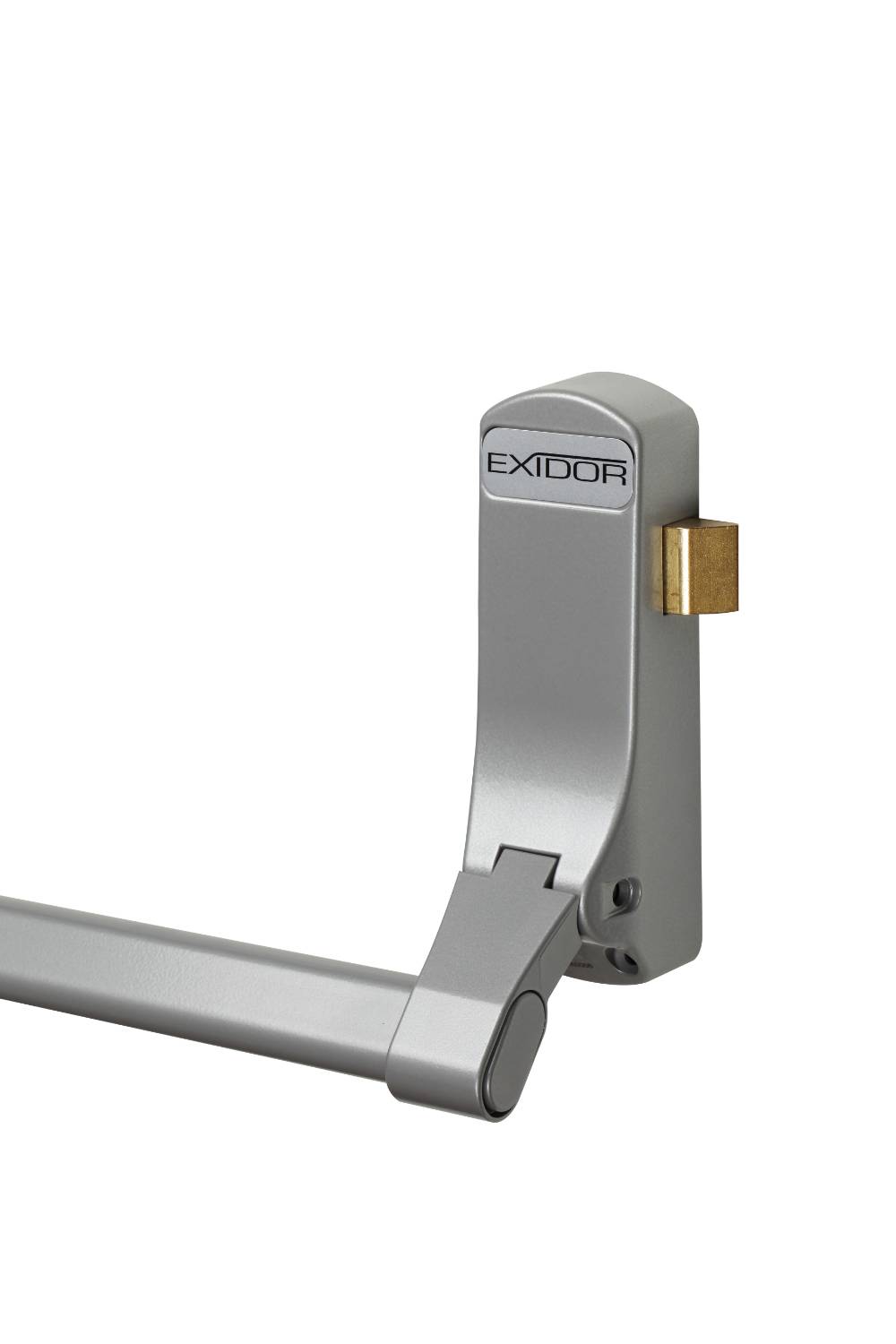

Designed for single and double doors up to 1220 mm wide, the unit is operated by a downward thrust of the cross bar to give a speedy exit in panic situations.


Features and benefits:

  • Non-handed.
  • Fire rated for use on timber and steel doors.
  • Surface mounted.
  • Adapter supplied for operating with a rim cylinder for outside access.
  • Closed arm design.

General information

Color

Material

Steel

Timber

Shape

Rectangle

Length

55 mm

Width

98 mm

Height

173.5 mm

Warranty description

Ten year

Uniclass

Pr_30_36_08_63 Panic exit devicesPrimary
Pr_30_36_08_28 Emergency exit devices

CAWS

P21/32 Panic exit devices

P21/30 Emergency exit devices

P21/577 Panic exit devices

P21/571 Emergency exit devices

Specification data - Panic exit devices

Standard

To BS EN 1125.

Classification grades (minimum)

-

Category of use

To BS EN 1125, grade 3.

Durability

To BS EN 1125, grade 7.

Door mass

To BS EN 1125, grade 6.

Suitability for use on fire and smoke doors

To BS EN 1125, grade 1.

Safety

To BS EN 1125, grade 1.

Corrosion resistance

To BS EN 1125, grade 3.

Security

To BS EN 1125, grade 2.

Projection of bar

To BS EN 1125, grade 2.

Type of bar operation

To BS EN 1125, grade A.

Field of door application

To BS EN 1125, grade A.

Material and finish

Powder coated.

Colour

Silver.

Execution

Fasteners for hardware

Accessories

298 Outside access device - knob operated.

302EA Outside access device with Euro aperture - knob operated.

302EC Outside access device with Euro cylinder - knob operated.

302OA Outside access device with oval aperture - knob operated.

302OC Outside access device with oval cylinder - knob operated.

Show more

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Steel

Timber

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Literature

Exidor 200/300 Series Brochure

Exidor 200/300 Series Brochure
