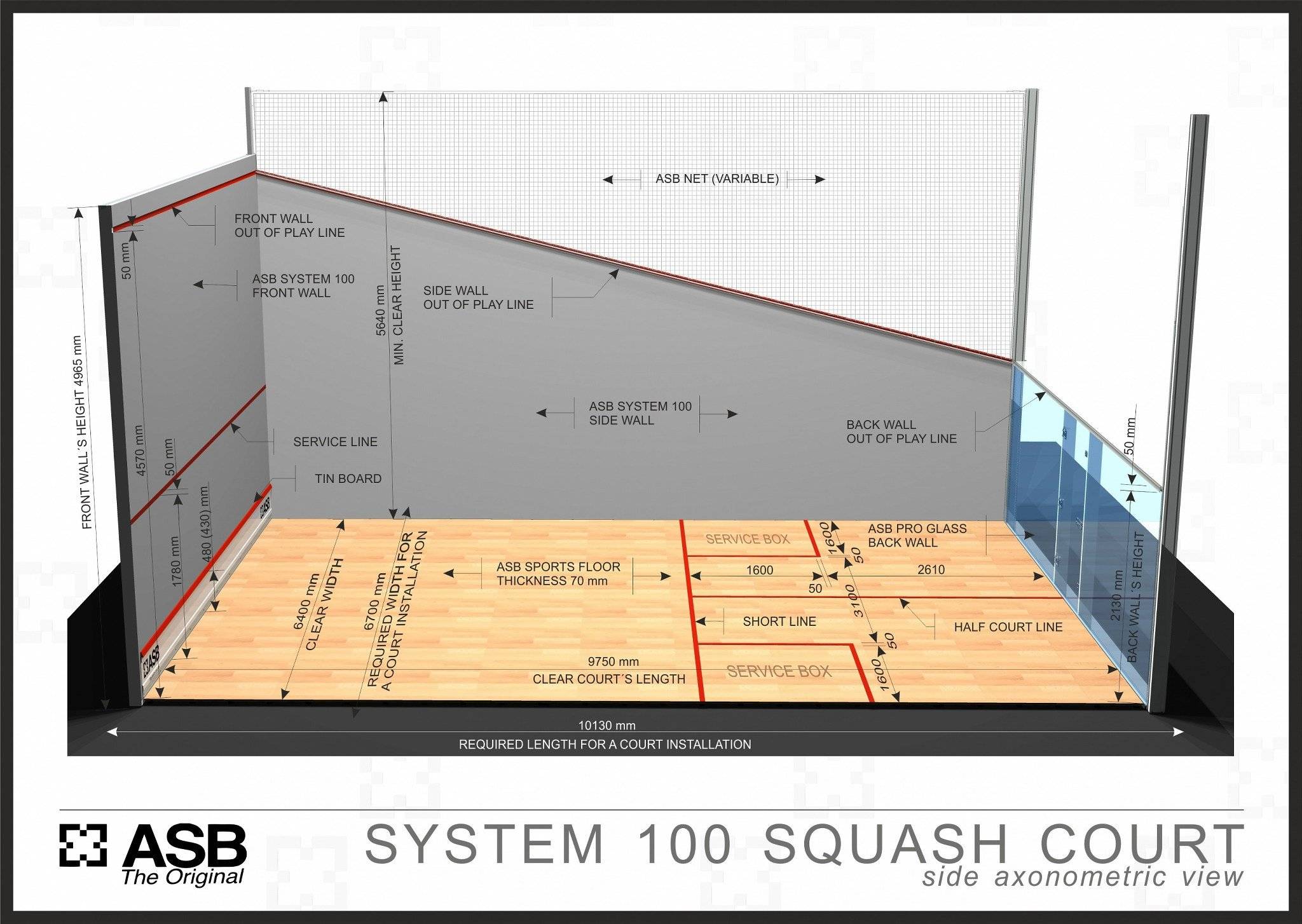

ASB System 100

The construction thickness of ASB System100 walls is 100 mm, consisting of two high-density boards, 18 mm thick, kept apart by aluminum I-profiles.

The cavity between the panels is filled with a fire-dried sand, granulation 1–3 mm. Its main function is to absorb the ball's impact energy to guarantee and secure the ball's correct and consistent rebound.

ASB System Courts can be moved to another location at a later stage if desired. System 100 walls are self-supporting and independent from other building walls due to installation upon custom-made sockets, elevating the walls 75 mm above the raw floor and thus securing them from rising humidity. Before leaving the factory, the wall panels are pre-coated with a special ASB coating. One further coat of primer and the final coating are applied on site. The surface of the court is hard, flat and free of joints, providing the necessary grip for the squash balls.

Features and benefits:

• Squash court walls are independent from all building constructions – self-supporting.
• The cavity between ASB panels is filled with a fire-dried sand – this means no hollow spots, the entire wall becomes very solid, and the rebound is even, no matter where the ball hits the wall.
• The ASB panels are 18 mm thick – the ball gets closer to the fire-dried sand, therefore, the wall becomes harder, which leads to better playability characteristics.
• The squash court wall's surface finish is smooth, solid and without joints or gaps.
• Eliminates the floor's linear expansion caused by varying air humidity – the floor goes underneath the walls.
• Simple and quick installation.
• Noise reduction.
