ASB Pro Glass Back Wall
Verified by manufacturer 6 days ago
A glass back wall for squash courts.
Application
Suitable for squash courts.
Description

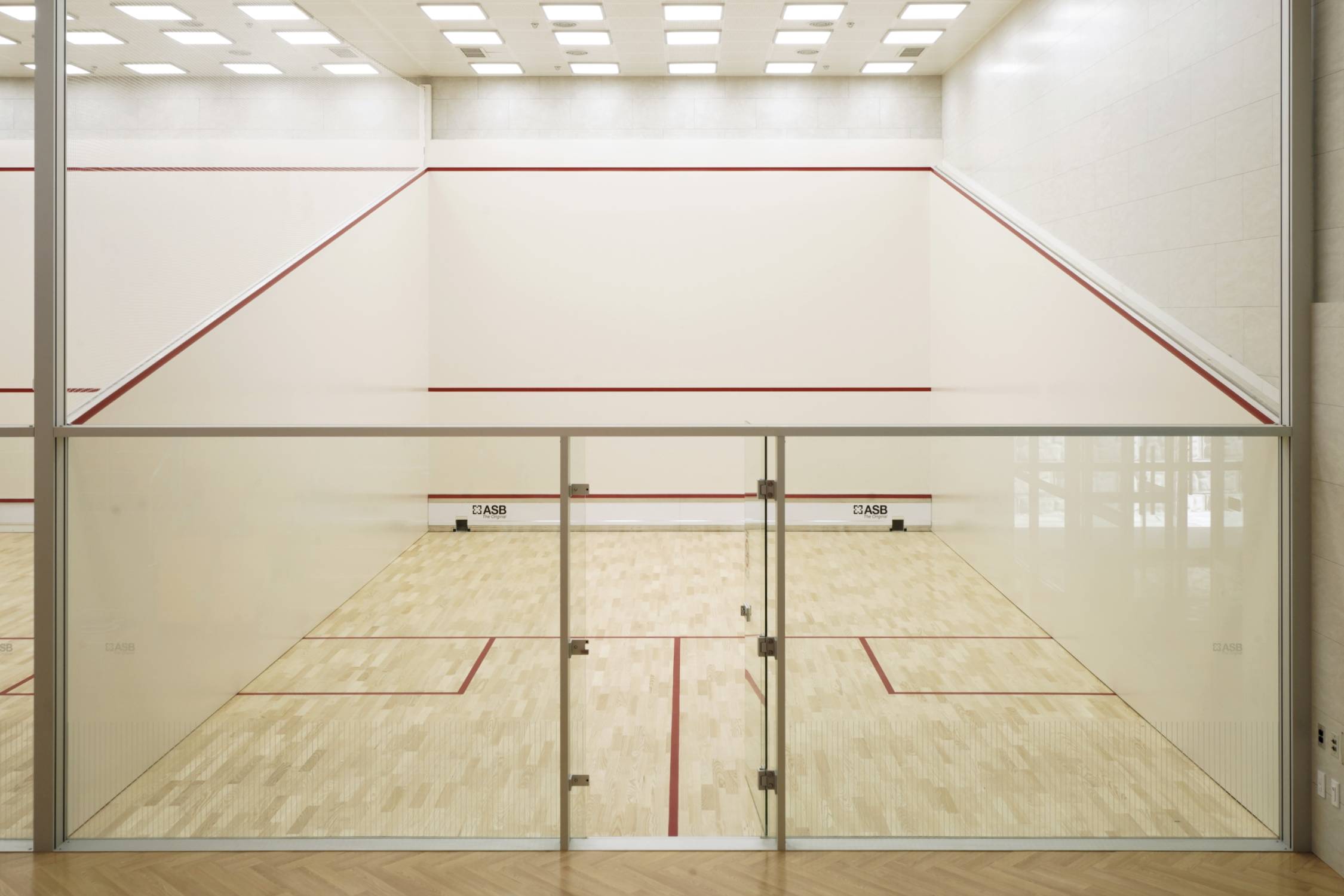

The ASB ProGlass Back Wall consists of two or four glass panels and one glass door, all made of fully tempered safety glass. The glass panes are supported by an aluminium frame. The upper transverse beam at a height of 2130 mm represents the out-of-play line. The glass door is fixed laterally and opens into the court.
Features and benefits:
- All glass panes are static proven, manufactured by a horizontal process, and approved and certified by the World Squash Federation.
- The glass panes are in accordance with ESG-H DIN 1249/ EN 12150 and can be heat soak-tested at an extra charge.
- The glass is labelled by silk-screened lines etched into the glass.
- An ASB glass headpiece (made from one pane of safety glass), an ASB net, or an ASB high-density board can be fitted above the wall.
General information
Color | Clear |
Finish | Anodized |
Material | Glass Aluminium |
Shape | Rectangle |
Length | 6400 mm |
Height | 2130 mm |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Supplied by | DYNAMIK Sports Flooring |
Standard | To DIN 1249 and EN 12150. Guidance for specification option: Glass panes. |
Unit size | |
Partition height (nominal) | 2130 mm. |
Width (nominal) | 6400 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Aluminium beams and columns. |
Glazed panels | |
Type | SECURIT safety glass, 12 mm thick. |
Door arrangement | |
Type | Frameless glass door system. |
Door panels | |
Type | SECURIT safety glass, 12 mm thick. Manufacturer guidanceThe clear entrance width is 914 mm (suitable for wheelchair access). The door (DIN left) is fixed laterally on three door hinges and opens into the court. |
Hardware | Door latch, door hinges. |
Other features | Safety glass etching. |
Accessories | Not required. ASB glass head piece. ASB net. ASB high density board head piece. |
Sustainability data
Material | Glass Aluminium |
