ASB Free Standing Glass Back Wall
Verified by manufacturer 6 days ago
A freestanding glass back wall for squash courts.
Application
Suitable for squash courts.
Description

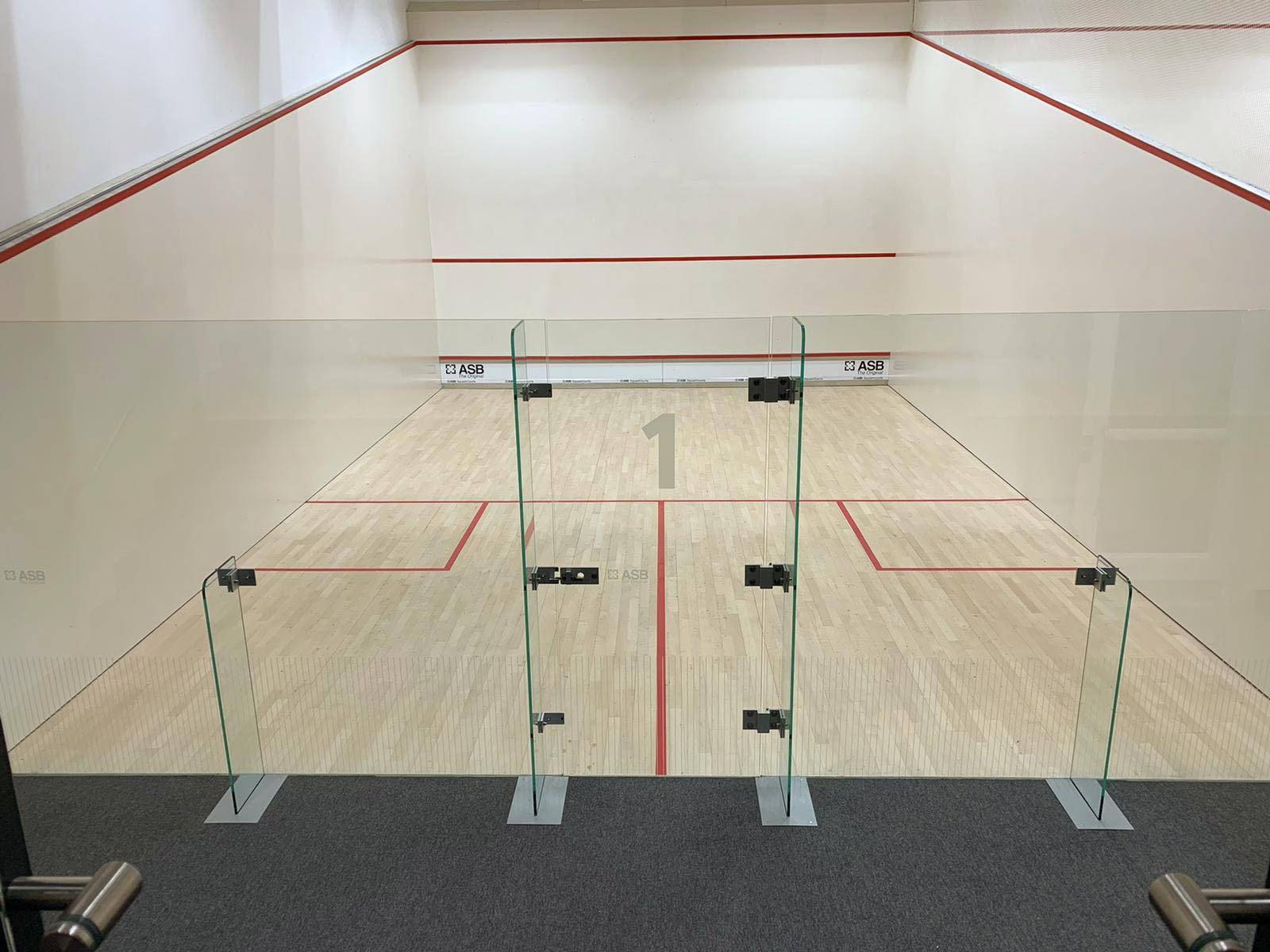

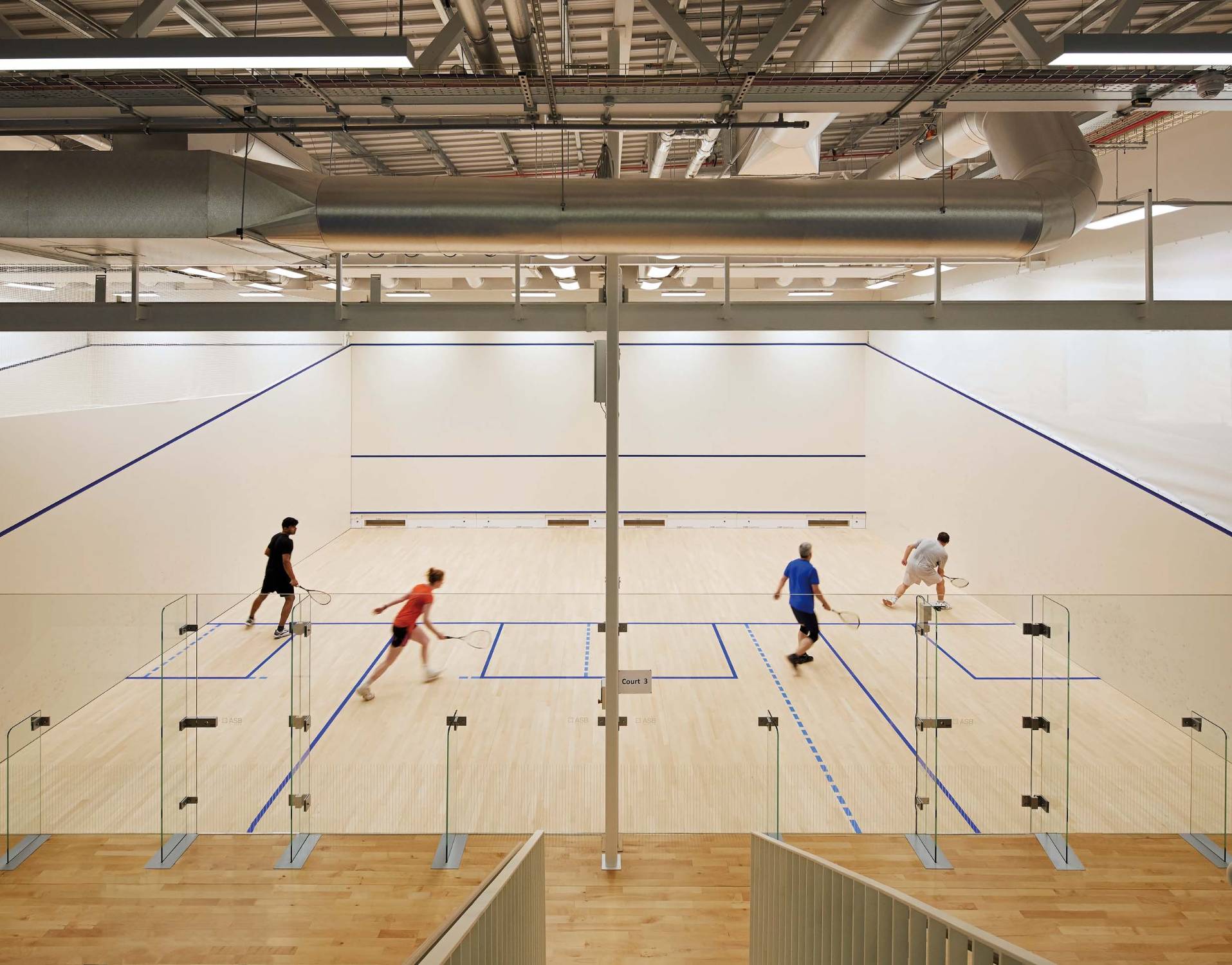

The ASB Free Standing Glass Back Wall consists of two or four glass panels and one glass door, all made of fully tempered safety glass. The glass panes are supported with 300 mm wide glass cross bracings and are connected to ASB aluminium columns, provided with the ASB side wall system.
Features and benefits:
- All glass panes are static proven, manufactured by a horizontal process, and approved and certified by the World Squash Federation.
- The glass panes are in accordance with ESG-H DIN 1249/ EN 12150 and can be heat soak-tested at an extra charge.
- The glass is labelled by silk-screened lines etched into the glass.
- An ASB net can be installed above the back wall. Glass headpieces can be installed at any time. For this purpose, it is necessary to plan the supporting profiles at the side walls and fix a transverse steel beam in between.
General information
Color | Clear |
Material | Glass Aluminium |
Shape | Rectangle |
Length | 6400 mm |
Height | 2130 mm |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Supplied by | DYNAMIK Sports Flooring |
Standard | To DIN 1249 and EN 12150. Guidance for specification option: Glass panes. |
Unit size | |
Partition height (nominal) | 2130 mm. |
Width (nominal) | 6400 mm. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Aluminium columns and 300 mm wide glass cross bracings. |
Glazed panels | |
Type | SECURIT safety glass, 12 mm thick. |
Door arrangement | |
Type | Frameless glass door system. |
Door panels | |
Type | SECURIT safety glass, 12 mm thick. Manufacturer guidanceThe clear entrance width is 914 mm (suitable for wheelchair access). The door (DIN left) is fixed laterally on three door hinges and opens into the court. |
Hardware | Door latch, door hinges. |
Other features | Safety glass etching. |
Accessories | Not required. ASB net. ASB glass head piece. Guidance for specification option: Glass headpieces can be installed at any time. For this purpose, it is necessary to plan the supporting profiles at the side walls and fix a transverse steel beam in between. Consult manufacturer for details. |
Sustainability data
Material | Glass Aluminium |
