Verified by manufacturer 5 months ago

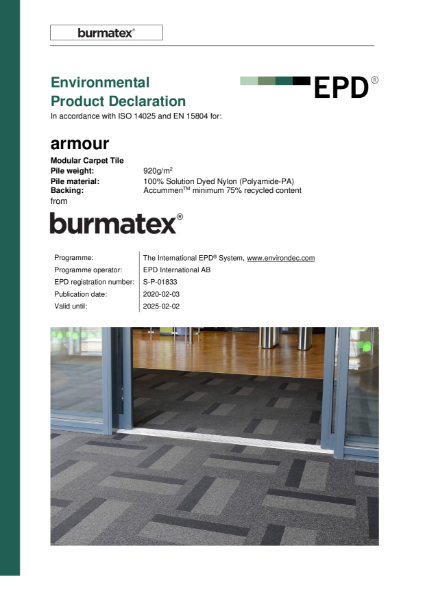

EPD
Certificate type
Secondary entrance solution, combining different yearns to remove dirt and moisture. Offers three coordinated designs in an attractive and high-performance entrance barrier system.

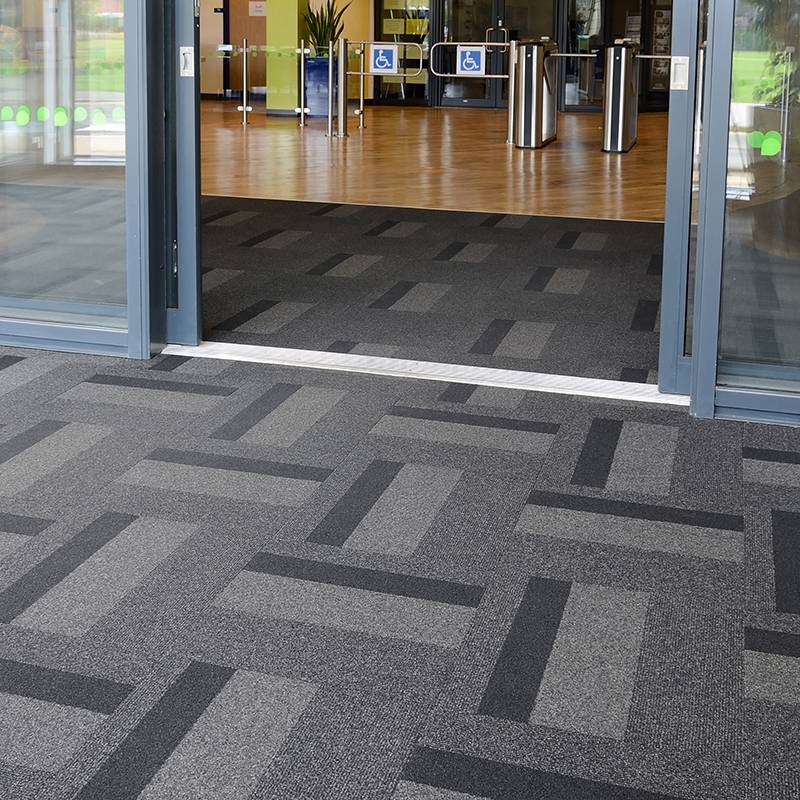

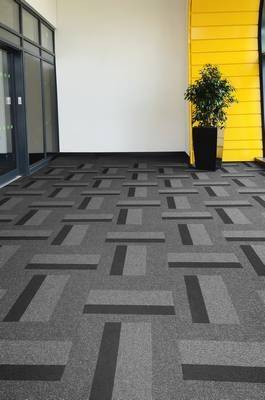

Ideal for secondary entrance areas, lobbies, lifts and staircases, armour protects internal flooring using both scraper yarns and absorbent yarns to prevent up to 90% of dirt and moisture being tracked into buildings.
Secondary entrance solution, combining different yearns to remove dirt and moisture. Offers three coordinated designs in a high-performance entrance barrier system.
Features and benefits:
Color | Manufacturer guidanceRange of colours available. |
Material | Nylon Guidance for specification option: 100% Solution Dyed Nylon (Polyamide-PA) |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 10 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | M50/130 Carpet tiling M50/15 Carpet tiling |
Style | Cut pile. |
Classification | |
Standard | To BS EN 1307. |
Level of use class | To BS EN 1307, class 33. |
Recycled content | 50% (minimum) to BS EN ISO 14021. |
Colour and pattern | 18701 graphite.18702 graphite stripe.18703 graphite block.18704 sterling.18705 sterling stripe.18706 sterling block.18707 cobalt.18708 cobalt stripe.8709 cobalt block. |
Product Reference | armour |
Weight | 4500 g/m². |
Thickness | 10 mm. |
Flammability | Euroclass Bfl-s1. |
Wear classification (to BS EN 1307) | Class 33. Guidance for specification option: heavy commercial use |
Castor chair rating (to BS EN 985) | Pass. Guidance for specification option: suitable for continuous use |
Static loading (to BS 4939:1987 (2003)) | Recovery >80% (24 hours). |
Dynamic loading (to BS ISO 2094:1999 (2005)) | Loss <20% (1000 impacts). |
Static electricity | Body voltage test (to BS ISO 6356:2000): <2 kV. |
Colour fastness | Light (to BS EN ISO 105 – BO2): grade 6 (minimum); shampoo (to BS 1006: UK-TB:1990): grade 4–5 (minimum). |
Environmental specifics | EPD-assessed. |
Backing | Accummen™. |
Castor chair rating | Pass. |
Dynamic loading | Loss <20%>. |
Gauge | 1/10th gauge 28 stitches. |
Hexapod | 3 to 4. |
Pile density | 110,236 /m². |
Pile yarn weight | 920 g/m². |
Tiles per box | 16 (4 m²). |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 3.70 kg CO₂ eq/m² |
Recyclability | 100% |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 3 | |
Revit 2016 | 4 |
