Arboles UK Wall Mounted Emergency Drench Shower
Verified by manufacturer 18 days ago

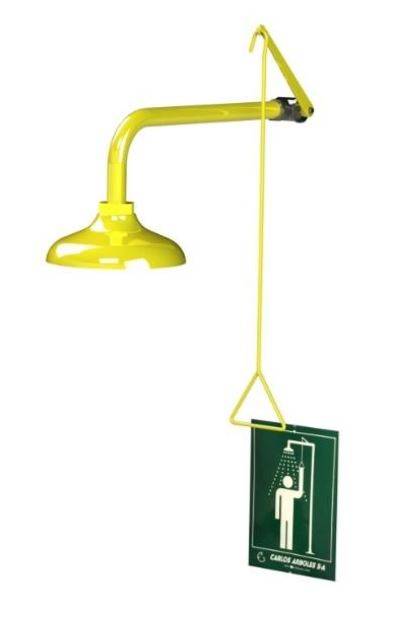

Wall mounting emergency drench shower, supplied with elbow mounting plate.
Application
Drench shower suitable for wall mounting.
Description
Wall mounting emergency drench shower, supplied with elbow mounting plate.
Features and benefits:
- Galvanized steel piping, brass plated valve with ABS plastic shower head. Robust rilsan plastic coating in yellow (RAL 1016).
- Water Inlet: G1” BSP female. (Elbow backplate).
- Inlet pressure: Recommended 2 bar/ minimum 1.5 bar/ maximum 8 bar.
- Flow rate: 110 L/min regulated.
- Conforming and certified to ANSI/ SEA Z358.1-2009, DIN 12899-3-2007 and EN15154-1-2006.
General information
Color | Yellow Guidance for specification option: RAL 1016. |
Finish | Coated Guidance for specification option: Rilsan plastic coating. |
Material | Steel Brass Acrylonitrile butadiene styrene (ABS) |
Shape | Other |
Length | 560 mm |
Width | 250 mm |
Height | 2353 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/40 Shower units N13/351 Wash fountains N13/41 Shower heads N13/375 Shower units |
Specification data - Eye-wash fountains
Units | |
Form | Wall mounted drench shower. |
Stations | Single user. |
Water supply | Umbrella spray. |
Operation | Manual. |
Materials | |
Body | Galvanized steel piping, brass plated valve with ABS plastic shower head. |
Finish and colour | Rilsan plastic coating, yellow (RAL1016). |
Size | 2353 x 560 mm.Manufacturer guidanceHeight x projection. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
Head diameter | ∅250 mm. |
Height | 2100 mm. Manufacturer guidanceShower head height. |
Water inlet | G1” BSP female. |
Pressure | 2 bar. Guidance for specification option: Minimum 1.5 bar/ maximum 8 bar. |
Flowrate | 110 L/minute. Guidance for specification option: Regulated. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

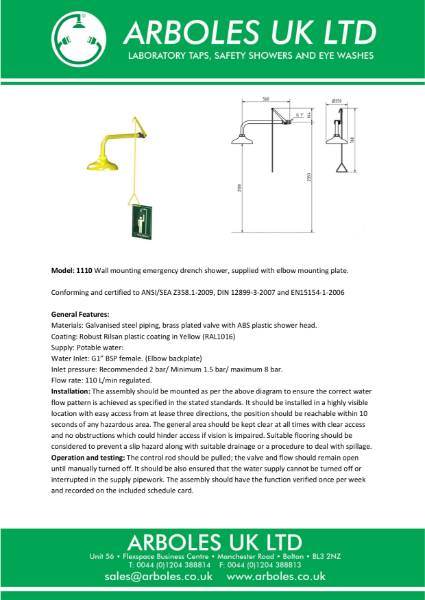

Arboles UK Wall Mounted Emergency Drench Shower
