Arboles UK Bench Mounted Emergency Eyewash
Verified by manufacturer 10 days ago
Bench mounting eyewash with retractable flexible hose.
Application
Bench mounted eyewash.
Description
Bench mounting eyewash with retractable flexible hose.
Features and benefits:
- Brass valve assembly with flexible 1.5 m braided stainless-steel hose.
- Robust rilsan plastic coating in yellow (RAL 1016).
- Water Inlet: G1/2” BSP Female. Bench hole drilling 42 mm diameter.
- Inlet pressure: Recommended 2 bar/ minimum 1.5 bar/ maximum 8 bar. Flow rate: Eyewash 15 L/min regulated.
- Conforming and certified to ANSI/ SEA Z358.1-2009, DIN 12899-3-2007 and EN15154-1-2006.
General information
Color | Yellow Guidance for specification option: RAL1016. |
Finish | Coated Guidance for specification option: Robust Rilsan plastic coating. |
Material | Stainless steel Brass |
Shape | Other |
Width | 115 mm |
Height | 180 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N13/351 Wash fountains |
SKU Code | 3120 |
Specification data - Eye-wash fountains
Classification data | |
Units | |
Form | Bench mounting eyewash with retractable flexible hose. |
Stations | Single user. |
Water supply | Lever action spray tap. |
Operation | Manual. |
Materials | |
Body | Brass. |
Finish and colour | Robust Rilsan plastic coating, yellow (RAL1016). |
Size | 180 x 115 mm. Manufacturer guidanceHeight x projection. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Connection | G1/2” BSP Female. Bench hole drilling 42 mm diameter. |
Pressure | 2 bar. Guidance for specification option: Minimum 1.5 bar/ maximum 8 bar. Manufacturer guidanceInlet reccomended pressure. |
Flowrate | 15 L/min. |
HoseLength | 1.5 m flexible braided stainless-steel hose. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

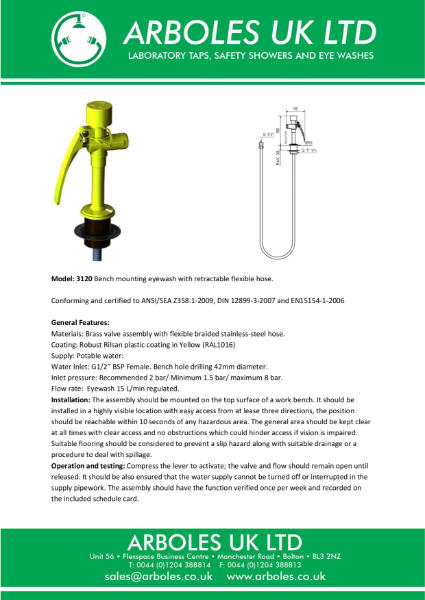

Arboles UK Bench Mounted Emergency Eyewash
