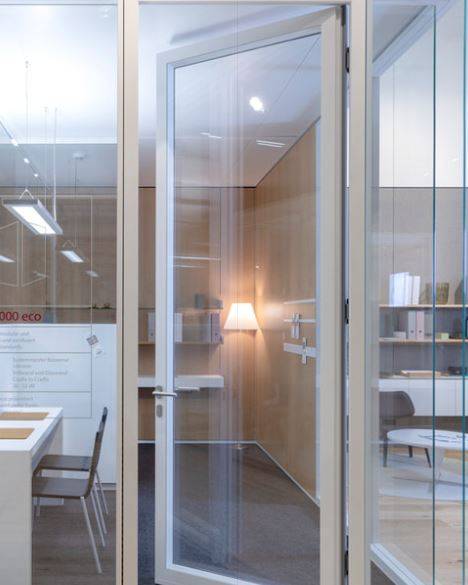

AR100 - Glazed Door
Verified by manufacturer 1 day ago
42 dB
42 dB
EPD
Certificate type
Double glazed, aluminium framed door leaf.
Application
Designed to be used in double glazed systems at 100 mm deep.
For integration into Savile Row Projects partition systems, including:
- System 3500
- System 2000
- System 2300
Description
Double glazed, aluminium framed door leaf with hinge mechanism.
Features and benefits:
- Rw 42dB, Rw 44dB or Rw 46dB acoustic performance.
- Mitred frame and leaf profiles have a high quality aesthetic.
- Available with a range of ironmongery options and accessories.
- Side hinge mechanism allows for drop down acoustic seal.
- Can be used in conjunction with Savile Row Projects partitions.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Frame. Anodized or polyester powder-coated to any RAL colour. |
Finish | Anodized Powder-coated Unfinished |
Material | Glass Aluminium Stainless steel |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/280 Doors L20/45 Doors |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single-leaf, single-action. Double-leaf, single-action. |
Doorset size | Manufacturer guidanceUp to: 3000 x 1200 mm (h x w). Consult manufacturer and insert requirements. |
Performance | |
Acoustic performance | 42 dB. |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Exposed metal. Anodized. Guidance for specification option:
Polyester powder-coated, RAL. Guidance for specification option: 25% gloss. Powder-coated to any RAL colour. Insert requirements. |
Door leaf | |
Thickness | 8.8 + 6 mm. Guidance for specification option: 8.8 mm acoustic laminated, 6 mm clear toughened. |
Material | Acoustic laminated glass and clear toughened glass. |
Perimeter seals | Single acoustic drop seal. |
Finish | |
External colour | Clear. |
Internal colour | As External. |
Accessories | Not required. Tech panel. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Handle type | Lever handle and latch - manual close. Lever handle and latch with surface mounted closer. Pull handle with surface mounted closer. Other. Guidance for specification option: Client specified alternative, consult manufacturer and insert requirements. Manufacturer guidanceHold open option is available - consult manufacturer and insert requirements. Handles available brushed stainless steel as standard. Black and bronze options also available. |
Lock type | Surface mounted mag lock. Morticed shear lock. Euro cylinder. Morticed EM lock. Surface mounted EM lock. Blank escutcheon. Manufacturer guidanceAvailable brushed stainless steel as standard. Black and bronze options also available. |
Gaskets | Black. Grey. |
Sustainability data
Material | Glass Aluminium Stainless steel |
Product certifications
Product certifications
EPD
Strahle AR100 Door EPD
Literature
AR100 Door - Datasheet
