AR40 - Glazed Door
Verified by manufacturer 3 days ago
EPD
Certificate type

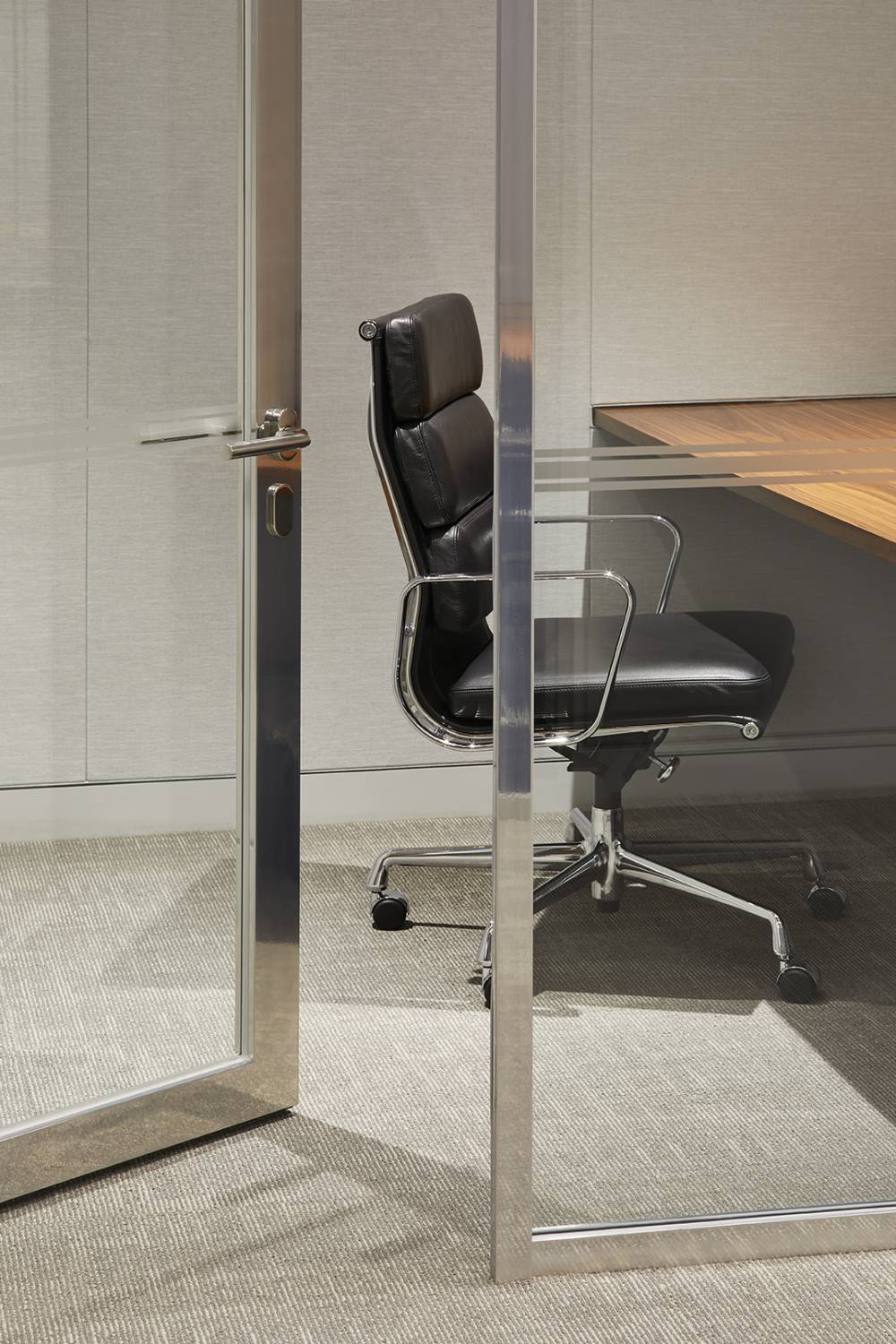

Single glazed, aluminium framed door leaf.
Application
For integration into Strahle partition systems, including:
- System 3400.
- System 3500.
- System 2000.
- System T.
Description
Single glazed, aluminium framed door leaf with hinge mechanism.
Features and benefits:
- Rw 37 dB acoustic performance.
- Offers a minimalist aesthetic with slim mitered frame.
- Available with a range of ironmongery options and accessories.
- Side hinge mechanism allows for drop down acoustic seal.
- Can be used in conjunction with Strahle partitions.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Frame. Anodized or polyester powder-coated to any RAL colour. |
Finish | Anodized Powder-coated Unfinished |
Material | Glass Aluminium Stainless steel |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/280 Doors L20/45 Doors |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single-leaf, single-action. Double-leaf, single-action. |
Doorset size | Manufacturer guidanceUp to: 3000 x 1200 mm (h x w). Consult manufacturer and insert requirements. |
Performance | |
Acoustic performance | 37 dB. |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Exposed metal. Anodized. Guidance for specification option:
Polyester powder-coated, RAL. Guidance for specification option: 25% gloss. Powder-coated to any RAL colour. Insert requirements. |
Door leaf | |
Thickness | 12.8 mm. |
Material | Acoustic laminated glass. |
Perimeter seals | Drop down acoustic seal. |
Finish | |
External colour | Clear. |
Internal colour | As External. |
Accessories | Not required. Tech panel. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Handle type | Lever handle and latch - manual close. Lever handle and latch with surface mounted closer. Pull handle with surface mounted closer. Other. Guidance for specification option: Client specified alternative, consult manufacturer and insert requirements. Manufacturer guidanceHold open option is available - consult manufacturer and insert requirements. Handles available brushed stainless steel as standard. Black and bronze options also available. |
Lock type | Surface mounted mag lock. Morticed shear lock. Euro cylinder. Morticed EM lock. Surface mounted EM lock. Blank escutcheon. Guidance for specification option: Drilled for lock. Euro cylinder can be added at a later date. Manufacturer guidanceAvailable brushed stainless steel as standard. Black and bronze options also available. |
Gaskets | Black. Grey. |
Sustainability data
Material | Glass Aluminium Stainless steel |
Product certifications
Product certifications
EPD
Strahle AR40 Door
Literature
AR40 Door - Datasheet
