Aqua illi - Boiling, Chilled & Ambient (BCA) Water Tap - Fully Integrated Water Tap System

Name: Aqua illi - Boiling, Chilled & Ambient (BCA) Water Tap - Fully Integrated Water Tap System
Brand: Aqua Libra Co
SKU: jpaJ2EpJFvUPjDfRShLEud

Verified by manufacturer 20 hours ago

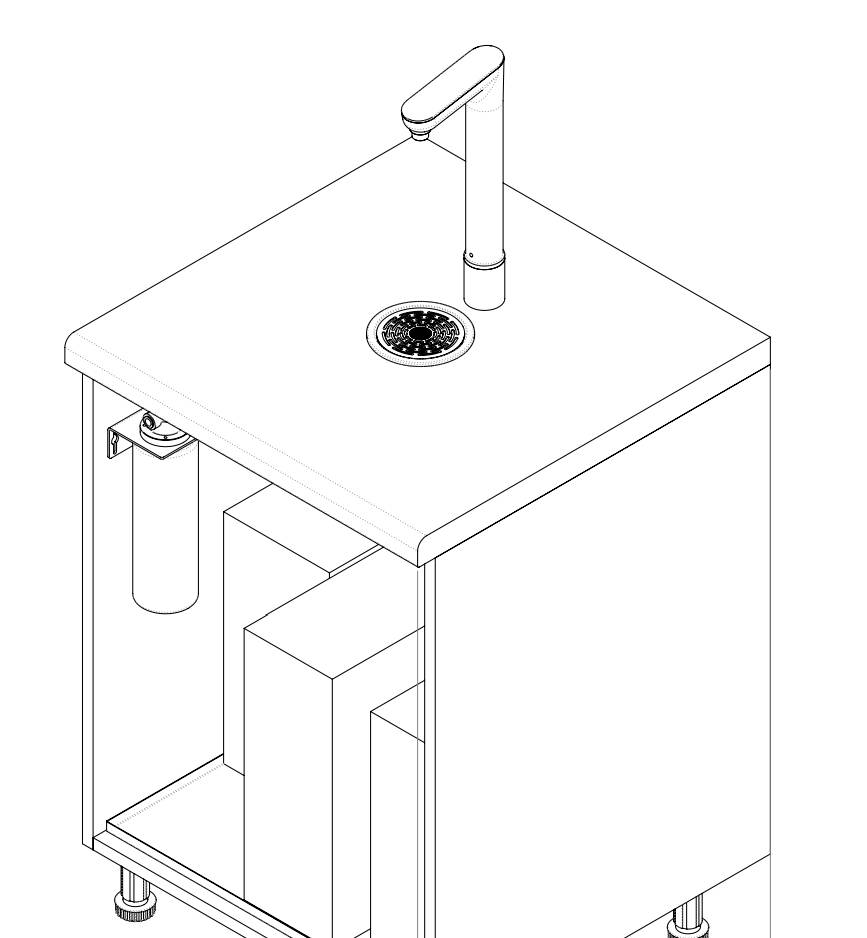

Aqua illi BCA tap with 60 mm extension

Aqua Libra Co

Product certifications:

KIWA BDA
Certificate type
KIWA BDA
Certificate type

Fully integrated water tap system delivering purified hot, chilled and ambient water; available in polished and matte black as standard.

Jump to:

Request BIM

+44 (0) 800 080 6696 Website

Application

Suitable for a variety of environments including workplace & offices, education, healthcare and hospitality.

Particularly suitable for glasses, cups and short bottles in the following applications:

Office/workplace breakout rooms.
Executive lounges.
Staff rooms.
Wellness and spa areas.

Description

The Aqua illi is a fully integrated tap system for modern workplaces, delivering purified hot, chilled and ambient water in a sleek design that seamlessly complements any interior for effortless, dependable hydration.

Features and benefits:

Robust - intuitive - beautifully minimal.
Designed to withstand high daily use.
Engineered for teams who value form and function.
Less visual clutter - more clarity.
Patented boiler design gives high volumes of boiling water.
Featuring Aqua Purifier four-stage + PFAS/ microplastic filtration.
Installed in modular form.
Perfect water flow.
Continuous and timed dispensing modes to accommodate precise fill volumes.
Tap height extensions are available for dispensing into a variety of vessel sizes.
Plumbed-to-waste.
Flush-fitting drip tray.
Safe hot dispense with a touch padlock feature.
Removable dispense nozzle for improved hygiene.
Accessible options available.
Kiwa Certified - Kiwa Regulation 4 (KUKreg4).

General information

Color	Black Silver Other Beige Blue Brown Cream Gold Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Show more
Finish	Matt Polished Coated Chrome Electro polished Metal Mirrored Painted Powder-coated Zinc plated Show more
Material	Steel
Shape	Other
Length	155 mm Guidance for specification option: Spout depth (overall). 600 mm Guidance for specification option: Cabinet (external).
Width	45 mm Guidance for specification option: Spout diameter. 600 mm Guidance for specification option: Cabinet (external).
Height	298 mm Guidance for specification option: Spout height (overall; no extension). 358 mm Guidance for specification option: Spout height (overall; with 60 mm extension). 408 mm Guidance for specification option: Spout height (overall; with 110 mm extension). 1198 mm Guidance for specification option: Spout and cabinet height (overall; no spout extension). 1258 mm Guidance for specification option: Spout and cabinet height (overall; with 60 mm spout extension). 1308 mm Guidance for specification option: Spout and cabinet height (overall; with 110 mm spout extension). Show more Manufacturer guidance Spout height (overall).
Warranty description	One year

Uniclass	Pr_40_70_23_42 Instant boiling and cold water tapsPrimary
CAWS	N12/380 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes

Specification data - Instant boiling and cold water taps

Classification data
Water	Boiling, chilled still, ambient.
Duty	-
Tank capacity	Up to 45 litres.
Hot cups	180 per hour at 250 mL. Guidance for specification option: Glasses for chilled/ ambient water.
Cold cups	180 per hour at 250 mL. Guidance for specification option: Glasses for chilled/ ambient water.
Dimensions	Tap: 358 mm high; 155 mm deep; 45 mm diameter column. Cabinet: 900 x 600 x 600 mm. Guidance for specification option: Tap height without optional extension (see Accessories). Cabinet dimensions are external only; consult installation guidance for further details.
Electrical connection	-
Power	3 No. 50 Hz single switched 13 A power sockets.
Voltage	220–240 V.
Water inlet	1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve - compression connection.
Safety features	Touch operated.
Components	Touch tap; flush-fitting round drip tray; CTO filter; purifier storage tank; purifier; still cooler; standard boiler.
Colour/ Finish	Polished chrome. Satin black. Aqua Libra Studio. Guidance for specification option: Bespoke colour matching - consult manufacturer for details of colour, material and finish options, and insert requirements.
Extension	Additional 60 mm height. Guidance for specification option: 294 mm dispense height; 358 overall visible height.
Accessories	Cover plate. Guidance for specification option: Cover plate options available for replacing existing fixtures. Colour/ finish to match tap unless specified otherwise. Not required.
Water pressure	2.5 bar (minimum).
Flowrate	300 L/h (minimum).
Ventilation	Required. Guidance for specification option: See manufacturer's installation guidance for further details. See www.aqualibra.com/resources for all ventilation options and insert requirements. Aqua Libra can supply grilles, designed for effective cabinet ventilation.
Power consumption	Peak: 1650 W.
Current	Peak: 8 A.
Waste	Requires 40 mm upstand trapped waste pipe, 500 mm high.
