Aqua Alto - Boiling, Chilled & Sparkling Water Taps

Name: Aqua Alto - Boiling, Chilled & Sparkling Water Taps
Brand: Aqua Libra Co
SKU: jxK97qM2uKW5Jv7Xv21R92

Verified by manufacturer 4 months ago

Aqua Libra Co

Third party certifications:

KIWA BDA
Certificate type

Boiling, chilled, and sparkling water. Three taps. One base unit. Aqua Aqua Alto is a perfect combination of innovative technology, high-capacity dispense and infinite choice of colour.

Jump to:

BOS

+44 (0) 800 080 6696 Website

Application

Suitable for a variety of environments including workplace & offices, education, healthcare and hospitality.

Particularly suitable for glasses, cups and bottles in the following applications:

Office/workplace breakout rooms.
Executive lounges.
Staff rooms.
Gyms
Bars/restaurants
Wellness and spa areas.

Description

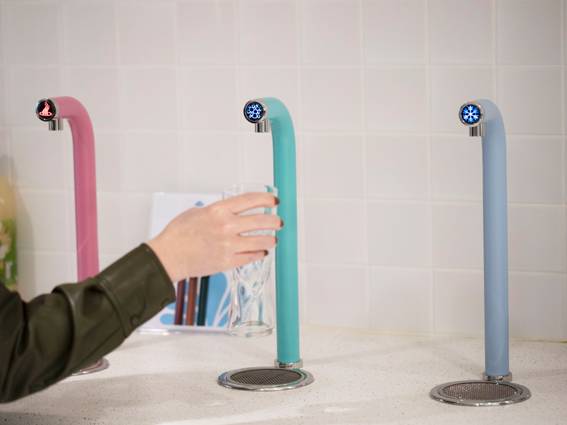

This innovative yet simple tap comes in any colour you like, to match, complement, or contrast with, your brand colours or décor.

Take three Aqua Alto taps – one each for boiling, chilled, and sparkling water – and take just one base unit.

Great look. No queues.

Features and benefits:

Multiple taps can be used on one system to reduce queues
Sleek design available in any colour
Patented boiler design gives high volumes of boiling water
Installed in modular form to fit into the tightest of spaces
Perfect water flow with zero splash
Plumbed-to-waste flush-fitting drip tray
Pre-set fill volumes for any vessel and free flow options available
Designed to fill water bottles without the need for font extension
Equality Act compliant controls available

General information

Color	Black Blue Bronze Brown Copper Cream Gold Grey Ivory Orange Pink White Turquoise Silver Yellow Purple Green Beige Red Other Show more Manufacturer guidance Available in any RAL colour.
Finish	Matt
Material	Steel
Shape	Other
Length	575 mm
Width	565 mm
Height	685 mm
Warranty description	One year Guidance for specification option: 12 months on parts and labour.

Uniclass	Pr_40_70_23_42 Instant boiling and cold water tapsPrimary
CAWS	N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes

Specification data - Instant boiling and cold water taps

Third party certification	ISO 14001, WRAS approved system components: 2010318, 1806330, 1906330, 1712074.
Water	Boiling, chilled, sparkling.
Duty	-
Tank capacity	Up to 45 litres.
Hot cups	180 per hour at 250 ml.
Cold cups	180 per hour at 250 ml.
Dimensions	685 x 565 x 575 mm. Guidance for specification option: H x W x D.
Electrical connection	-
Power	3 No. 50 Hz single switched 13 A power sockets.
Voltage	220–240 V.
Water inlet	1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve.
Safety features	Hot water dispense safety feature, base cabinet leak detector.
Components	Aqua Pure, boiler, watercooler-carbonator, tap.

Water pressure	2.5 Bar (minimum).
Flowrate	300 L/h.
Ventilation	Required. Guidance for specification option: Please visit www.aqualibra.com/resources for all ventilation options and insert requirements.
Colour/ Finish	- Manufacturer guidance Available in any RAL colour; insert requirements.
