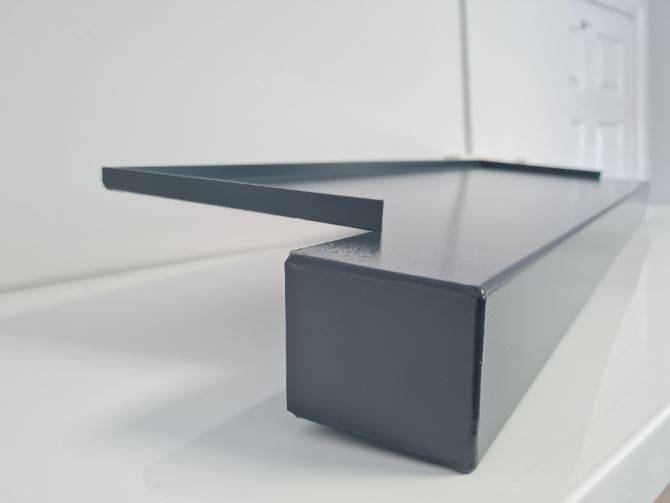

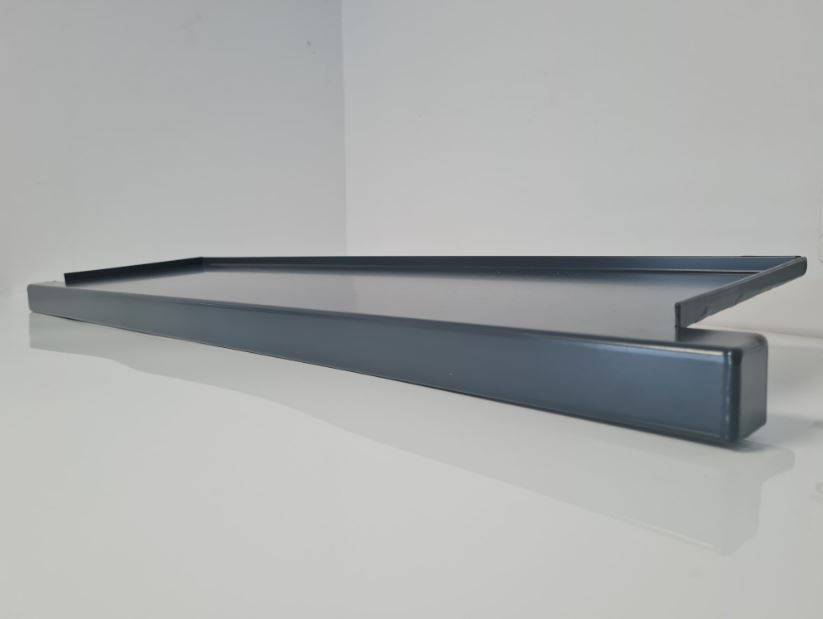

Aluminium Window Cill - Window Cill
Verified by manufacturer 5 months ago
Aluminium window cills in a wide range of sizes and bespoke profiles to suit any window system to individual requirements.
Application
- Cills are suitable to use on both domestic and commercial buildings.
- Suitable for use on – ICF, timber frame, block build, external insulation projects.
- Aluminium sills can be retrofitted to existing window sills making them the suitable choice for external insulation contractors, or can be used on new building projects.
Description
Seamless Aluminum Groups window cills are designed and manufactured to provide the essential architectural features appropriate to any building design.
Aluminium cills are available in a range of shapes and sizes and are all manufactured on site in Ballyshannon, Co Donegal, in marine grade Aluminium to ensure its high quality.
Seamless Aluminium manufacture all their window cills and accessories in their manufacturing plant can accommodate any special requirements in relation to length, colour, special angles or brackets etc.
Features and benefits:
- Available up to 3000 mm long with a range of features.
- Fully welded corners, upstands and stop ends.
- Can be powder coated in a wide range of RAL colours.
- Marine grade finish also available.
- Made from T6 and 6063 Aluminium Alloy under BS EN 755.
- Low maintenance and long life in excess of 40 years in rural and suburban conditions and in excess of 25 years in industrial and marine conditions.
- Non-combustible to BS 476, part 4: 1970 (1984). Melting temperature for aluminium is approx. 660 DEG C.
- Eliminate cold bridging.
- Lightweight.
- Easy to install.
- Available lengths to suit specific requirements.
- Traditional appearance.
- Can be powder coated specified RAL or BS number.
General information
Color | White Black Grey Brown Other Guidance for specification option: Available in any RAL or classic BS colours. |
Finish | Powder-coated Mill |
Material | Aluminium |
Shape | Other |
Length | 3000 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Up to 3 m long. |
Width | 100 mm Guidance for specification option: Minimum. 850 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Between 100–850 mm wide. |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | L10/33 Proprietary windows H72/38 Miscellaneous flashings L10/390 Proprietary windows L10/330 Aluminium windows H72/470 Miscellaneous flashings |
Specification data - External extension sills
Material | Aluminium. |
Finish | Mill.Polyester powder-coated.Guidance for specification option: To BS EN 12206-1. |
Section size | Guidance for specification option: Consult manufacturer and insert requirements.
|
Fixings | Stainless steel screw fasteners.Guidance for specification option: 5.5 mm gauge x 25 mm long. Low modulus sealant.Secret fix brackets.Guidance for specification option: These are to be fixed using SS screw fasteners the cill is then hooked under the window trim and snapped into location using the secret fix bracket. Manufacturer guidanceCills should be fixed along rear upstand at 600 mm centres if required with the front hooked over the existing cill (this is to be judged by the installer). |
Type | Type 1. Type 2. Type 3. Manufacturer guidanceConsult manufacturers literature for further information on window cill types and insert requirements. |
Fire rating | Non-combustible to EN 13501-1. Guidance for specification option:
|
Size Thickness (minimum) | 2/3 mm. |
Colour | Natural. Guidance for specification option: Mill finish. Traffic white (RAL 9016). Guidance for specification option: Powder-coated. Jet black (RAL 9006). Guidance for specification option: Powder-coated. Slate grey (RAL 7015). Guidance for specification option: Powder-coated. Anthracite grey (RAL 7016). Guidance for specification option: Powder-coated. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Norway |
Country of product manufacture | Ireland |
Material | Aluminium |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
