Unitized curtain walling system; all-glass look for a harmonious facade appearance.

Jump to:
+44 (0)1908 282111 Website

Application

Curtain walling on luxury residential and commercial buildings.

Description

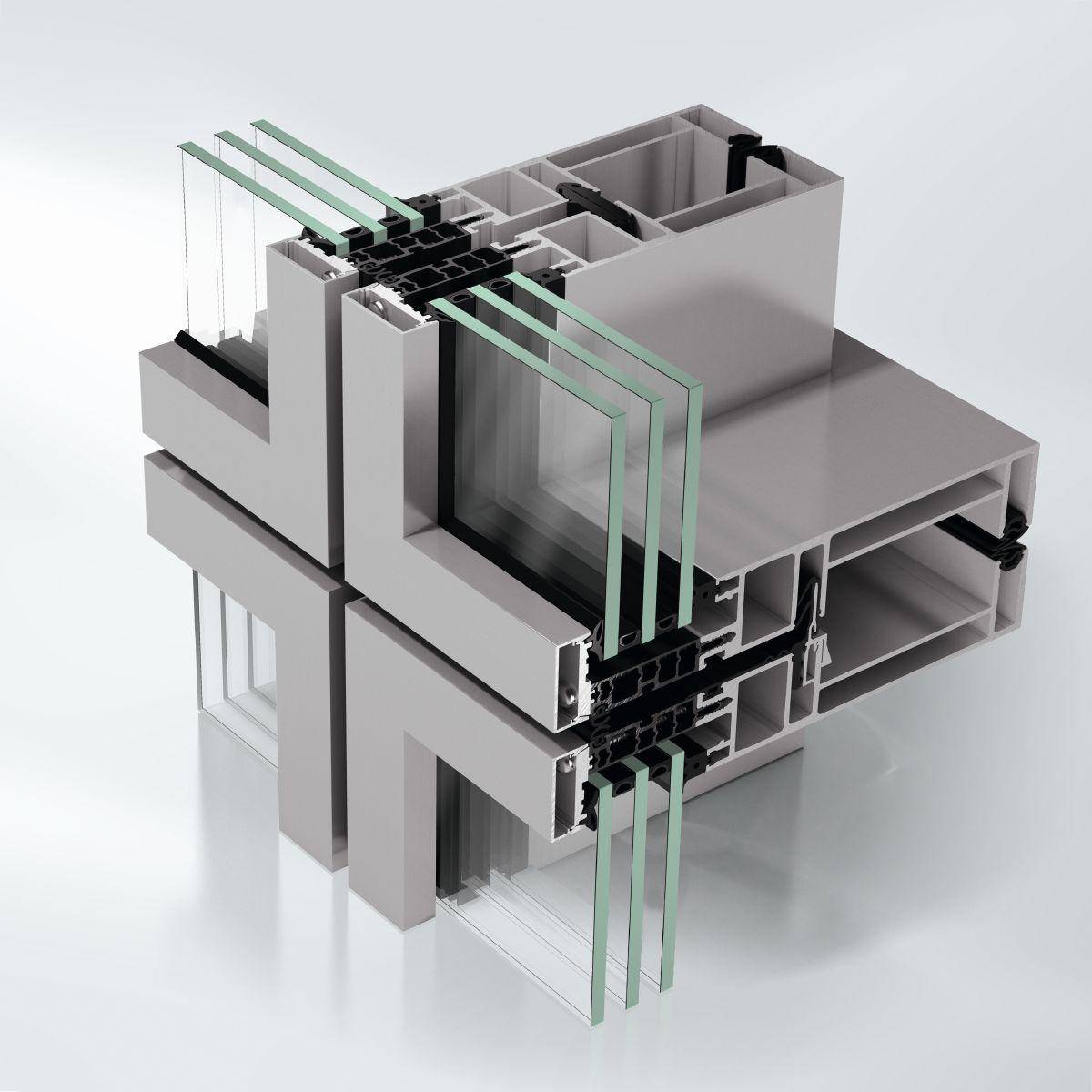

The Schüco AF UDC 80 (aluminium facade unitized dynamic construction) is part of the Schüco AF UDC 80 system platform that provides an all-glass look for a harmonious facade appearance.


Features and benefits:

  • Prefabrication in the workshop aids onsite fabrication in any weather with the best machining quality and easy-to-calculate costs.
  • Maximum use of identical parts minimizes complexity.
  • Few individual parts shorten installation times.

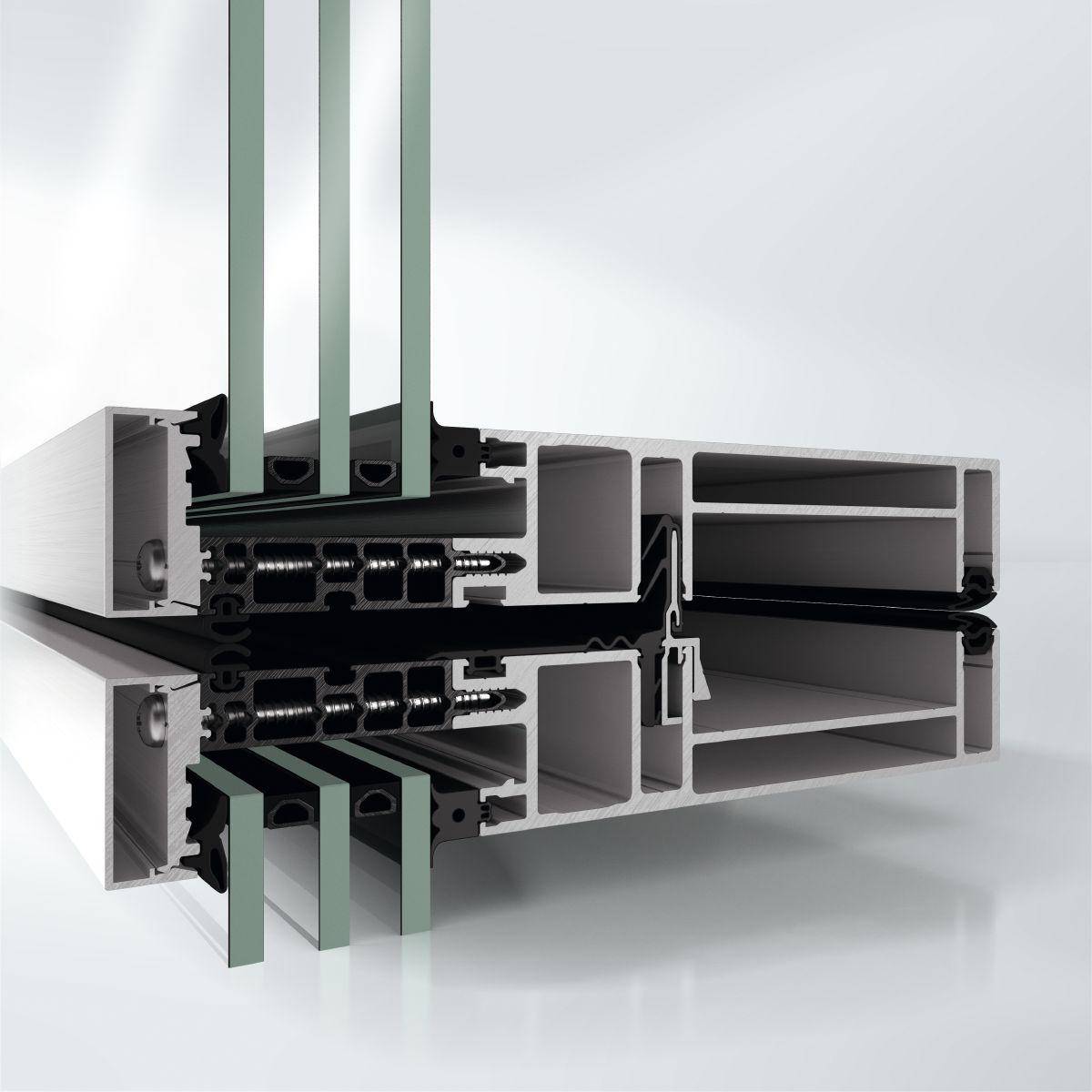

  • Screw-fixing the dimensionally stable multi-chamber isolator in the screw port of the load-bearing structure allows simple and secure installation with high maximum infill thicknesses.
  • Flexible saddle gasket that is supported by profiles and is easy to install.
  • System brackets can be adjusted along three axes for graduated unit weights for precise positioning.
  • All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
  • Cradle to Cradle Silver certified.
  • CWCT certified.
  • Recyclable.
  • Integrated sun shading.
  • Other versions available: Concealed vent (CV; specified separately) or structural glazing (SG; consult manufacturer for details).


Standards:

  • DIN EN 13830.
  • EN 12153.
  • EN 12512.
  • EN 12155.
  • EN 12514.
  • EN 13050.
  • EN 12179.
  • EN 13116.
  • EN 12179.
  • EN 13116.
  • EN 14019.
  • DIN 18008-4.
  • EN 12412-2.
  • EN ISO 10140-1: 2018.
  • EN ISO 10140-2: 2010.
  • EN ISO 717-1: 2013.
  • DIN EN ISO 10077, T2.

General information

Color

Silver

Other

Finish

Powder-coated

Anodized

Painted

Material

Aluminium

Glass

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_10_20_90 Unitized curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Unitized curtain walling systems

Framing

-

Framing members

Aluminium curtain wall frame sections, polyester powder-coated, colour.

Guidance for specification option:

Insert colour requirements.

Aluminium curtain wall frame sections, anodized.

Aluminium curtain wall frame sections, painted, colour.

Guidance for specification option:

Insert colour requirements.

Fasteners

Manufacturer's standard.

Cladding units

-

Glass units

Guidance for specification option:

Consult manufacturer for details and insert requirements, including glass thickness (22–70 mm).

Fasteners

Manufacturer's standard.

Perimeter seals

Manufacturer's standard.

System accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements, or omit.

Dimensions

Guidance for specification option:

Insert requirements or refer to drawing/ schedule; maximum (width x height): 3000 x 4000 mm; maximum weight: 1000 kg.

Basic system depth: 130–255 mm.

Face width

80 mm.

Guidance for specification option:

Minimum.

Thermal transmittance (U-Value)

-

Manufacturer guidance

Insert requirements or consult manufacturer for values.

Uf value of frame: ≥ 1.7 W/m²K.

Acoustic performance rating

-

Manufacturer guidance

Insert requirements; up to Rw 50 dB.

Air permeability

Class AE 1200.

Watertightness

Class RE 1650.

Impact resistance

Class I5/ E5.

Label

Schueco ‘IoF’ ID tag with QR code.

Guidance for specification option:

Internet of facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records.
