Aluminium Unitized façade - Curtain walling - AF UDC 80 CV

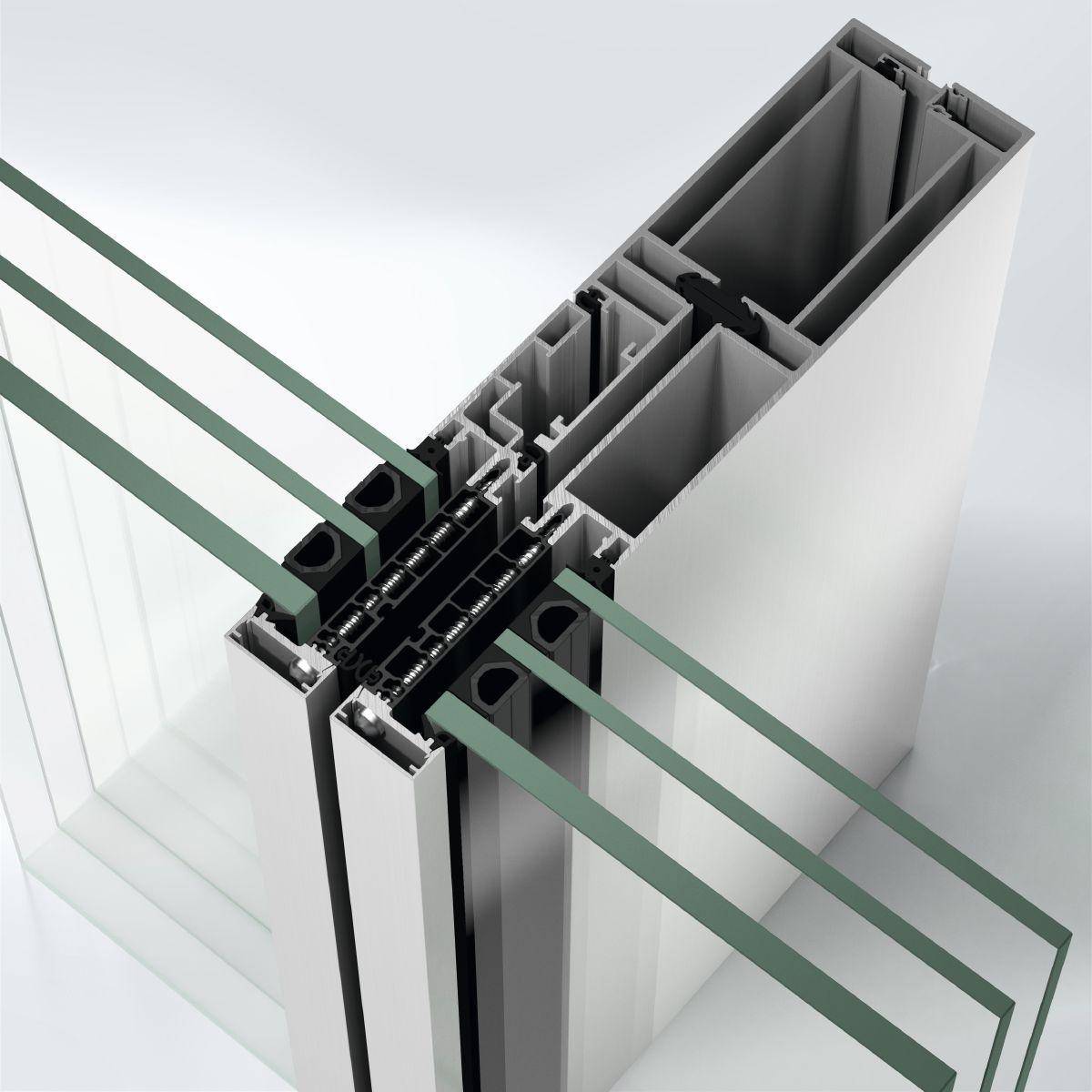

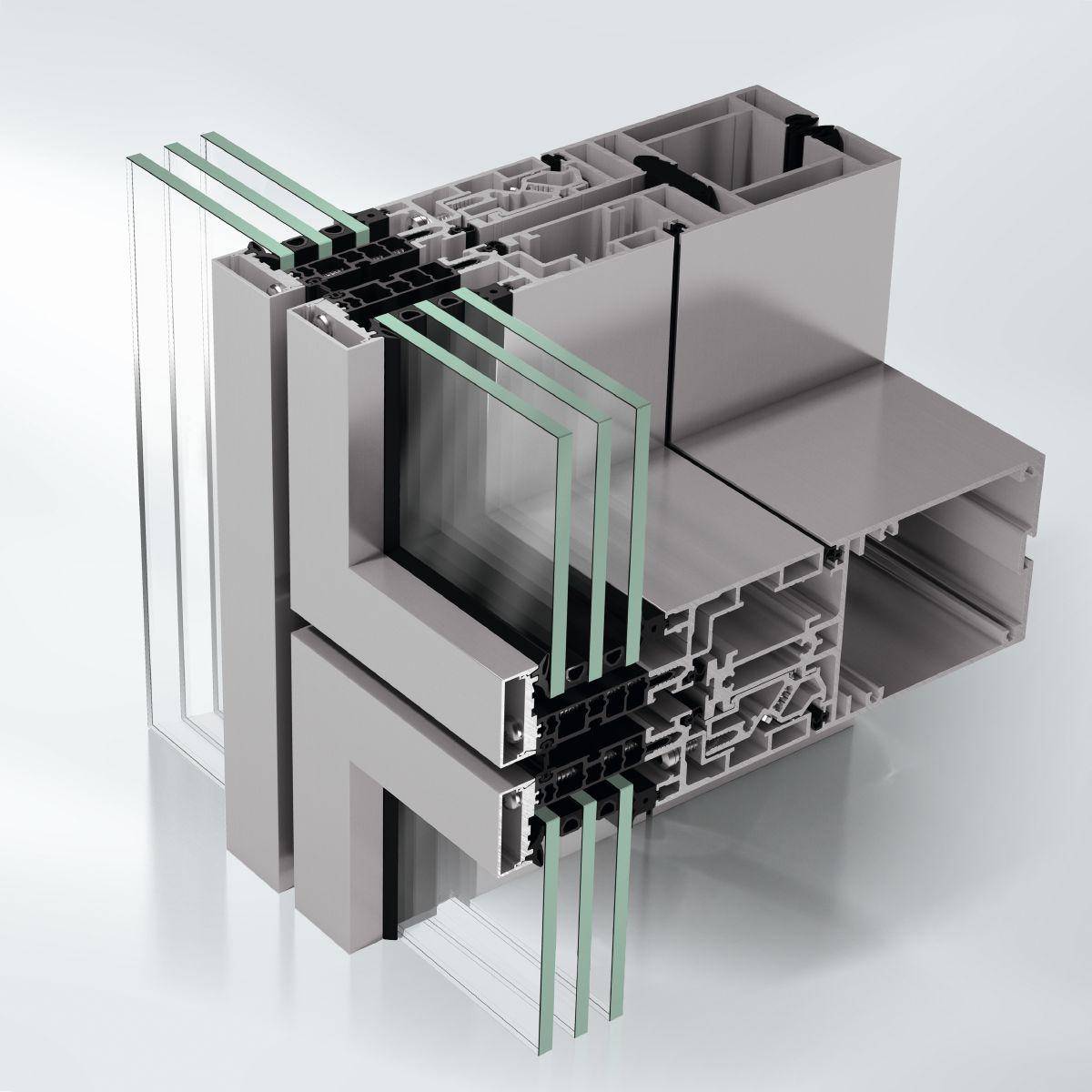

Highly transparent unitized facade with concealed opening units. The Schüco AF UDC 80 CV (aluminium facade unitized dynamic construction concealed vent) facade system has concealed projected top-hung or parallel-opening windows with an overall face width of only 80 mm, concealed in the load-bearing structure to ensure maximum facade transparency.

Features and benefits:

• A variety of options enables maximum design flexibility and use in project-specific unitized facade constructions, including large-scale units.
• Concealed projected top-hung or parallel-opening vents with large dimensions and high vent weights in manually operated designs.
• Can integrate fixed fields with high weights into the unit.
• Elegant framed look with a stable, mitred profile system with an optional visually reduced face width of 65 mm with no structural restrictions in the load-bearing structure.
• Horizontal butt joints with different expansion compensation options in the gasket system.
• Fixed fields and opening units look identical from the outside.
• All assemblies to include a Schueco Internet of Facades (IoF) ID tag with unique QR code linked to the product data, ongoing maintenance instructions and installation records creating a project’s digital twin.
• CWCT certified.
• Other versions available: Standard unitized facade (specified separately) or structural glazing (SG; consult manufacturer for details).

Standards:

• EN 12153.
• EN 12152.
• EN 1026.
• EN 12207.
• EN 12155.
• EN 12154.
• EN 1027.
• EN 12208.
• EN 13050.
• EN 1217.
• EN 13116.
• EN 12211.
• EN 12208.
• EN 12179.
• EN 13116.
• EN 14019.
• EN 13049.
• EN 13115.
• EN 12400.
• DIN EN ISO 12631.
• DIN EN ISO 10077.
• T2.
