Aluminium SL 68 SlimLine Window System - Aluminium Window System

Name: Aluminium SL 68 SlimLine Window System - Aluminium Window System
Brand: Reynaers Aluminium
SKU: b28BtWc2SK5xkh2cdiNcUv

Verified by manufacturer 12 days ago

Double glazed

Reynaers Aluminium

Third party certifications:

ISO 9001 Quality Management
Certificate type

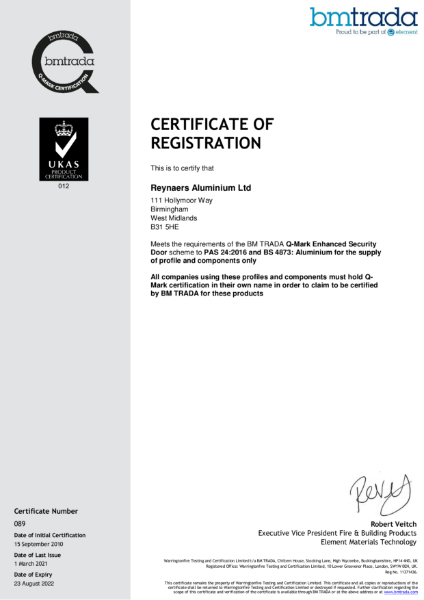

BM Trada
Certificate type

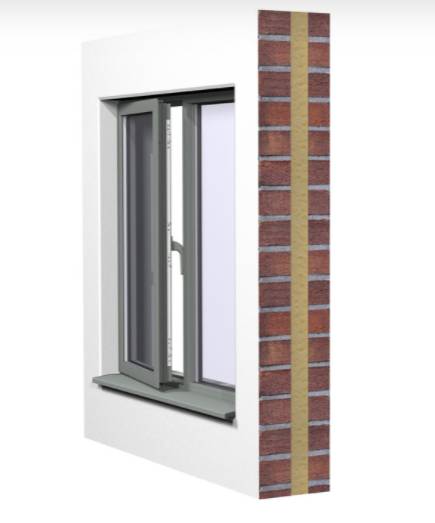

Outward opening, highly insulated aluminium windows with slim sightlines in a choice of colours and finishes.

Jump to:

+44 (0)121 4211999 Website

Application

Suitable for use in residential and commercial properties.

Highly insulated system for outward opening windows, meets the highest requirements concerning safety and stability.

Description

SL 68 slimline window is a highly insulated system for outward opening windows, which meets the highest requirements concerning safety and stability. It is suitable for use in residential as well as commercial properties, and this window maximizes the glass area to let in lots of natural daylight.

Features and benefits:

Outward opening internally or externally glazed casement window.
Drained and ventilated glazing with ethylene propylene diene monomer (EPDM) synthetic rubber gaskets.
Choose from a full range of polyester powder coat colours and anodized finishes.
Dual colour available offering a different colour inside and out.
Weather stripped profiles with polyamide thermal breaks.
High insulation variant available; consult manufacturer for details.
Ten-year systems guarantee provided as standard.
Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
Meets the very stringent requirements to be awarded the Secured by Design accreditation.

Fixing:

Fixings must ensure the window is retained securely within the opening without damage or distortion to the window frame.
Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm.

General information

Color	- Manufacturer guidance Full range of polyester powder coat and anodized colours available, including dual colour option (different colour inside and out).
Finish	Anodized Powder-coated Manufacturer guidance Powder-Coating & Anodising
Material	Aluminium Glass
Shape	Rectangle Square
Length	Bespoke
Width	Bespoke Guidance for specification option: Frame width 68 mm.
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Standard systems guarantee. Manufacturer guidance Reynaers guarantees that its systems meet the highest technical specifications and standards. We therefore issue a 10-year system guarantee. This is an insurance on the aluminium profiles, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee.

Uniclass	Pr_30_59_98_02 Aluminium window unitsPrimary
CAWS	L10/25 Aluminium windows L10/330 Aluminium windows

Specification data - Aluminium window units

Standard	Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Dimensions and configurations	Fixed. Outward opening, top-hung projecting. Guidance for specification option: Maximum vent size (h x w): 1200 x 1200 mm. Maximum weight: 50 kg. Outward opening, side-hung projecting. Guidance for specification option: Maximum vent size (h x w): 1300 x 738 mm. Maximum weight: 40 kg. Outward opening, top-hung. Guidance for specification option: Maximum vent size (h x w): 1200 x 1200 mm. Maximum weight: 50 kg. Outward opening, side-hung. Guidance for specification option: Maximum vent size (h x w): 1300 x 738 mm. Maximum weight: 40 kg. Inward opening, combined elements. Fixed window, round. Manufacturer guidance Insert drawing or schedule reference. Consult manufacturer's literature for further technical details.
Product performance	-
Weather performance	-
Air permeability	Up to 600 Pa (class 4).
Watertightness	Up to 600 Pa (class 9A).
Resistance to wind load	Up to 2400 Pa (class CE2400).
Safety	-
Security level	To PAS 24:2016 (UK Secured by Design standard).
Environmental	-
Acoustic performance rating	Rw (C;Ctr) = 36 (-1;-5) to 47 (-2;-7) dB. Guidance for specification option: Depending on the glazing type specified.
Thermal	-
Whole window U-value	0.99 W/m²K. Manufacturer guidance Thermal insulation, to BS EN 10077-2. Uw dependent on the frame/ vent combination and glass unit specification).
Frame	-

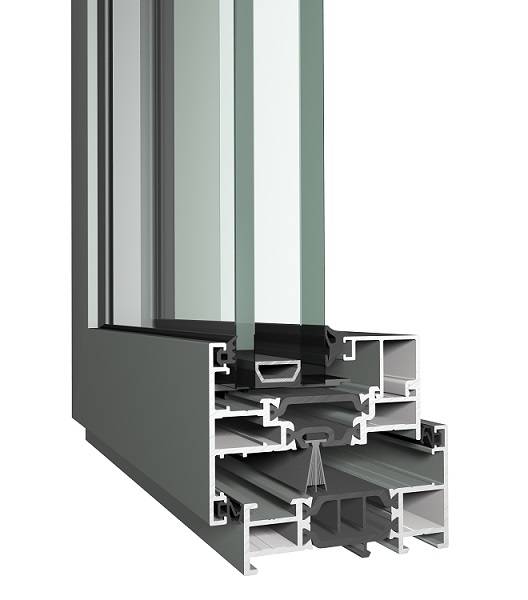

Profile	68 mm deep, extruded aluminium alloy. Manufacturer guidance Extruded from EN AW-6060 (AlMgSi0.5 F22) aluminium alloy to comply with BS EN 573-3 and BS EN 573-4. Designed and manufactured to comply with BS 4873. Vent frame members are 68 mm front to back and mitre cut at 45°. All corner joints are assembled with screwed corner cleats, thermal corner supports and rebate supports and glued. All joints are glued sealed during fabrication against water entry. Consult manufacturer for details. Profiles are insulated with polyamide strips, 25% glass fibre reinforced to BUtgb approval, separating the internal and external faces, mechanically jointed and glued to form a single compound profile with a minimum shearing force of 30 N/mm (statistic average). Dry glazed to accommodate a wide range of double and triple glazing units with internal clip-in aluminium glazing beads. Extruded synthetic rubber ethylene propylene diene monomer (EPDM) weather-stripping gaskets to DIN 7863 and ISO 3934, set in undercut grooves in the frame and vent. CE marked, and fully compliant with the EU Construction Products Directive (CPD) to the relevant product standard BS EN 14351-1 for windows and doors and BS EN 13830 for curtain walls. Reynaers Aluminium guarantees that the Reynaers Aluminium systems meet the technical specifications and standards of the country and the product in question. The current processing and maintenance regulations mentioned in the Reynaers Aluminium catalogues determine the extent of this ten-year guarantee (five-year guarantee for wearing parts). Consult manufacturer for details.
Finish as delivered	-
Coating	Powder coating to BS EN 12206-1. Powder coating to APA Qualicoat standard. Anodized to EWAA/ EURAS-Qualanod standard. Anodized to BS 3987.
Colour	- Manufacturer guidance Insert requirements based on coating specified. Profiles can be finished with different internal and external colours, powder coated or anodized: Powder coating available in a range of RAL or ‘Coatex’ colours; consult manufacturer for details. Anodized: Satin or bronze colours; consult manufacturer for details.
Film thickness (minimum)	Manufacturer's standard.
Ventilator	Not required. Trickle vent.
Glazing or infill	-
Requirements	Double glazed. Guidance for specification option: Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors) and thickness (26–43 mm). Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile and clip-in glazing beads. Can be glazed from the inside and outside.
Hardware	Handles, black. Handles, silver. Handles, white. Manufacturer guidance Standard handles, powder-coated finish.
Operation	-
Type	Manual. Remote operation. Guidance for specification option: Consult manufacturer for details.

Accessories	None. Window restrictor.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Material	Aluminium Glass
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance On a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information.
Recyclability	- Manufacturer guidance Aluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Due to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less. However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages. For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times. To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects: • Use recycled content: work together with suppliers to ensure the use of recycled content. • Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary to produce extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power). • Work closely together with European Aluminium to improve the global impact of aluminium production and improve sorting and recycling. This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift.
