Aluminium ES 50 Eco Window System
Verified by manufacturer 12 days ago
Double glazed
Double glazed
ISO 9001 Quality Management
Certificate type
Highly insulated aluminium window system with inward or outward opening options in a choice of colour and finish.
Application
Universal window system offering a range of solutions for inward and outward opening windows.
Can be combined with ES 50 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Description
ES 50 (Eco System 50) is a universal window system, with good performance when it comes to stability, thermal insulation and security.
The window system offers a range of solutions for inward and outward opening windows and can be combined with ES 50 doors, CP 130 and CP 155 sliding systems and Ventalis ventilation units.
Features and benefits:
- Inward and outward opening casement windows.
- Drained and ventilated glazing with EPDM synthetic rubber gaskets.
- Choose from a full range of polyester powder coat colours and anodized finishes.
- Dual colour available offering a different colour inside and out.
- Weather stripped profiles with polyamide thermal breaks.
- Ten-year systems guarantee provided as standard.
- Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
- Meets the very stringent requirements to be awarded the Secured By Design accreditation.
- Available as smoke and heat evacuation casements to EN 12101-2.
- CAD and BIM details available on request.
General information
Color | Manufacturer guidanceReynaers offers more than 450 colour AAMA finishes for their frames, including natural, champagne, bronze, and black 12. The AAMA classifications refer to durability and humidity exposure resistance, with higher numbers indicating longer-lasting finishes 2. Please contact us direct for further information. |
Finish | Anodized Powder-coated |
Material | Aluminium Glass |
Shape | Square Other |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Frame width 50 mm. |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Standard systems guarantee (five year guarantee for wearing parts). Manufacturer guidanceReynaers guarantees that its systems meet the highest technical specifications and standards. We therefore issue a 10-year system guarantee. This is an insurance on the aluminium profiles, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee. |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873. |
Dimensions and configurations | Fixed window.Guidance for specification option: Rectangular or square; round fixed window specified separately below. Inward opening, combined elements.Inward opening, double casement.Inward opening, third vent.Inward opening, tilt.Inward opening, tilt turn.Inward opening, turn.Inward opening, turn tilt.Outward opening, combined elements.Outward opening, double casement.Outward opening, top hung.Outward opening, top hung with friction stays.Outward opening, turn.Outward opening, turn with friction stays.Round window, fixed.Round window, horizontal opening.Round window, vertical opening.Thermo front.Thermo front, double casement.Manufacturer guidanceInsert drawing or schedule reference. Consult manufacturer's literature for further technical details. |
Product performance | |
Weather performance | |
Air permeability | Up to 600 Pa (class 4).Manufacturer guidancePlease refer to Reynaers product CE Passport certificates for clarification. |
Watertightness | Up to 750 Pa (class E750).Manufacturer guidancePlease refer to Reynaers product CE Passport certificates for clarification. |
Resistance to wind load | Up to 1600 Pa (class C4).Manufacturer guidancePlease refer to Reynaers product CE Passport certificates for clarification. |
Safety | |
Security level | PAS24:2013 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).Manufacturer guidancePlease refer to Reynaers product CE Passport certificates for clarification. |
Environmental | |
Acoustic performance rating | Rw (C;Ctr) = 34 (-1;-4) to 39 (-1;-3) dB.Guidance for specification option: Dependent on the glazing type specified. |
Thermal | |
Whole window U-value | 1.6 W/m²K.Guidance for specification option: Dependent on the frame/ vent combination and glass unit specification. |
Frame | |
Profile | ES 50 Eco System.Manufacturer guidanceA thermally improved two-chamber system for windows.
|
Finish as delivered | |
Coating | Powder coating to BS EN 12206-1.Powder coating to APA Qualicoat standard.Anodized to EWAA/ EURAS-Qualanod standard.Anodized to BS 3987. |
Colour | Manufacturer guidanceInsert requirements based on coating specified. Profiles can be finished with different internal and external colours, powder coated or anodized:
|
Film thickness (minimum) | Manufacturer's standard. |
Ventilator | Not required.Ventalis trickle ventilator.Guidance for specification option: A controllable ventilation system with a self-regulating airflow. The patented self-regulating units automatically open and close the air inlet when wind pressure increases or decreases, keeping the incoming airflow constant. Acoustic option available to 34/43 dB. Consult manufacturer for ironmongery recommendations and details. |
Glazing or infill | |
Requirements | Double glazed.Guidance for specification option: Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors) and thickness (4–32 mm). Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile and clip-in glazing beads. Can be glazed from the inside and outside. |
Hardware | Horizon handles, anodized.Horizon handles, powder coated.Guidance for specification option: Insert requirements; available in one of 400+ RAL colours. Orchid handles, black.Orchid handles, white.Orchid handles, anodized.Shield handles, unpolished natural anodized.Guidance for specification option: Complies with burglar resistance classes 2 and 3. Standard handles. |
Operation | |
Type | Manual.Remote operation. |
Fixing features | Manufacturer guidanceInsert requirements. Fixings must ensure the window is retained securely within the opening without damage or distortion to the window frame. Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm. |
Accessories | None. Window restrictor. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Aluminium Glass |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceOn a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information. |
Recyclability | 100% Manufacturer guidanceAluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceDue to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less. However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages. For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times. To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects: • Use recycled content: work together with suppliers to ensure the use of recycled content. • Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary to produce extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power). • Work closely together with European Aluminium to improve the global impact of aluminium production and improve sorting and recycling. This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift. |
Third party certifications
ISO 9001 Quality Management
QMS ISO 9001
Literature

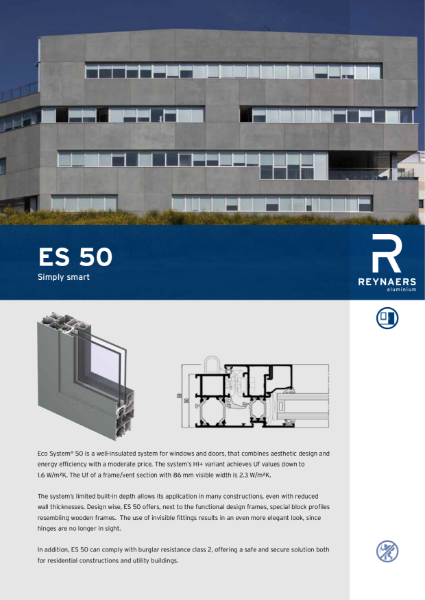

Aluminium Window and Door System - Eco System ES 50
Aluminium Systems Accessories - Handles
ISO 14001:2004 Certificate
ISO 50001:2011 Certificate
ISO 9001:2008 Certificate
Product Overview Brochure for Aluminium Windows, Doors, Curtain Walls, Sliding Systems, Ventilation and Sunscreen Shading
Reynaers Aluminium Professional Services Brochure
Reynaers Aluminium Reference book
Reynaers EPDs
Case studies
Reynaers Knowledge Centre, Aluminium systems, visit the showroom

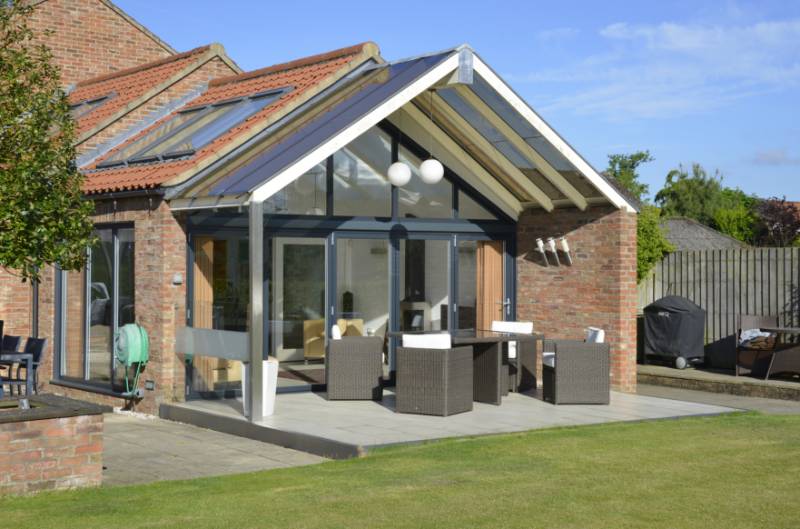

Self-built Yorkshire family home, featuring Reynaers bi-folding aluminium doors
