Aluminium SL 38 SlimLine Window System - Aluminium Window System

Name: Aluminium SL 38 SlimLine Window System - Aluminium Window System
Brand: Reynaers Aluminium
SKU: oE8S6vGTSiBh4hsb8zB1HR

Verified by manufacturer 12 days ago

Double glazed

Reynaers Aluminium

Third party certifications:

Cradle to Cradle Certified
Certificate type
BM Trada
Certificate type
ISO 9001 Quality Management
Certificate type

Slimline single and composite, highly insulated aluminium windows in a choice of colour and finish.

Jump to:

+44 (0)121 4211999 Website

Application

Slender steel look suited for modern architecture and renovation of steel-frames.

Description

SL 38 SlimLine is a universal window system, with good performance when it comes to stability, thermal insulation and security with slim sight lines.

The window system offers a range of solutions for inward and outward opening windows and can be combined with SL 38 SlimLine doors.

Features and benefits:

Inward and outward opening casement windows in three profiles.
Drained and ventilated glazing with ethylene propylene diene monomer (EPDM) synthetic rubber gaskets.
Choose from a full range of polyester powder coat colours and anodized finishes.
Dual colour available offering a different colour inside and out.
Weather stripped profiles with polyamide thermal breaks.
Ten-year systems guarantee provided as standard.
Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
Meets the very stringent requirements to be awarded the Secured by Design accreditation.
CAD and BIM details available on request.

General information

Color	- Manufacturer guidance Reynaers offers more than 450 colour AAMA finishes for their frames, including natural, champagne, bronze, and black 12. The AAMA classifications refer to durability and humidity exposure resistance, with higher numbers indicating longer-lasting finishes 2. Please contact us direct for further information.
Finish	Anodized Powder-coated
Material	Aluminium Glass
Shape	Rectangle Square Circle Guidance for specification option: Fixed element only.
Length	Bespoke
Width	Bespoke Guidance for specification option: Frame width 38 mm.
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Standard systems guarantee (five-year guarantee for wearing parts). Manufacturer guidance Reynaers guarantees that its systems meet the highest technical specifications and standards. We therefore issue a 10-year system guarantee. This is an insurance on the aluminium profiles, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee

Uniclass	Pr_30_59_98_02 Aluminium window unitsPrimary
CAWS	L10/25 Aluminium windows L10/330 Aluminium windows

Specification data - Aluminium window units

Standard	Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Dimensions and configurations	Fixed, rectangular/ square. Inward opening, combined elements. Inward opening, double casement. Inward opening, tilt turn. Inward opening, turn only. Inward opening, turn tilt. Outward opening, top hung. Outward opening, side hung. Fixed window, round. Manufacturer guidance Insert drawing or schedule reference. Maximum vent height/ width: 2800/ 1200 mm. Maximum element weight: 170 kg. Consult manufacturer's literature for further technical details.
Product performance	-
Fire performance	-
Fire resistance	Manufacturer's standard. Guidance for specification option: Carries an EW 30 rating. Note that the manufacturer does not recommend the use of this product in a fire rated application.
Weather performance	-
Air permeability	Up to 600 Pa (class 4).
Watertightness	Up to 600 Pa (class 9A).
Resistance to wind load	Up to 1600 Pa (class C4).
Safety	-
Security level	PAS24:2013 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).
Environmental	-
Acoustic performance rating	Rw (C;Ctr) = 37 (-1;-4) to 44 (-2;-5) dB. Guidance for specification option: Depending on the glazing type specified.
Thermal	-
Whole window U-value	1.4 W/m²K. Manufacturer guidance Thermal insulation, to BS EN 10077-2:2012. Uw dependent on the frame/ vent combination and glass unit specification).
Frame	-

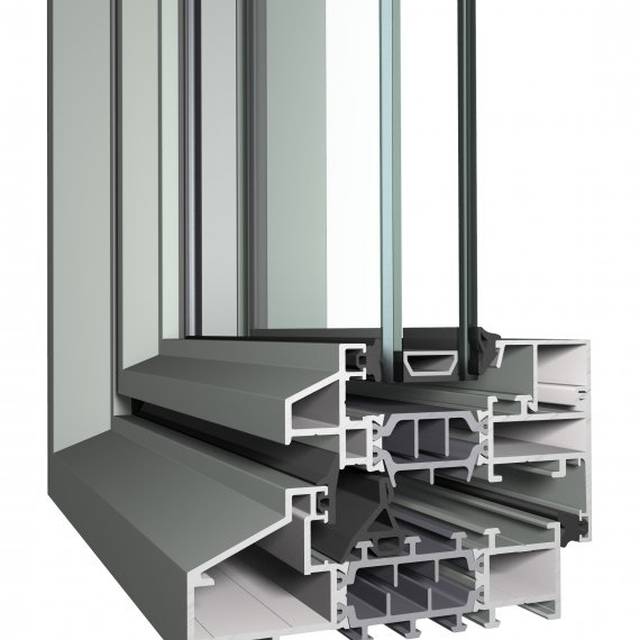

Profile	Aluminium SL 38 SlimLine Classic (38 mm). Guidance for specification option: 24° slope on frames, casements and transoms. Aluminium SL 38 SlimLine Ferro (38 mm). Guidance for specification option: Square protruding detail of 13.6 x 7 mm on casements. Aluminium SL 38 SlimLine Cubic (38 mm). Guidance for specification option: Small drip nose on vents to reduce water load on gaskets. Manufacturer guidance Extruded from EN AW-6060 (AlMgSi0.5 F22) aluminium alloy to comply with EN 573, parts 3 and 4. Designed and manufactured to comply with BS 4873. Vent frame assemblies are 109 mm front to back and mitre cut at 45°. All corner joints to be assembled with screwed corner cleats, thermal corner supports and rebate supports and glued. All joints are sealed during fabrication against water entry. Insulated with glass-fibre-reinforced polyamide strips, separating the internal and external faces, mechanically jointed and glued to form a single compound profile. Dry glazed to accommodate a wide range of double and triple glazing units with internal clip-in aluminium glazing beads. Weather-stripping to be ethylene propylene diene monomer (EPDM) extruded synthetic rubber gaskets to DIN 7863 and ISO 3934, set in undercut grooves in the frame and vent. CE marking fully compliant with the EU Construction Products Directive (CPD) to the relevant product standard BS EN 14351-1 for windows and doors and BS EN 13830 for curtain walls. Manufactured and supplied under the requirements of ISO 14001, the internationally accepted standard that outlines an effective environmental management system. Manufactured and supplied under a quality system certified to BS EN ISO 9001: 2000. Manufacturer guarantees that the system meets the technical specifications and standards of the country and the product in question. The current processing and maintenance regulations mentioned in the manufacturer's catalogues determine the extent of this ten-year guarantee (five-year guarantee for wearing parts).
Finish as delivered	-
Coating	Powder coating to BS EN 12206-1. Powder coating to APA Qualicoat standard. Anodized to EWAA/ EURAS-Qualanod standard. Anodized to BS 3987:1991.
Colour	- Manufacturer guidance Insert requirements based on coating specified. Profiles can be finished with different internal and external colours, powder coated or anodized: Powder coating available in a range of RAL or ‘Coatex’ colours; consult manufacturer for details. Anodized: Satin or bronze colours; consult manufacturer for details.
Film thickness (minimum)	Manufacturer's standard.
Glazing or infill	-
Requirements	Double glazed. Guidance for specification option: Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors) and thickness (16–55 mm). Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile and clip-in glazing beads. Can be glazed from the inside and outside.
Hardware	Horizon handles, anodized. Guidance for specification option: Insert requirements. Horizon handles, powder coated. Guidance for specification option: Insert requirements; available in one of 400+ RAL colours- consult manufacturer's literature for details. Orchid handles, white. Orchid handles, black. Orchid handles, anodized. Guidance for specification option: Insert requirements. Shield handles, unpolished natural anodized. Guidance for specification option: Insert requirements. Also complies with burglar resistance classes 2 and 3.
Operation	-
Type	Manual. Remote operation. Guidance for specification option: Consult manufacturer for details.
Fixing features	- Manufacturer guidance Insert requirements. Fixings must ensure the window is retained securely within the opening without damage or distortion to the window frame. Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm.

Accessories	None Window restrictor

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Material	Aluminium Glass
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance On a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information.
Recyclability	- Manufacturer guidance Aluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Due to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less. However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages. For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times. To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects: • Use recycled content: work together with suppliers to ensure the use of recycled content. • Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary to produce extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power). • Work closely together with European Aluminium to improve the global impact of aluminium production and improve sorting and recycling. This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift.
