Aluminium Rainwater Pipe - Round Contemporary - Downpipe

Verified by manufacturer 24 days ago

Alloy 6063 (PPC or Mill Finish)

Dales Fabrications Ltd - Aluminium Eaves Products Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

  • EN 13501-1 (Efectis)

    EN 13501-1 (Efectis)

    Certificate type

  • R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    Certificate type

Aluminium round rainwater pipes.

Jump to:
BOS
+44 (0)115 9301521 Website

Application

Dales standard pipe brackets are designed to fix the pipe very close to the wall and firmly clamp the pipe into position.

Description

Dales round aluminium rainwater pipes are available in three standard sizes. Other square pipework can be supplied to order.

Dales standard pipe brackets are designed to fix the pipe very close to the wall and firmly clamp the pipe into position.

Dales standard rainwater pipe systems are of a dry-jointed nature.


Features and benefits:

  • Design makes it difficult for vandals to climb.
  • Various non-standard components, e.g. offsets, standoff brackets and special hoppers, are available to suit individual requirements.
  • A wide range of standard components are available, however, as manufacturers, Dales Fabrications Ltd is able to offer purpose made components to suit individual project requirements.


Secret Fix Pipework:

Dales square pipe is available with secret fixing and internal pipe jointing. This pipework offers improved security and very clean lines, Contact the manufacturer for details.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Manufacturer guidance

Refer to manufacturers website for available colour choices.

Finish

Powder-coated

Anodized

Mill

Manufacturer guidance

Available in Special Effect, consult manufacturer literature.

Material

Aluminium

Shape

Circle

Length

1000 mm

1500 mm

2000 mm

3000 mm

Width

76.2 mm

101.6 mm

152.4 mm

Manufacturer guidance

Round profile.

Height

76.2 mm

101.6 mm

152.4 mm

Manufacturer guidance

Round profile.

Warranty description

25 year

Uniclass

Pr_65_52_03_04 Aluminium rainwater pipes and fittingsPrimary

CAWS

R10/30 Aluminium pipework

R10/370 Aluminium pipework

Product range

Rainwater Downpipes

Specification data - Aluminium rainwater pipes and fittings

Section

Round.

Finish and colour

-

Finish

Powder coated.

Mill.

Colour

Standard (PPC).

Guidance for specification option:

Contact manufacturer and insert requirements.

RAL & BS (PPC).

Guidance for specification option:

Contact manufacturer and insert requirements.

Metallic (PPC).

Guidance for specification option:

Contact manufacturer and insert requirements.

Anodite (PPC).

Guidance for specification option:

Contact manufacturer and insert requirements.

Special (PPC).

Guidance for specification option:

Contact manufacturer and insert requirements.

Film thickness (minimum)

60 microns.

Diameter

76.2 mm.

101.6 mm.

152.4 mm.

Length

1 m.

1.5 m.

2 m.

3 m.

Thickness

1.6 mm.

3 mm W.T.

Elbows

Not required.

92.5° elbow.

112.5° elbow.

135° elbow.

As drawing ___.

Show more

Access pipe

Not required.

Rodding pipe.

As drawing ___.

Contractor's choice.

Pipe connector

Not required.

Connector.

As drawing ___.

Contractor's choice.

Hopper

Not required.

As drawing ___.

Contractor's choice.

Offsets (adjustable)

Not required.

Maximum 400 mm offset.

Maximum 600 mm offset.

Maximum 800 mm offset.

Maximum 1000 mm offset.

Show more

Brackets

Bracket.

Guidance for specification option:

Standard round pipe bracket.

Stand off bracket.

Guidance for specification option:

30 mm offset round pipe bracket.

As drawing ___.

Contractor's choice.

Texture

Gloss.

Guidance for specification option:

Subject to availability: https://www.dales-eaves.co.uk/finishes/

Matt.

Guidance for specification option:

Subject to availability: https://www.dales-eaves.co.uk/finishes/

Satin.

Guidance for specification option:

Subject to availability: https://www.dales-eaves.co.uk/finishes/

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

78 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Assurance

Independent sustainability assessment

Independent sustainability assessment

CLOSED LOOP RECYCLING SCHEME (CAB)

EN 13501-1 (Efectis)

EN 13501-1 (Efectis)

INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION

Literature

Syntha Pulvin Fire Certificate

Syntha Pulvin Fire Certificate

Rainwater Pipe: Contemporary Round

Rainwater Pipe: Contemporary Round

Case studies

Fascia Soffit System and Contemporary Diameter Rainwater Pipes at Justice Court, Norfolk

Fascia Soffit System and Contemporary Diameter Rainwater Pipes at Justice Court, Norfolk

Solar Shading and Delta 150 Gutter at Lymington Shore

Solar Shading and Delta 150 Gutter at Lymington Shore

Elliptical Fascia with THX Soffit Panel at Empress Heights, Southampton

Elliptical Fascia with THX Soffit Panel at Empress Heights, Southampton

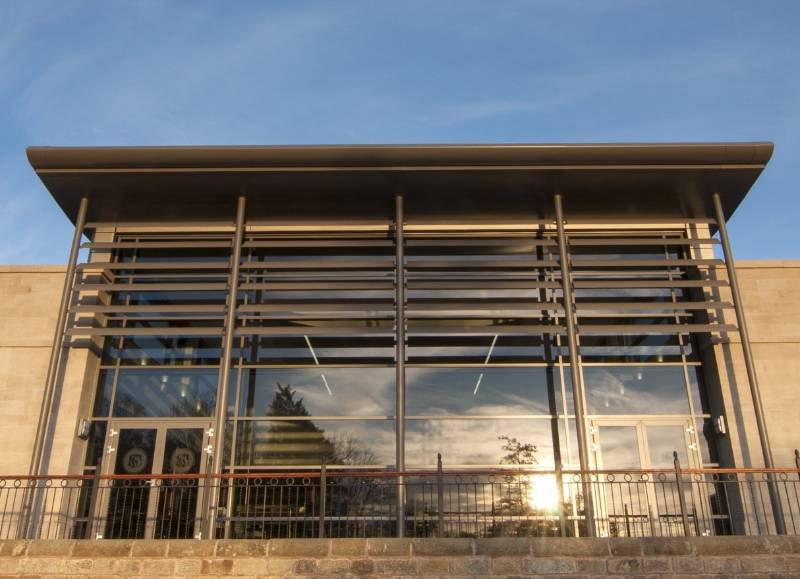

Stonyhurst College’s New Refectory Keeps cool with Solar Shades from Dales

Stonyhurst College’s New Refectory Keeps cool with Solar Shades from Dales

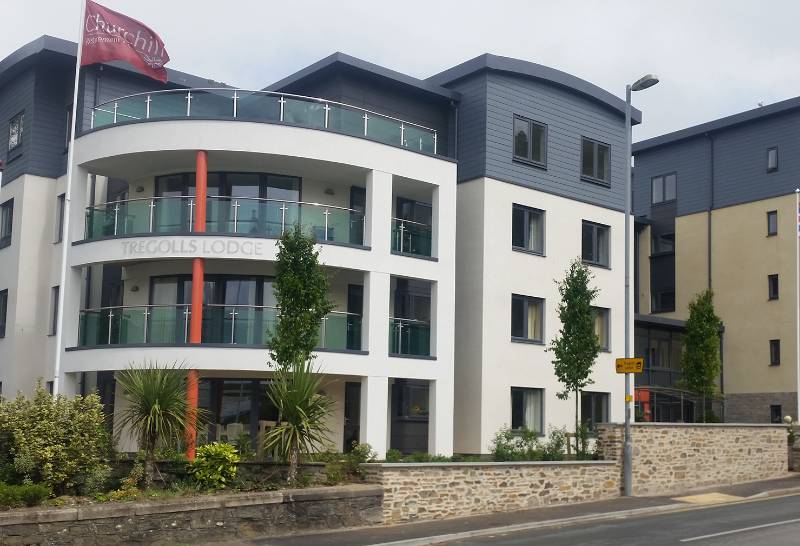

Vertical Aluminium Eaves System with Curved Verge at Tregolls Lodge, Truro
