Aluminium Rainwater Pipe: Rectangular Traditional - Downpipe
Verified by manufacturer 2 months ago
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
Aluminium Rectangular traditional rainwater pipe.
Application
Aluminium Rainwater Pipe suitable for:
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description

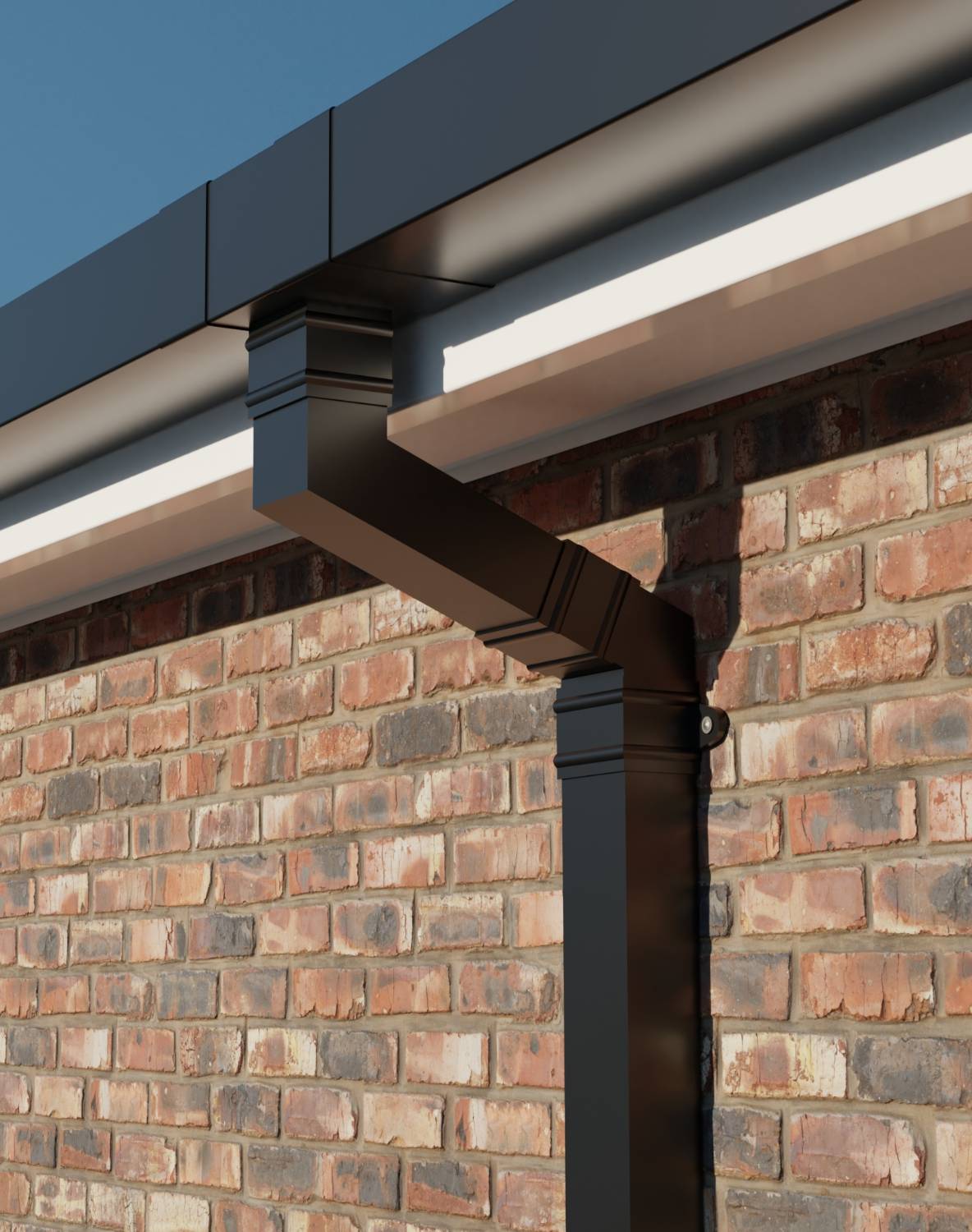

The rectangular traditional rainwater pipes with integral cast collars offer the appearance of traditional cast iron. The rainwater pipe is available in 75 x 100 mm size. Pipes are dry-jointed with a factory-welded socket and fixed through the eared collars at joint locations.
Features and benefits:
- Offers savings in both weight and cost compared to cast iron.
- A wide range of standard components are available.
- Purpose-made components to suit individual project requirements are available.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Powder-coated Mill |
Material | Aluminium |
Shape | Rectangle |
Length | 2000 mm 1500 mm 1000 mm |
Width | 100 mm |
Height | 75 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Product range |
Specification data - Aluminium rainwater pipes and fittings
Form | Extruded with cast fittings. |
Section | Rectangular. |
Size (nominal) | 100 x 75 mm. |
Minimum thickness or gauge | 2 mm. |
Finish and colour | |
Finish | Powder coated.Mill. |
Colour | Standard (PPC).Guidance for specification option: Contact manufacturer and insert requirements. RAL & BS (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Metallic (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Anodite (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Special (PPC).Guidance for specification option: Contact manufacturer and insert requirements. |
Integral accessories | Cast collars. |
Accessories | Not required. Pipe connectors. Square to round adaptors. Pipe elbows. Rodding access pieces. |
Powder coating | To EN 13501-1: 2018, A2-s1, d0. |
Jointing | Dry socket joint. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 78 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
