Aluminium Kalzip Standing Seam - Structural Deck Roof System - Standing Seam Roofing and Cladding
Verified by manufacturer 10 days ago
0.20 W/m²K U-Value System (50/333, 50/429, 50/444)
0.20 W/m²K U-Value System (50/333, 50/429, 50/444)
European Technical Approval (ETA)
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
EPD
Certificate type

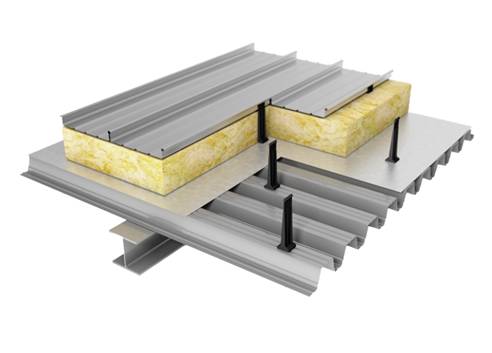

Kalzip standing seam system comprising of aluminium outer skin, E-clips and tophats with lightweight non-combustible insulation, vapour control layer and an inner structural deck profile.
Application
Aluminium Standing Seam system for roof and wall applications.
Description
Kalzip structural decking provides an economical solution for long span installations and eliminates the need for purlins.
For enhanced acoustic absorption, decking sheets can be perforated and can support mass, such as increased insulation or board, which may be introduced for more rigorous acoustic specifications.
With a choice of steel or aluminium, a selection of profiles, gauges and sheet lengths – this range of products has been developed to extend the versatility of Kalzip, making it suitable for a wide range of applications.
As a general rule, steel is cost effective and provides the optimum in loading and spanning capability; whereas aluminium offers exceptional durability in buildings with high humidity levels such as swimming pools and wet industrial process plants, e.g. paper mills.
Where structural decking is installed there is a reduced requirement for secondary steelwork. The Kalzip structural decking sheet is generally laid transverse to the direction of the Kalzip standing seam roof sheet and spans between the main steel rafters. Typical rafter centres would be approximately 3 to 8 metres.
The Kalzip clips are installed in a diagonal layout so that all external roof loads can be evenly distributed to the structural decking sheet. The frequency of clips may be increased at the perimeter of the building where higher wind loads occur.
The gauge and profile of the Kalzip structural decking sheet is therefore determined by the rafter centres, all external roof loads, internal wind loads, service loads (e.g. lighting) and the dead weight of the construction components.
The complete range of Kalzip 65, 50 and AF standing seam profiles are suitable for use with Kalzip structural decking.
General information
Color | Bronze Gold Copper Other Guidance for specification option: Available in natural and pre-weathered aluminium, zinc, various bronze and gold patinas, copper, stainless steel and coated to any RAL or BS colour. Refer to product literature for details. Manufacturer guidanceVarious colour options available refer to product literature. |
Finish | Galvanized Textured Anti-graffiti Anodized Coated Manufacturer guidanceVarious finish options available refer to product literature. |
Material | Aluminium Copper Stainless steel Zinc Steel |
Shape | Other Guidance for specification option: Flexible form and shape. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year 20 year 25 year 30 year 35 year |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Specification data - Metal profiled sheet self-supporting roof covering systems
Liner sheets | |
Material | Kalzip Structural Deck D32/1000.Kalzip Structural Deck D35/900.Kalzip Structural Deck D46/900.Kalzip Structural Deck D60/800.Kalzip Structural Deck D100/700.Kalzip Structural Deck D137/930.Kalzip Structural Deck D153/840.Kalzip Structural Deck D158/750.Kalzip Structural Deck D159/750.Kalzip Structural Deck D200/750.Kalzip Structural Deck D210/600.Manufacturer guidanceStructural deck sheet. |
Primary fasteners | 5.5 mm diameter carbon steel self-drilling fasteners (SD-3-T15-5.5x25). |
End and side laps | Side laps to be stitched at maximum 400 mm centres with 4.8 mm diameter carbon steel self-drilling stitching fasteners (SL2-T-4.8x20). |
Air and vapour control layer | |
Material | Kalzip VCL Clear - Reinforced virgin polyethylene with 530 MNs/g vapour resistivity.Guidance for specification option: Continuity:
Repairs:
|
Sealing | Seal with one row of sealant tape, not less than 50 mm. |
Spacers | Support clips, steel reinforced polyamide Kalzip E-clips type E160 fixed to 30 mm deep steel tophats channels. |
Thermal insulation | Kalzip Plus40 Insulation, 205 mm.Guidance for specification option: Manufactured with ECOSE™ technology. Finalized insulation thickness dependant on support clip frequency - subject to calculation by Kalzip. |
Firestops | To accurately match sheet profile. Adhesive recommended by profile filler manufacturer. |
External sheets | |
Material | Kalzip Standing Seam 50/333.Kalzip Standing Seam 50/429.Kalzip Standing Seam 50/444.Manufacturer guidanceSpecify Finish separately below. |
Primary fasteners | 6 mm diameter stainless steel torque controlled fasteners (SDK3-S-377-6.0x45).Guidance for specification option: Position and frequency to be determined by calculation by Kalzip Technical. |
Secondary fixings | Steel tophats to be secured to steel saddles at purlin positions.Guidance for specification option: Position and frequency to be determined by calculation by Kalzip Technical. |
End and side laps | Sheets to be supplied in continuous lengths and mechanically seamed to support clips with Kalzip zipping machine. |
Fascia | |
Material | Manufacturer guidanceCappings, closure pieces, flashings, trims, gutters, fillers, spacers, tapes, sealants, fixings, etc, where not specified, to be types recommended by the cladding manufacturer. |
Fasteners | Manufacturer guidanceType(s), size(s), material(s) and finish(es) as specified, or in the absence of such specification, as recommended for the purpose by the cladding manufacturer. |
Soffit | |
Material | Manufacturer guidanceSoffits, where not specified, to be recommended by the cladding manufacturer. |
Support | Frequency of soffit supports determined by project engineer. |
Gutters | |
Material | Gutters to be sourced through the Kalzip approved installer.Guidance for specification option: Detailed as per Kalzip standard details and recommendations. |
Support | Frequency of gutter supports determined by project engineer. |
System accessories | Extruded aluminium alloy (EN AW-6061) gable end hooks.Extruded aluminium alloy (EN AW-6063) drip angle 40 x 20 mm.Extruded aluminium alloy (EN AW-6063) flat bar 22 x 6 mm.Extruded aluminium alloy (EN AW-6063) gable end channel.Extruded aluminium alloy (EN AW-6063) tolerance gable clip extrusion.Fabricated aluminium alloy (EN AW-3004) flashings.Fabricated aluminium alloy (EN AW-3004) ridge closures (KZ 65/400).Fabricated welded soaker units.Kalzip profile eaves fillers.Kalzip profile ridge fillers.Manufacturer guidanceFabricated aluminium alloy (EN AW-3004) flashings and Fabricated welded soaker units:
|
Gauge | 0.70 mm gauge hot-dip zinc coated steel. 0.90 mm gauge hot-dip zinc coated steel. 1.20/1.25 mm gauge hot-dip zinc coated steel. 0.90 mm aluminium. 1.20 mm aluminium. Manufacturer guidanceMaterial gauge. |
Thermal transmittance (U-Value) | 0.20 W/m²K. |
Bearing width | 58 mm (minimum). |
Type | Kalzip profiled fillers - Closed cell cross-linked polyethylene with a minimum density of 30 kg/m³. |
Thickness | Guidance for specification option: 30 mm minimum. Locate where shown on drawings and wherever necessary to close off corrugation cavities from the outside and inside of the building. Ensuring a tight fit, leaving no gaps. |
Finish | Aluminium, AluPlusPatina. Aluminium, natural stucco embossed. Aluminium, with a PVDF paint coating. Aluminium, with an HPC paint coating. AluPlusZinc. Manufacturer guidanceExternal sheets finish only. |
Shape | Guidance for specification option: Insert requirements to suit project requirements. |
Dimensions | Guidance for specification option: Insert requirements to suit project requirements. |
Third-party certification | British Board of Agrément Certification No. 98/3481. |
Movement joints | Movement joint cover detail to be as per Kalzip Ltd recommended detail KZ-0-MISC-K-8-006. Guidance for specification option: Leave space between sheets to coincide with structural movement joints. Fix weathertight movement joint cover to sheets on one side only. |
Fixing method | Fixing sheets generally: |
Installation | Kalzip sheets to be installed by mechanically seaming sheets to support clips with Kalzip zipping machine. |
Solar system | Not required. Kalzip DICONAL mounting system mechanically fixed to Kalzip standing seam profiles without penetrating the roofing material. Fixing method to comply with the manufacturer’s recommendations, ensuring the integrity of the roofing system and compatibility with project-specific requirements. Guidance for specification option: Please contact Kalzip Technical for layout and component breakdown. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium Copper Stainless steel Zinc Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.61 kg CO₂ eq/kg Manufacturer guidanceRefer to EPD certificate. |
Recyclability | Excellent |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Recycled aluminium top sheet. |
Expected Life | 40 year |
Third party certifications
Third party certifications
Literature
Kalzip systems
Kalzip Finishes and Colours
Kalzip case studies
98/3481 Kalzip secret fix roof systems
