Bronze, Gold, Copper, Other

-

-

Galvanized, Textured, Anti-graffiti, Anodized, Coated, Copper, Embossed, Metallic, Gloss, Mill, Matt, PVdF, Painted, Powder-coated, Pre-weathered, Stainless steel

-

-

Aluminium, Copper, Stainless steel, Zinc, Steel, Rock mineral wool, Glass mineral wool, Metal

-

-

Other

-

-

Bespoke

-

-

Bespoke

-

-

Bespoke

-

-

15 year, 20 year, 25 year, 30 year, 35 year, 40 year, Ten year, Other

-

-

-

-

-

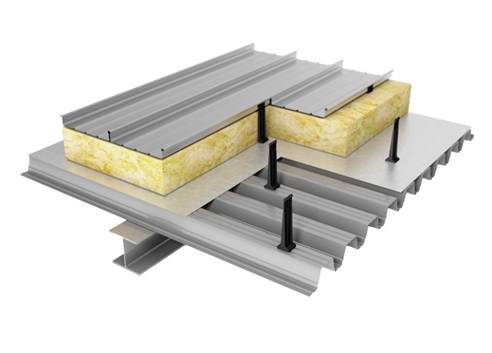

Kalzip Structural Deck D32/1000., Kalzip Structural Deck D35/900., Kalzip Structural Deck D46/900., Kalzip Structural Deck D60/800., Kalzip Structural Deck D100/700., Kalzip Structural Deck D137/930., Kalzip Structural Deck D153/840., Kalzip Structural Deck D158/750., Kalzip Structural Deck D159/750., Kalzip Structural Deck D200/750., Kalzip Structural Deck D210/600.

-

-

5.5 mm diameter carbon steel self-drilling fasteners (SD-3-T15-5.5x25).

-

-

Side laps to be stitched at maximum 400 mm centres with 4.8 mm diameter carbon steel self-drilling stitching fasteners (SL2-T-4.8x20).

-

-

-

-

-

Kalzip VCL Clear - Reinforced virgin polyethylene with 530 MNs/g vapour resistivity.

-

-

Seal with one row of sealant tape, not less than 50 mm.

-

-

Support clips, steel reinforced polyamide Kalzip E-clips type E160 fixed to 30 mm deep steel tophats channels.

-

-

Kalzip Plus40 Insulation, 205 mm.

-

-

To accurately match sheet profile. Adhesive recommended by profile filler manufacturer.

-

-

-

-

-

Kalzip Standing Seam 50/333., Kalzip Standing Seam 50/429., Kalzip Standing Seam 50/444.

-

-

6 mm diameter stainless steel torque controlled fasteners (SDK3-S-377-6.0x45).

-

-

Steel tophats to be secured to steel saddles at purlin positions.

-

-

Sheets to be supplied in continuous lengths and mechanically seamed to support clips with Kalzip zipping machine.

-

-

-

-

-

Frequency of soffit supports determined by project engineer.

-

-

-

-

-

Gutters to be sourced through the Kalzip approved installer.

-

-

Frequency of gutter supports determined by project engineer.

-

-

Extruded aluminium alloy (EN AW-6061) gable end hooks., Extruded aluminium alloy (EN AW-6063) drip angle 40 x 20 mm., Extruded aluminium alloy (EN AW-6063) flat bar 22 x 6 mm., Extruded aluminium alloy (EN AW-6063) gable end channel., Extruded aluminium alloy (EN AW-6063) tolerance gable clip extrusion., Fabricated aluminium alloy (EN AW-3004) flashings., Fabricated aluminium alloy (EN AW-3004) ridge closures (KZ 65/400)., Fabricated welded soaker units., Kalzip profile eaves fillers., Kalzip profile ridge fillers.

-

-

0.70 mm gauge hot-dip zinc coated steel.
, 0.90 mm gauge hot-dip zinc coated steel., 1.20/1.25 mm gauge hot-dip zinc coated steel., 0.90 mm aluminium., 1.20 mm aluminium., 1.50 mm aluminium.

-

-

0.20 W/m²K.

-

-

58 mm (minimum).

-

-

Kalzip profiled fillers - Closed cell cross-linked polyethylene with a minimum density of 30 kg/m³.

-

-

-

-

-

Aluminium, AluPlusPatina., Aluminium, natural stucco embossed., Aluminium, with a PVDF paint coating., Aluminium, with an HPC paint coating., AluPlusZinc., Copper., Stainless steel.

-

-

-

-

-

-

-

-

British Board of Agrément Certification No. 98/3481.
Institute fur Bautechnic Zulassungbescheid N R 14.1-181.

-

-

Movement joint cover detail to be as per Kalzip Ltd recommended detail KZ-0-MISC-K-8-006.

-

-

Fixing sheets generally:
Remove all drilling swarf, dust, debris and any other foreign matter before finally fixing sheets into position. Protect sheets adequately during fixing and up to practical completion against mechanical damage, corrosion and disfigurement. Rectify any defects as quickly as practicable to minimise damage and nuisance. Install fasteners to correct tightness using any special tools recommended by the manufacturer.

-

-

Kalzip sheets to be installed by mechanically seaming sheets to support clips with Kalzip zipping machine.
Kalzip sheets to be installed as per cladding manufacturer's instructions, British Board of Agrément Certification No. 98/3481 and Institute fur Bautechnic Zulassungbescheid N R 14.1-181.
Only roofing contractors who are members of Kalzip Ltd’ approved roofing contractors programme should be employed to install Kalzip roofing.
Approved roofing contractor is to provide on site fully trained.

-

-

Not required., Kalzip DICONAL mounting system mechanically fixed to Kalzip standing seam profiles without penetrating the roofing material. Fixing method to comply with the manufacturer’s recommendations, ensuring the integrity of the roofing system and compatibility with project-specific requirements.

-

-

No

-

-

Germany

-

-

United Kingdom

-

-

110 Hall Wood Ave, Saint Helens WA11 9WB, UK

-

-

Aluminium, Copper, Stainless steel, Zinc, Steel, Rock mineral wool, Glass mineral wool, Metal

-

-

9.61 kg CO₂ eq/kg

-

-

Excellent

-

-

100 %

-

-

40 year

-

-
