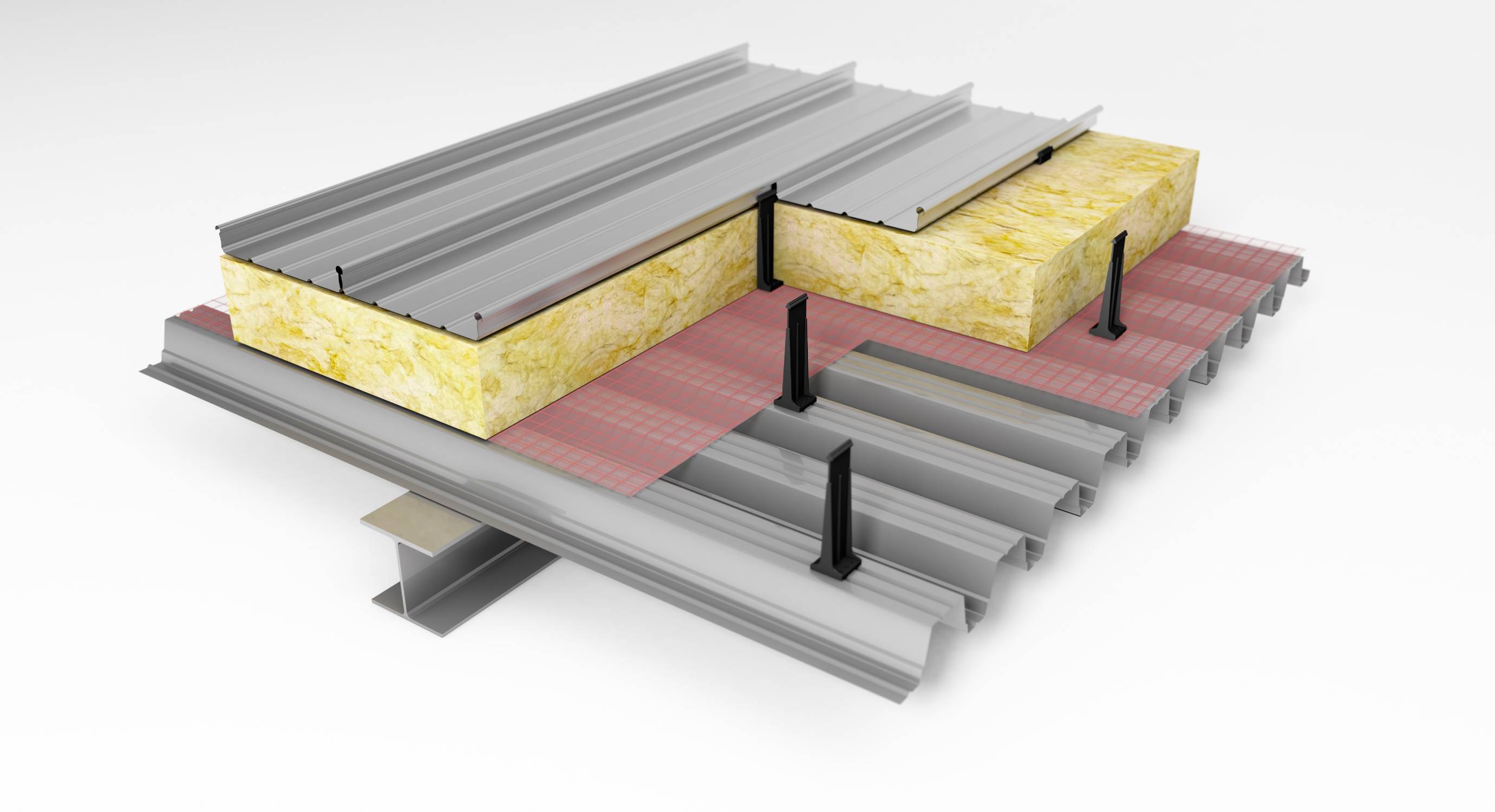

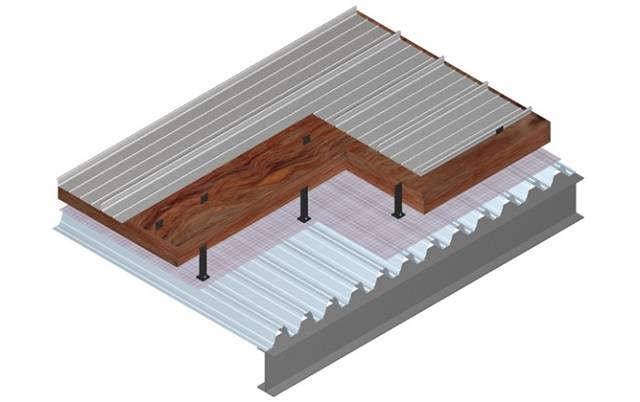

Metal profiled deck roof system, with a thermal transmittance (U-Value) of 0.20 W/m²K
Application
For roof and wall applications.
Description
Metal profiled deck roof system, with a thermal transmittance (U-Value) of 0.20 W/m²K. NB Various U Value options are available refer to Kalzip for clarification
All work undertaken should be fully in accordance with Kalzip standard recommendations and by Kalzip approved welding contractors. Site welding must be carried out fully in accordance with Approved Welding Procedure Specification ASW/TIG/001 Rev ‘B’ 1997 as defined in BS EN ISO 9606-2 for material gauges between 0.8–3 mm thickness.
Site welding operatives must be certified to BS EN ISO 9606-2 standard for material gauges between 0.8–3 mm thickness. The weld test procedure shall be in accordance with BS EN ISO 15614-2: 2005.
Kalzip sheets to be installed as per cladding manufacturer's instructions.
Features and benefits:
- The deck system is a variation of the standard liner system. A higher structural grade of steel is used to allow the clip rails to be positioned away from the main steelwork.
- Quick installation.
- Suitable for a wide range of applications.
General information
Color | Manufacturer guidanceVarious colour options available refer to product literature. |
Finish | Galvanized Manufacturer guidanceVarious finish options available refer to product literature. |
Material | Aluminium Steel Copper Stainless steel Metal |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Various other warranty periods are available. |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Product range |
Specification data - Metal profiled sheet self-supporting roof covering systems
Liner sheets | |
Material | Kalzip Liner TR35/200S (trough perforated). |
Primary fasteners | 5.5 mm diameter carbon steel self-drilling fasteners (SD-8-T15-5.5x25). One fastener(s) to be installed in every valley at each sheet support. |
End and side laps | Guidance for specification option: 100 mm (minimum). Consult manufacturer for details and insert requirements. |
Air and vapour control layer | |
Material | Kalzip VCL Clear - Reinforced virgin polyethylene with 530 MNs/g vapour resistivity. |
Sealing | Seal with one row of sealant tape, not less than 50 mm. |
Spacers | Support clips, steel reinforced polyamide Kalzip E-clips type E.160 with S10 and S5 spacer. |
Acoustic insulation | Kalzip Acoustic Rockfibre Slab (Tissue faced) - Manufactured with ECOSE™ Technology. |
System accessories | Not required.Extruded aluminium alloy (EN AW-6061) gable end hooks.Extruded aluminium alloy (EN AW-6063) drip angle 40 x 20 mm.Extruded aluminium alloy (EN AW-6063) flat bar 22 x 6 mm.Extruded aluminium alloy (EN AW-6063) gable end channel.Extruded aluminium alloy (EN AW-6063) tolerance gable clip extrusion.Fabricated aluminium alloy (EN AW-3004) flashings.Guidance for specification option: Material and finish as per cladding sheets or as per project requirements - consult manufacturer for details. Fabricated aluminium alloy (EN AW-3004) ridge closures (KZ 65/400).Fabricated welded soaker units.Guidance for specification option: Material and finish as per cladding sheets or as per project requirements - consult manufacturer for details. Kalzip profile eaves fillers (KZ 65/400).Kalzip profile ridge fillers (KZ 65/400). |
Thermal insulation | Kalzip Insulation Quilt Type 1. Guidance for specification option: Manufactured with ECOSE™ Technology. Mineral wool insulation, manufactured in accordance with BS EN 13162. |
Thermal transmittance (U-Value) | 0.2 W/m²K. |
Pitch | 1.5° (minimum). |
Bearing width | 58 mm (minimum). |
Structural support | Cold rolled steel purlins. |
Type | Black closed cell cross-linked polyethylene with a minimum density of 30 kg/m³. |
Thickness | Guidance for specification option: 30 mm minimum. Consult manufacturer and insert requirements. |
Finish | Aluminium, AluPlusPatina. Aluminium, natural stucco embossed. Aluminium, with a PVDF paint coating. Aluminium, with an HPC paint coating. AluPlusZinc. |
Shape | Manufacturer guidanceTo suit project requirements. |
Third-party certification | British Board of Agrément Certification No. 98/3481 and Institute fur Bautechnic Zulassungbescheid N R 14.1-181. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.61 kg CO₂ eq/kg Manufacturer guidanceRefer to EPD certificate. |
Recyclability | Excellent |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Recycled aluminium top sheet. |
