Kalzip® FC rainscreen is a non-penetrative façade system that incorporates a fast-to-install lightweight flat rainscreen panel, suitable for both new build and refurbishment projects

Jump to:
+44 (0)1942 295500 Website

Application

Kalzip FC Facade Rainscreen is suitable for new build and refurbishment projects; can be used with all existing support structures and wall constructions.


Sophisticated and leading installation systems

  • Time-saving installation by latching the system components in - this is especially cost effective
  • Freely selectable installation direction from top to bottom or from bottom to top as well as - surface related - independent of adjacent panels. The benefit: The installation is in sync with the construction progress, connections and fit components can be installed retroactively - for example, it is possible to delay entire facade fields in the traffic area until the outside systems have been completed.
  • Easy latching in of the accessories for fixed point, bend part bracket, etc., in the raster click rail Logistikzentrum SBF Poing, München Architects: io-consultants GmbH & Co. KG
  • Suitable for the installation on all substructures - therefore always the most economic and constructions-physical best solution


Exchanging instead of complete dismantling

  • Easy and fast exchange of damaged panels using the FC tool kit
  • Removal of entire facade surfaces with low time and cost expenditures
  • Guarantee of the optical appearance of the facade at any time


High design flexibility for expressive character

  • Level geometric impression with delicate groove raster
  • Multi-directional installation offers variable design options for architects and planers
  • Optimized production tolerances based on advanced roll-forming technology.
  • Maximum design flexibility due to a variety of construction widths
  • Emphasizing the metallic building enclosure through expressive colors and surfaces
  • As a standard, all panels with head bending at no extra costs


For a sustainable and economic planning

  • Reduced material use through optimized panel geometry.
  • If required, cost-saving exchange of individual panels - a benefit for the building insurance

Description

Non-penetrative facade rainscreen system, which incorporates a fast-to-install, lightweight flat rainscreen panel, suitable for both new build and refurbishment projects.


The system is highly flexible, allowing the installation of the profiles to be carried out in two directions, either from the top down or from the bottom up. This allows for easier and faster installation compared to conventional panel systems, but also allows scaffolding or subsequent construction work to be coordinated independently from the installation process.


Features and benefits

  • Contemporary, visually appealing aesthetics.
  • Various standard profile widths are available, providing flexibility and scope for design.
  • Highly cost-effective through simple and fast installation.
  • Panels can be installed horizontally and vertically.
  • Supported by the proprietary modular click rail or mono-click bracket without the need for screws or rivets.
  • Optimized panel geometry means low inherent weight and reduced use of materials.
  • A wide range of colour and surface finishes with edge folding are available.
  • Internal and external corner panels can be integrated if required.
  • High structural performance.
  • Creation of fixed point with a specially designed fixed point clamp, which allows panel adjustment after installation.
  • In case of damage, the Kalzip® FC rainscreen allows the replacement of individual panels without having to dismantle the entire facade. A panel can be removed quickly and simply using the specially developed tools from the Kalzip® FC tool kit - consult manufacturer for details.
  • The Kalzip FC rainscreen façade system has been tested at the BRE in accordance with the BS 8414 Part 1 test standard and satisfies the requirements of BR 135.

General information

Color

Other

Manufacturer guidance

Kalzip roof and cladding systems are available in a host of finishes and materials. In addition to aluminium, the system is offered in special finishes like AluPlusPatina as well as coated finishes such as PVDF or HPC.

Finish

PVdF

Guidance for specification option:

Aluminum PVDF Coated.

Coated

Guidance for specification option:

Aluminum High Performance Coating (HPC).

Other

Guidance for specification option:

Aluminum AluPlusPatina.


Metallic

Bronze

Show more

Manufacturer guidance

A wide range of surface finishes are available. See product literature.

Material

Aluminium

Shape

Rectangle

Square

Other

Length

Bespoke

Manufacturer guidance

To suit project parameters maximum 6000mm

Width

250 mm

300 mm

350 mm

400 mm

450 mm

Show more

Manufacturer guidance

As per product literature 250mm up to 800mm

Height

Bespoke

Manufacturer guidance

Various options available refer to published literature

Warranty description

Other

Manufacturer guidance

Warranty periods subject to review depending on finish and project location. Please contact Kalzip for more information.

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Product range

Rainscreen

Specification data - Drained and back-ventilated rainscreen cladding systems

Breather membrane

-

Material

Contractor's choice (project specific).

Fasteners

-

Manufacturer guidance

To suit project requirements.

Secondary support structure

Supported by the proprietary modular click rail or mono-click bracket.

Cavity fire barriers

-

Horizontal

To be determined by project fire engineer.

Manufacturer guidance

To suit project requirements.

Vertical

To be determined by project fire engineer.

Manufacturer guidance

To suit project requirements.

Cladding panels

-

Material

Manufacturer's standard.

Guidance for specification option:

EN AW-3004, EN-AW-3005 or EN AW-6025 subject to finish selected. Consult manufacturer for details.

Manufacturer guidance

To suit project requirements.

Panel joints

Open joints, guidance snapper to be used to ensure joint consistency.

Reveals

A/CAD details available.

System accessories

FC Facade Rainscreen accessories to suit project requirements:
· Click Rail Adapters;
· Flashing Supports;
· Fixed Point Clamps:
· Guidance Snappers;
· Mono-click Brackets.

Guidance for specification option:

Click rail adapter:

  • For SE and SEL modular click rails.

Flashing support:

  • Material and finish as per cladding sheets or as per project requirements - consult manufacturer for details.

Fixed point clamp:

  • One per panel.

Guidance snapper:

  • One per panel.

Mono-click brackets:

  • Used in particular for rainscreen areas with changing panel widths or with complex connection details. It must always be fastened with two screws or rivets.


Type

FC Rainscreen 30/250.

FC Rainscreen 30/300.

FC Rainscreen 30/350.

FC Rainscreen 30/400.

FC Rainscreen 30/450.

Show more

Thickness

1.0 mm (nominal).

1.2 mm (nominal).

1.5 mm (nominal).

1.6 mm (nominal).

Finish

Aluminium AluPlusPatina.

Aluminium, with a polyester paint coating.

Aluminium, with a PVDF paint coating.

Aluminium, with an HPC paint coating.

Panel options

Not required.

Edge returns - removal.

Guidance for specification option:

Supplied as standard with edge returns on both sides. Can also be manufactured without edge return on enquiry.

Micro-ribbed.

Guidance for specification option:

Available for FC Rainscreen 30/400 profile only.

Perforated.

Guidance for specification option:

Consult manufacturer for perforation options and insert requirements.

FC rail type

FC SE Rail.

Guidance for specification option:

Self-supporting rail that can be used as load-bearing profile and can be fastened to a sub-construction independent of the joint position.

FC SEL Rail.

Guidance for specification option:

A load-bearing rail and can be fastened directly to L wall holders thanks to the 50 mm long web. A further support profile is not necessary.

Corner panels

Internal and External Corner panels to suit project requirements.

Guidance for specification option:

Different angles are available; consult manufacturer for details.

Dimensions

-

Manufacturer guidance

Flexible to suit project requirements.


Installation

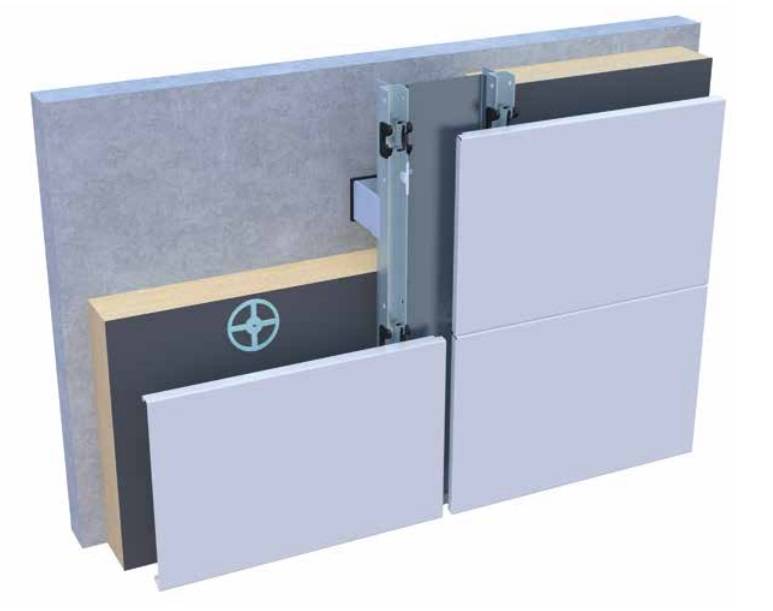

Installation of the Kalzip FC façade is carried out using proprietary system support rails fixed to an adjustable subconstruction suitable for rainscreens.
The chosen subconstruction should be adjustable to accommodate building tolerances to achieve a plane surface in accordance to ensure the FC Facade system can be installed within the recommended tolerances and specifications.

The FC façade system is supplied with proprietary fixing-free panel supports. The FC panels are inserted and clicked into proprietary modular click rails. To ensure trouble-free panel installation, it is essential that the modular click rails are accurately installed according to the guidelines in the installation manual to give a lined and levelled sub-construction for the FC panels.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Aluminium

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

9.61 kg CO₂ eq/kg

Manufacturer guidance

Refer to EPD certificate.

Recyclability

Excellent

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

Recycled aluminium weather sheet.

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Kalzip ISO 14001

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

Kalzip ISO 45001

ISO 9001 Quality Management

ISO 9001 Quality Management

Kalzip ISO 9001

EPD

EPD

Kalzip FC Facade EPD

European Technical Approval (ETA)

European Technical Approval (ETA)

Kalzip FC façade Technical Approval

BR 135

BR 135

FC Rainscreen Facade BR135
