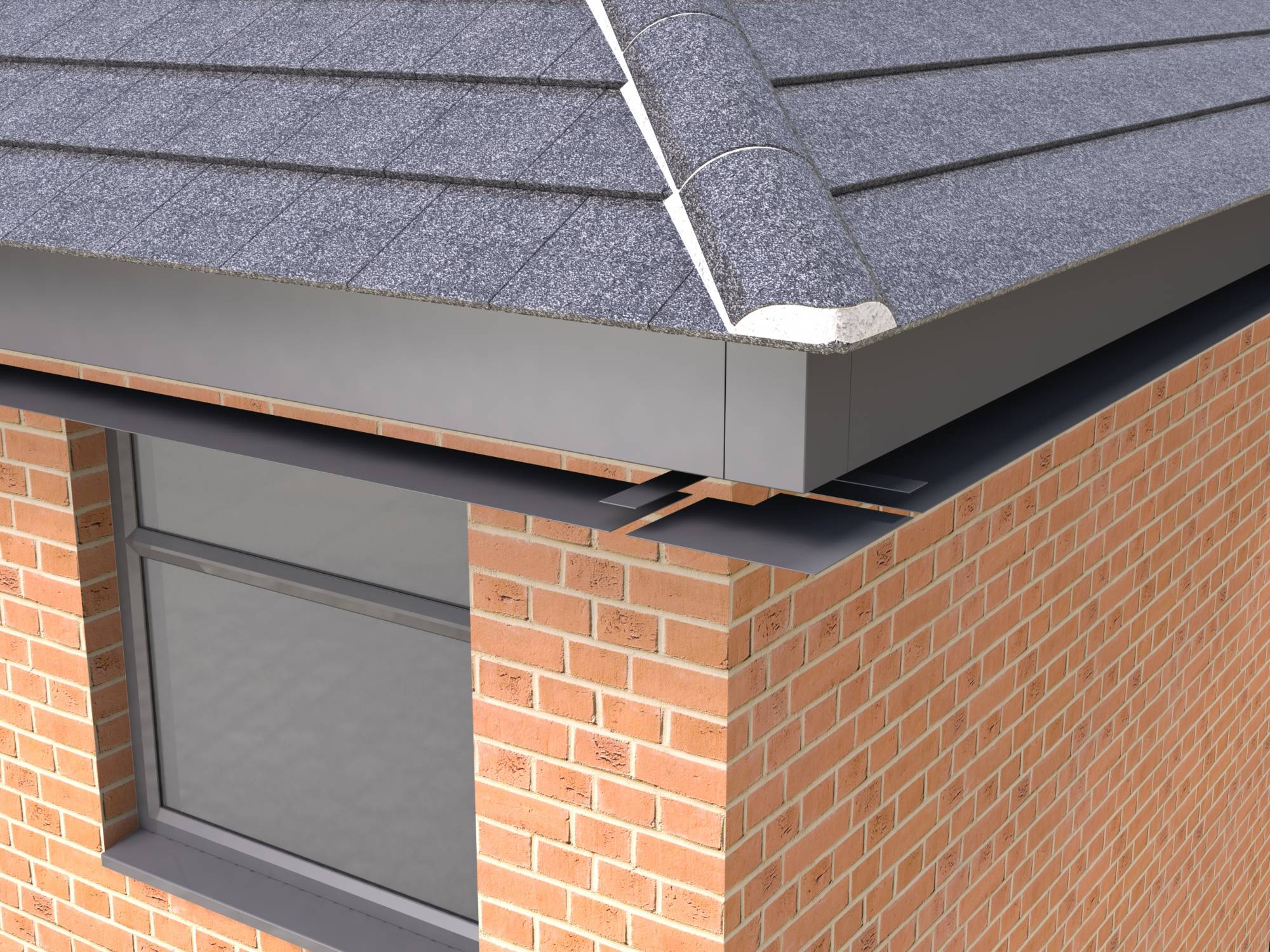

Alumasc Skyline Aluminium Soffit Standard Profile
Verified by manufacturer 1 month ago
SOF0
SOF0
BBA Agrément Certificate
Certificate type
UKAS
Certificate type
Folded Sheet Aluminium Soffit System.
Application
- Complete new build designs utilizing standard components.
- Wherever overhanging soffits are a feature of the roofline and as a finishing beneath canopies.
- Often combined with standard fascia system.
- Compatible with Alumasc Rainwater System.
Description
The Skyline soffit system is based on three profiles in a range of sizes to connect onto the Skyline fascia system, engineered to the highest standard on a project by project basis to suit any architectural requirements.
Features and benefits:
- Standard components are lightweight, durable and corrosion resistant.
- Entirely weatherproof.
- Easy to handle.
- Life expectancy of aluminium: 40 years (rural/ suburban areas); up to 25 years (industrial/ marine areas).
- Aluminium is 100% recyclable.
General information
Color | Beige Black Blue Cream Green |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Other |
Uniclass | |
CAWS | G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits |
Product range |
Specification data - Aluminium combined fascias, soffits and gutters
Form | Soffit. |
Fascias | |
Profile | No bends. |
Soffits | |
Profile | Flat sheet. |
Size | Manufacturer guidanceVarious options available, from 0-200 mm girth to 900-1000 mm girth. Insert requirements. |
Thickness or gauge | 2 mm.3 mm. |
Colour | Mill finish.RAL 1011m Brown Beige.Guidance for specification option: Polyester powder-coated. RAL 1013m Pearl White.Guidance for specification option: Polyester powder-coated. RAL 1021m Cadmium Yellow.Guidance for specification option: Polyester powder-coated. RAL 2002m Vermilion.Guidance for specification option: Polyester powder-coated. RAL 3003m Ruby Red.Guidance for specification option: Polyester powder-coated. RAL 3005m Wine Red.Guidance for specification option: Polyester powder-coated. RAL 5003m Sapphire Blue.Guidance for specification option: Polyester powder-coated. RAL 5010m Flower Blue.Guidance for specification option: Polyester powder-coated. RAL 6005m Moss Green.Guidance for specification option: Polyester powder-coated. RAL 6018m Yellow Green.Guidance for specification option: Polyester powder-coated. RAL 7005m Mouse Grey.Guidance for specification option: Polyester powder-coated. RAL 7006m Beige Grey.Guidance for specification option: Polyester powder-coated. RAL 7012m Basalt Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7015m Slate Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7016m Anthracite Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7024m Graphite Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7036m Platinum Grey.Guidance for specification option: Polyester powder-coated. RAL 7037m Dusty Grey.Guidance for specification option: Polyester powder-coated. RAL 7038m Agate Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 8017m Chocolate Brown.Guidance for specification option: Polyester powder-coated. RAL 8019m Grey brown.Guidance for specification option: Polyester powder-coated. RAL 9006m Metallic Silver.Guidance for specification option: Polyester powder-coated. RAL 9006g Metallic Silver (80% Gloss).Guidance for specification option: Polyester powder-coated. RAL 9016m White.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 9017m Black (60% Gloss).Textured Black.Bespoke, RAL or BS.Guidance for specification option: Polyester powder-coated. Consult literature for details and insert requirements. Manufacturer guidanceStandard aluminium RAL colour range. |
Fire rating (to BS EN 13501) | A2. |
Film thickness (minimum) | 2 mm. 3 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 40 year |
Third party certifications
BBA Agrément Certificate
BBA Powder Coating Certificate
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Skyline Technical Brochure
Case studies

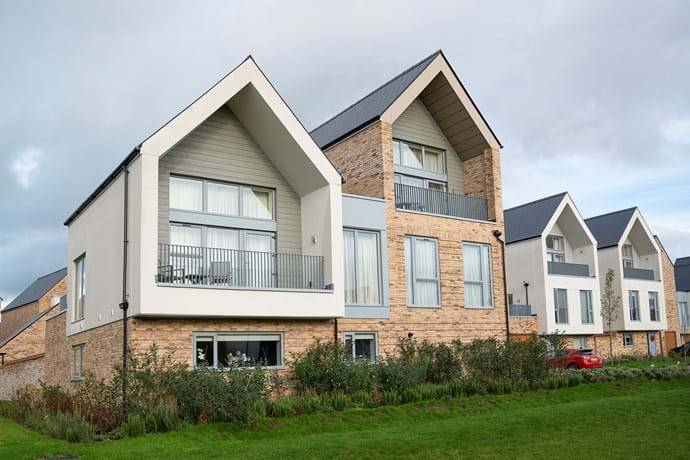

Beaulieu Park - Alumasc Skyline Fascia, Soffit & Coping
Bovingdon High Street - Alumasc Skyline Fascia, Soffit & Coping, Rainwater AX & Swaged
Channel Island Homes - Alumasc Skyline Fascia, Soffit & Coping
Greenfields - Alumasc Skyline Fascia & Soffit
The Sail, West Kirby - Alumasc Skyline Fascia, Soffit & Coping
Wimbledon Centre Court - Alumasc Skyline Soffit
