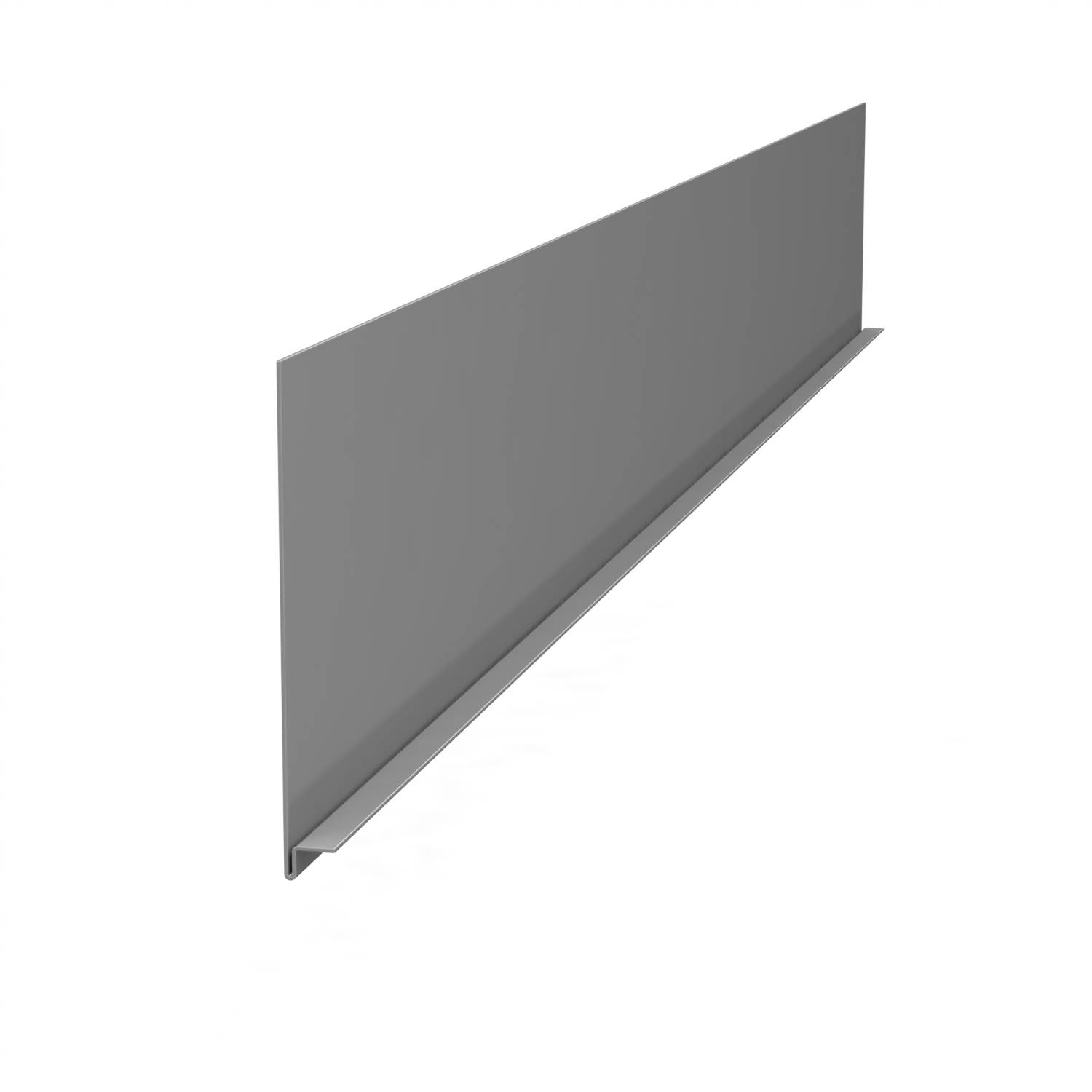

Alumasc Skyline Aluminium Fascia Safe Profile
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
UKAS
Certificate type
Folded Sheet Aluminium Safe Edge Fascia System
Application
- Complete new build designs utilising standard components.
- Often combined with standard soffit plank system.
- Compatible with Alumasc Rainwater System.
- Linear components joined by internal brackets, avoiding stepped joints.
- Fabricated fittings are mitred, welded and linished to provide a smooth uniform finish.
Description
The Skyline Safe fascia system provides an aluminium fascia profile with an edge that is rolled back on itself, engineered to the highest standard on a project-by-project basis to suit any architectural requirements.
Features and benefits:
- Standard components are lightweight, durable and corrosion resistant.
- Entirely weatherproof.
- Easy to handle.
- Life expectancy of aluminium: 40 years (rural/ suburban areas); up to 25 years (industrial/ marine areas).
- Aluminium is 100% recyclable.
General information
Color | Black Beige White Yellow Red |
Finish | Powder-coated |
Material | Aluminium |
Uniclass | |
CAWS | G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits R10/13 Combined fascia, soffit and gutter R10/321 Combined fascia, soffit and gutter |
Product range |
Specification data - Aluminium combined fascias, soffits and gutters
Fascias | |
Size | 0-1000 mm.Guidance for specification option: Girth. |
Thickness or gauge | 2 mm.3 mm. |
Finish | Powder coated.Interpon D1000.Interpon D2000.Manufacturer guidanceTested to BS 476. |
Colour | RAL 1011m Brown Beige.RAL 1013m Pearl White.RAL 1021m Cadmium Yellow.RAL 2002m Vermilion.RAL 3003m Ruby Red.RAL 3005m Wine Red.RAL 5003m Sapphire Blue.RAL 5010m Flower Blue.RAL 6005m Moss Green.RAL 6018m Yellow Green.RAL 7005m Mouse Grey.RAL 7006m Beige Grey.RAL 7012m Basalt Grey (Textured).RAL 7015m Slate Grey (Textured).RAL 7015m Slate Grey.RAL 7012m Basalt Grey.RAL 7016m Anthracite Grey (Textured).RAL 7016m Anthracite Grey.RAL 7024m Graphite Grey.RAL 7036m Platinum Grey.RAL 7037m Dusty Grey (Textured).RAL 7038m Agate Grey.RAL 8017m Chocolate.RAL 8019m Grey Brown.RAL 9006g Metallic Silver.RAL 9006m Metallic Silver.RAL 9016m White (Textured).RAL 9016m White.Textured Black.RAL 9017m Black (60% Gloss).Bespoke RAL.Guidance for specification option: Contact manufacturer for details. |
Film thickness (minimum) | 60-80 Microns.120-160 Microns (Marine). |
Reaction To Fire (to EN1305-1) | A2. |
Standards | To BS EN 13501:2018. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 40 year |
Third party certifications
BBA Agrément Certificate
BBA Powder Coating Certificate
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Skyline Technical Brochure
