Altro Fortis Titanium™
Verified by manufacturer 9 months ago
EPD
Certificate type
Extruded semi-rigid PVC-U wall protection sheet.
Application
Designed for walls in busy public areas subjected to high levels of traffic, such as circulation areas, corridors and classrooms.
Description
Extruded semi-rigid PVC-U wall protection sheet.
Features and benefits:
- Provides durable, impervious protection.
- The visibility of knocks and scrapes is minimal, and the surface is easily cleaned.
- The sheet is available in a range of nine colours, offering flexibility of design.
- Resistant to a wide range of chemicals.
- The sheeting should be fixed using AltroFix™ W157 or W139, depending on substrate and application.
- Accessories are available for use with the product; contact manufacturer for information.
General information
Color | Blue Yellow Grey Red White |
Finish | Textured |
Material | PVC-U |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | P20/170 Proprietary P20/30 Proprietary |
Specification data - Wall protection panels
Classification data | |
Material | Unplasticized polyvinyl chloride (PVC-U). |
Fire rating | To BS EN 13501, B-s3, d0. |
Finish | Textured. |
Colour or pattern | Almond – FT32. Battleship – FT208. Cardinal – FT221. Denim – FT201. Kingfisher – FT213. Oxford – FT211. Pearl – FT41. Riviera – FT207. Tan – FT206. Shadow - FT53. White – FT 01. Manufacturer guidanceBespoke options are available. Consult manufacturer for details. |
Size | 3000 x 1220 mm. Guidance for specification option: (l x w). |
Thickness | 2.5 mm. |
Weight | 3.5 kg/m². |
Density | To ISO 1183, 1.39 g/cm³. |
E modulus | To ISO 527, 3550 MPa. |
Impact resistance | To ISO 179/ea, 9 kJ/m². Guidance for specification option: Gardner impact resistance (to ASTM D4226): 131 in-lb. |
Flexural strength | To ISO 178, 79.8 MPa. |
TensileStrength | To ISO 527, 48 MPa. |
Shore Hardness - D | To ISO 868, 79. |
Coefficient of thermal expansion | To DIN 53752, 7 x 10ˆ-5 (10ˆ4/K). |
Water absorption | To ISO 62, 0.09%. |
Maximum temperature | 60°C. |
Sustainability data
Material | PVC-U |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 2.32 (kg CO₂ eq/kg) Declared unit : 2.32 | |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
EPD

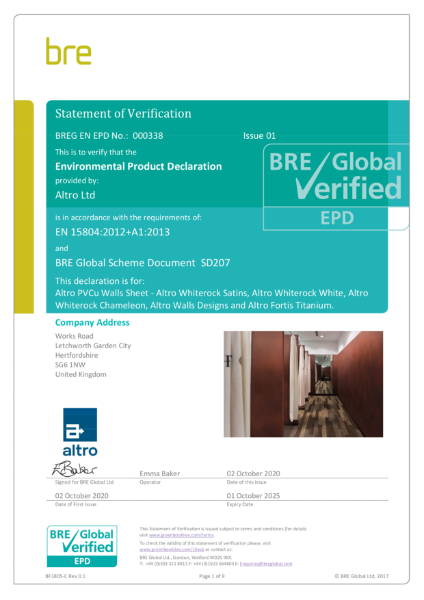

Altro Fortis Titanium EPD
Literature
Literature type

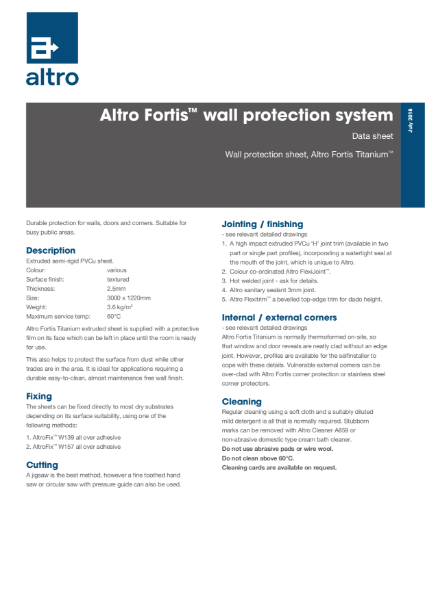

Altro Fortis Technical Data Sheet
Altro Fortis Titanium Sample Card

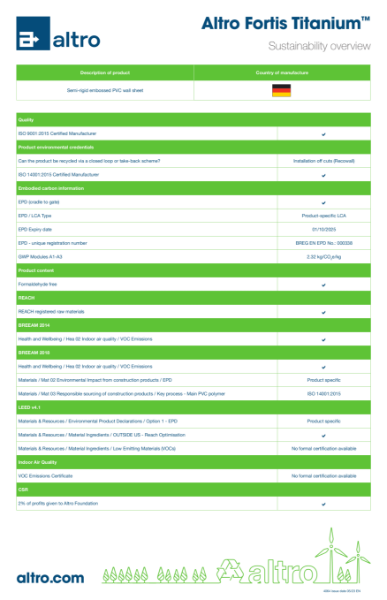

4064_Altro_Fortis_sustainability_overview_v3
