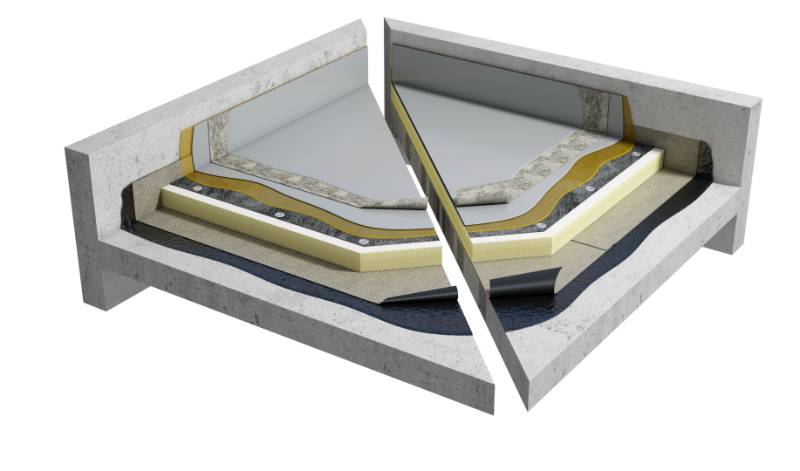

Alsan 601, Liquid applied warm roof system, on a concrete deck

Verified by manufacturer 2 months ago

Soprema UK

PU Liquid cold applied warm roof system on concrete, with PIR glass tissue faced insulation, mechanically fixed protection board and flexible PU liquid resin with fleece.

Jump to:
BIM object icon
+44 (0)330 058 0668 Website

Application

For exposed roofs with a concrete substrate. For other uses and substrates please see other listings or contact Soprema UK.

Description

Polyurethane liquid cold applied warm roof system on concrete substrate. This system is designed using a cold applied, fast drying bitumen primer, a vapour barrier membrane composed of SBS modified bitumen with a composite aluminium and fibreglass reinforcement, PIR glass tissue faced insulation and a mechanically fixed protection board. The waterproofing layer is a single component, ready to use flexible polyurethane based waterproofing resin.


Features and benefits:

  • Single component waterproofing layer.
  • Easy to apply.
  • Withstands building movements.
  • Excellent bonding to the substrate.
  • Waterproofing layer BBA19/5684 ps1.
  • BROOF(t4) rated.
  • 20 year system warranty.


System summary:

  • AVCL (applied to a primed deck): Sopravap EVA 35. Sopravap Alu S16.
  • Insulation: Sopratherm G.
  • Carrier and protection board: Sopraboard.
  • Primer: Alsan Porosity Primer.
  • Waterproofing: Alsan 601 Fleece wet on wet with Alsan 601 Fleece 150.
  • Optional finish: Alsan 903 CP Deco Chips.

General information

Color

Grey

Alsan 601 can be supplied in RAL 7001 (silver grey) or RAL 7011 (iron grey).

Finish

Optional application of Alsan 903 CP RAL 1001 (beige), RAL 1013 (oyster white), RAL 7001 (silver grey), RAL 7032 (pebble grey).

-

Material

Polyurethane

Polyisocyanurate (PIR) glass

Styrene-butadiene-styrene (SBS) modified bitumen

Composite aluminium

Fibreglass

WarrantyDescription

20 year

Uniclass

Ss_30_40_30_43 Liquid-applied warm roof covering systemsPrimary

CAWS

J31/10 Warm deck roof coating

null Warm deck roof coating

J21/10 Warm deck roof coating

J31/120 Warm deck roof coating

J21/110 Warm deck roof coating

Specification data - Liquid-applied warm roof covering systems

System performance

Fire performance, BROOF (t4).

Preparation

-

Horizontal work

Appropriately prepare and prime the substrate and apply Alsan 601 in accordance with Soprema UK instructions.

Skirtings and vertical work

Appropriately prepare and prime the substrate and apply Alsan 601 in accordance with Soprema UK instructions.

Air and vapour control layer

Sopravap EVA 35.

Applied to primed deck.

Sopravap ALU S16.

Insulation

-

Type

Sopratherm G PIR insulation.

Fixing

Single fix.

Overlay

-

Type

Sopraboard.

Fixing

Mechanically fixed.

Liquid-applied waterproofing

-

Type

Alsan 601 Polyurethane (PUR) waterproof coatings, RAL 7001 (silver grey).

Alsan 601 Polyurethane (PUR) waterproof coatings, RAL 7011 (iron grey).

Reinforcement

Alsan 601 Fleece 150 fiberglass fleece.

Surface treatment

None.

Alsan 903 CP, RAL 1001 (beige).

Alsan 903 CP, RAL 1013 (oyster white).

Alsan 903 CP, RAL 7001 (silver grey).

Alsan 903 CP, RAL 7032 (pebble grey).

Alsan 903 CP Deco Chips.

System accessories

Not required.

Draini Alsan.

Execution

Appropriately prepare and prime the substrate and apply Alsan 601 system in accordance with Soprema UK instructions. Alsan 601 systems are only to be installed by a Soprema UK approved installer.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

2

IFC
-

1

Similar products from Soprema UK

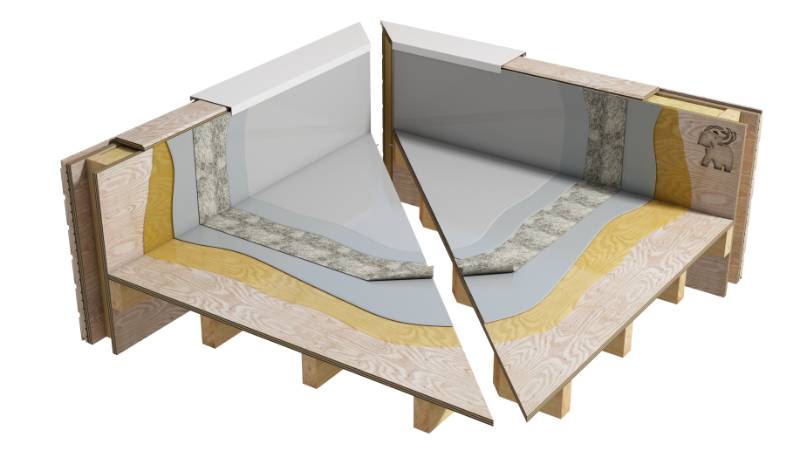

Alsan 601, Liquid applied roof system, on a timber deck
