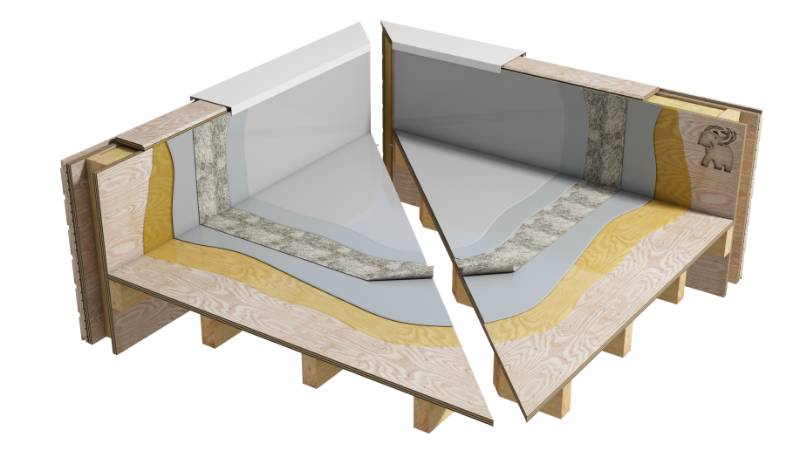

Alsan 601, Liquid applied roof system, on a timber deck

Verified by manufacturer 6 months ago

Soprema UK

PU liquid cold applied roof system on timber with a flexible PU liquid resin with fleece.

Jump to:
BIM object icon
+44 (0)330 058 0668 Website

Application

For exposed roofs with a timber substrate. For other uses and substrates please see other listings or contact Soprema UK.

Description

Polyurethane liquid cold applied system on plywood substrate. This system is designed using a flexible, single component, moisture curing polyurethane resin for sealing and priming membranes, and a fibreglass fleece design for use with Alsan 601, which is a single-component, ready to use flexible polyurethane based waterproofing resin and finished with a clear or pigmented solvent-borne single component aliphatic polyurethane based resin.


Features and benefits:

  • Single component water proofing layer.
  • Easy to apply.
  • Withstands building movements.
  • Excellent bonding to the substrate.
  • Waterproofing layer BBA19/5684 ps1.
  • BROOF(t4) rated.
  • 20 year system warranty.


System summary:

  • Substrate primer: Alsan 601 Porosity Primer.
  • Waterproofing: Alsan 601 applied wet on wet with Alsan 601 Fleece 150 reinforcement.
  • Optional finish: Alsan 903 CP.

General information

Color

Grey

Alsan 601 can be supplied in RAL 7001 (silver grey) or RAL 7011 (iron grey).

Finish

Optional application of Alsan 903CP RAL 1001 (beige), RAL 1013 (oyster white), RAL 7001 (silver grey), RAL 7032 (pebble grey).

-

Material

Polyurethane

Fibreglass

WarrantyDescription

20 year

Uniclass

Ss_30_40_30_43 Liquid-applied warm roof covering systemsPrimary

CAWS

J31/10 Warm deck roof coating

J21/115 Warm deck roof coating

J21/10 Warm deck roof coating

J31/120 Warm deck roof coating

J21/110 Warm deck roof coating

Specification data - Liquid-applied warm roof covering systems

System performance

Fire performance, BROOF (t4).

Preparation

-

Horizontal work

Appropriately prepare and prime the substrate and apply Alsan 601 in accordance with Soprema UK instructions.

Skirtings and vertical work

Appropriately prepare and prime the substrate and apply Alsan 601 in accordance with Soprema UK instructions.

Air and vapour control layer

Not required.

Insulation

-

Type

Not required.

Liquid-applied waterproofing

-

Type

Alsan 601 Polyurethane (PUR) waterproof coatings, RAL 7001 (silver grey).

Alsan 601 Polyurethane (PUR) waterproof coatings, RAL 7011 (iron grey).

Reinforcement

Alsan 601 Fleece 150.

Surface treatment

None.

Alsan 903CP, RAL 1001 (beige).

Alsan 903CP, RAL 1013 (oyster white).

Alsan 903CP, RAL 7001 (silver grey).

Alsan 903CP, RAL 7032 (pebble grey).

Alsan 903 CP Deco Chips.

System accessories

Not required.

Draini Alsan.

Execution

Appropriately prepare and prime the substrate and apply Alsan 601 system in accordance with Soprema UK instructions. Alsan 601 systems are only to be installed by a Soprema UK approved installer.
