Alpha Kerbs
Verified by manufacturer 3 months ago
Alpha kerb
Alpha kerb

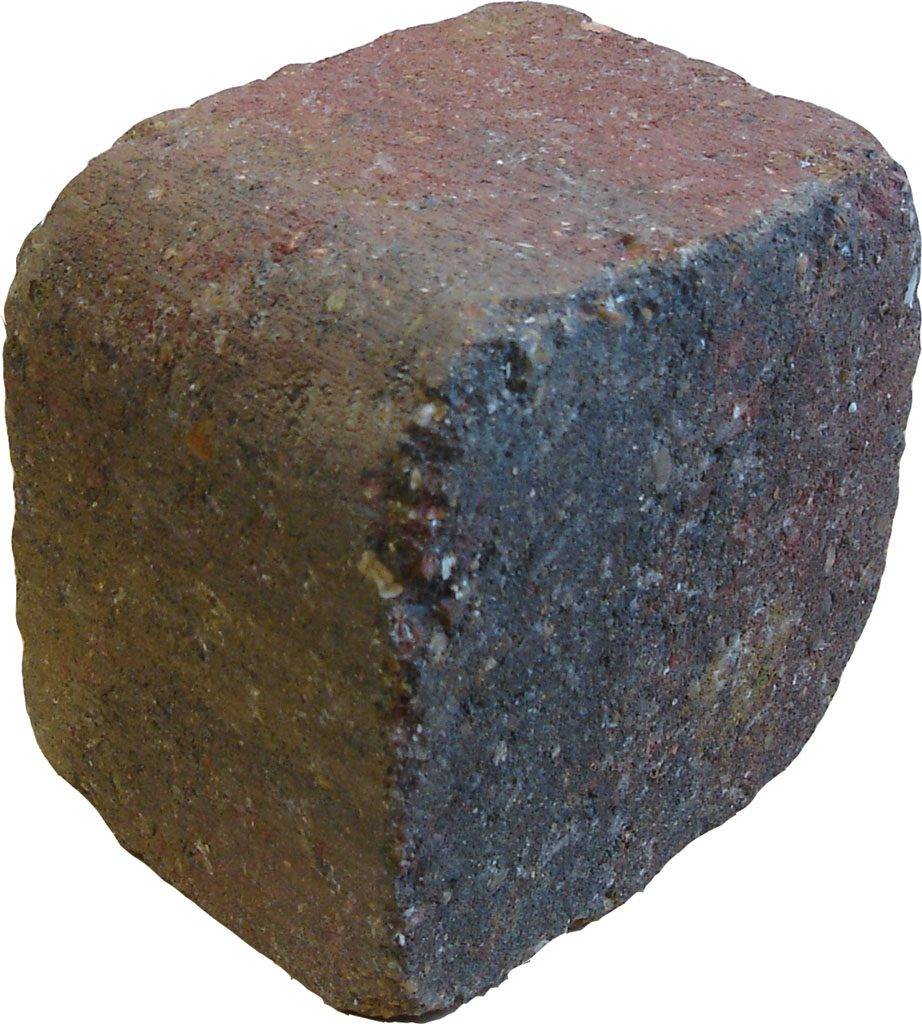

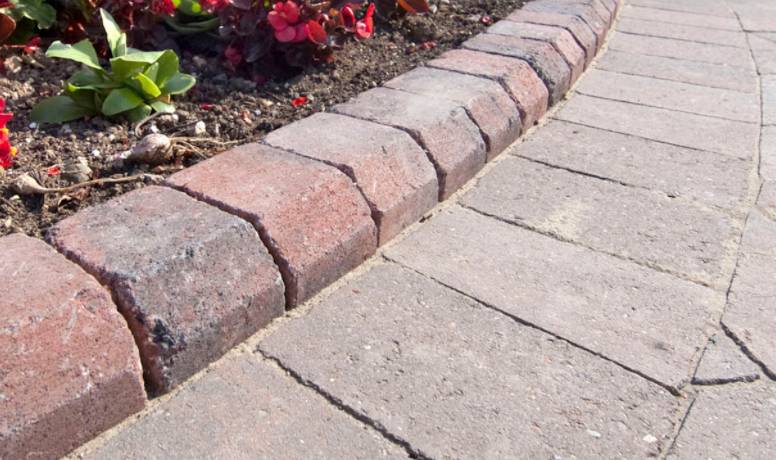

Brett Alpha Kerbs are a tumbled or rustic faced kerb unit available in a bullnose and splay profile option. Suitable for providing a edge profile to driveways, paths and patios.
Application
Domestic and lightly-loaded commercial use; lateral restraint for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, roof top and balcony applications. Installation standard: BS 7533-6:1999.
Description
A low-profile kerb with tumbled and rusticated edges. Complements Aura, Alpha and Regatta units, and provides striking contrast to Lugano, Beta and Delta products (all specified separately).
Standards:
Brett Landscaping operate a number of independently audited management systems:
- BS EN ISO 9001: 2008 Quality Management System.
- BS EN ISO 14001: 2004 Environmental Management System.
- OHSAS 18001: 2007 Health and Safety Management System.
- BES 6001 Responsible Sourcing of Construction Products.
General information
Color | Gold Brown Black |
Finish | Textured |
Material | Concrete |
Shape | Rectangle |
Length | 125 mm |
Width | 125 mm |
Height | 100 mm |
Uniclass | |
CAWS | Q10/10 Precast concrete Q10/110 Proprietary precast concrete |
Specification data - Concrete kerbs
Standard | To BS EN 1340: 2003. |
Physical properties | |
Colour | Autumn Gold.Brindle.Charcoal. |
Finish | Textured.Guidance for specification option: Aged chamfer. |
Profile | |
Designation | SP & BN. |
Dimensions | 125 x 100 x 125 mm.Guidance for specification option: 27 linear metres per pack. Manufacturer guidanceTolerances on working dimensions: Thickness: ±3 mm; Plan size: ±2 mm. |
Radial units | |
Radial face | |
Radius | |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3.Guidance for specification option: ≤23 mm; determined by Wide Wheel Abrasion test. |
Bending strength | Manufacturer's standard.Guidance for specification option: Characteristic tensile splitting strength ≥3.6 MPa; Failing load ≥250 N/mm. |
Unpolished Slip Resistance Value (USRV) (minimum) | ≥55; Potential for slip: Low. |
Recycled content (minimum) | Manufacturer's standard. |
Third-party certification | CE marked. |
ThermalConductivity | 1.2 W/m·K. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete |
Recyclability | 100% |
Expected Life | 40 year |
Literature
Alpha Kerbs
