Akusto One
Application

For use as a vertical absorber.

Description

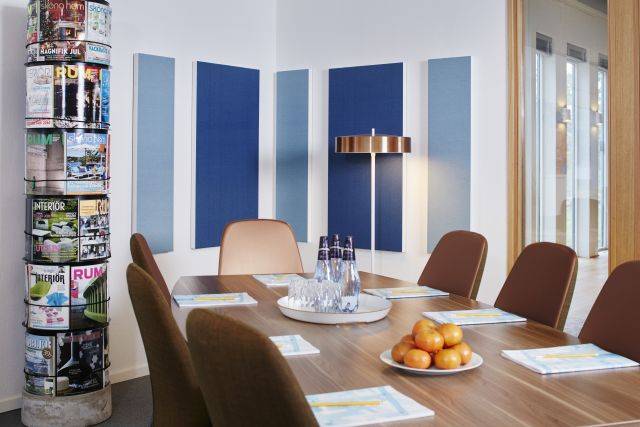

Installing Ecophon Akusto One on a wall increases sound absorption in a room. The system provides various design possibilities, working with different formats and colours to create a wide range of patterns.

There are three fixings for Akusto One: Connect™ One trim, Connect™ One hook fixing or Connect™ One fixing. The system is available in various sizes, with a weight of 2.0–4.5 kg/m².

Features and benefits:

  • The panel is manufactured from high-density glass wool.
  • The visible surface has a glass fibre, coloured fabric and is also available with a painted surface (Akutex™ FT).
  • The back of the panel is covered with glass tissue.
  • The edges are straight-cut and painted in white or grey.

General information

Finish

Color

Wide range available.

-

Material

High-density glass wool

Shape

Dependent on variant specified

Size

300 x 1200 mm

600 x 600 mm

600 x 1200 mm

WarrantyDescription

Uniclass 2015

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/160 Proprietary

K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems Enhanced data

Battens

Galvanized steel.

Aluminium profiles.

Acoustic insulation

In accordance with EN ISO 11654, Class A.

Panelling

-

Type

Individual panels.

Surface material

Akutex FT™.

Dirt-repellent coating, making the surface easier to clean.

Texona.

Woven glass fibre with a smooth-textured surface.

Fasteners

Connect™ One Fixing, green.

For circles only.

Connect™ One Fixing, light grey.

For circles only.

Connect™ One Fixing, pink.

For circles only.

Connect™One Fixing, red.

For circles only.

Connect™ One Hook Fixing.

Connect™ One Trim and Connect Absorber Anchor One.

System accessories

Insert requirements.

Product Reference

Akusto Wall One

Panel size (l x w)

300 x 1200 mm.

600 x 600 mm.

600 x 1200 mm.

600 mm diameter circle.

800 mm diameter circle.

Show more

Thickness

40 mm.

Colour/ Finish

Acai.

Texona. Nearest NCS colour sample: S 6020-R90B Light reflectance: 11.9%

Cloudy Day.

Akutex FT™. Nearest NCS colour sample S 1500-N, 62% light reflectance.

Dark Diamond.

Akutex FT™. Nearest NCS colour sample S 9000-N, 4% light reflectance.

Eucalyptus Leaf.

Akutex FT™. Nearest NCS colour sample S 5010-B30G.

Eucalyptus.

Texona. Nearest NCS colour sample: S 5010-B30G Light reflectance: 23%.

Show more

Edge colour

Grey.

White.

Weight

2–4.5 kg/m².

approximate, including Connect wall panel system

Indoor climate

Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.

Moisture resistance

The tiles withstand a permanent ambient RH of up to 95% at 30°C without sagging, warping or delaminating (EN 13964).

Fire safety

To BS EN 13501-1, Class A2-s1, d0.

Cleaning

Daily dusting, vacuum cleaning and weekly wet-wiping (Super G and Akutex FT surfaces). Weekly dusting and vacuum cleaning (Texona surface) as required.

Environmental information

Contains Red List materials

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

-

Country of material origin

Sweden, Finland or Poland.

Sweden

Recycled content

57
