AIRTRAK® SLV Slate Ventilator - Roof Ventilation System
Verified by manufacturer 3 days ago
ISO 9001 Quality Management
Certificate type
Low profile roof ventilator.
Application
- Roof ventilation.
- Terminal for mechanical extract or soil vent pipe (adaptor required).
Description
Low profile roof ventilator.
Features and benefits:
- Inconspicuous low profile design, providing ventilation to the roof void behind.
- For use in slated roofing.
- Replaces either a standard 600 x 300 mm slate or a 500 x 225 mm slate.
Installation:
Replaces one normal slate (trim to guidelines provided for 500 x 225 mm slates). The slates directly below the ventilator should be cut away to accommodate the felt penetration sleeve on the rear of the slate vent. Consult manufacturer's literature for further details.
General information
Color | Grey |
Material | Polypropylene |
Shape | Rectangle |
Length | 610 mm |
Width | 305 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | H62/840 Ventilator slates H62/86 Ventilator slates |
Specification data - Eaves fascia grilles
Style | Low profile roof ventilator. |
Ventilation opening | 9000 mm². |
Colour | Anthracite. |
Adaptor | Not required. Airtrak SLV/A slate ventilator adaptor. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
Recyclability | Recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Expected Life | 30 year |
Third party certifications
ISO 9001 Quality Management
Citation
Literature
AIRTRAK Roof Void Ventilation System 2020

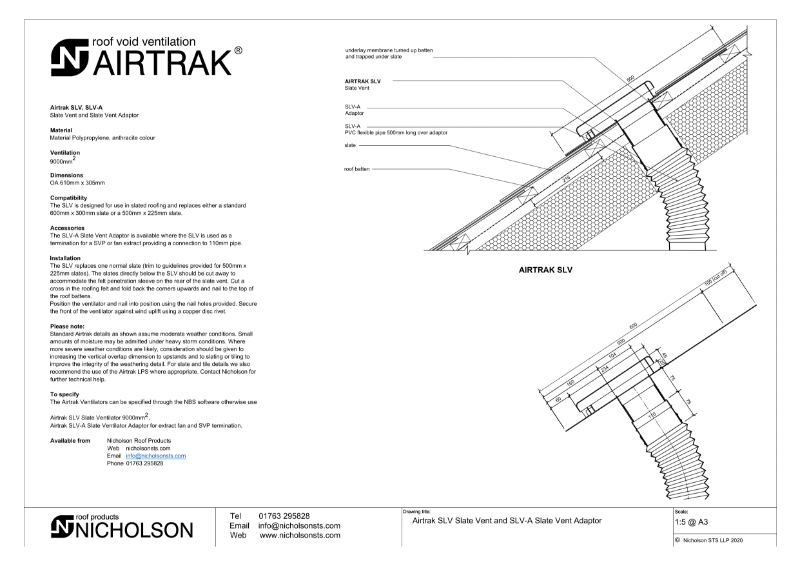

AIRTRAK SLV Data Sheet
Case studies
AIRTRAK™ - St Johns Chapel
AIRTRAK™ - Coal Drops Yard
Clifton Cathedral
