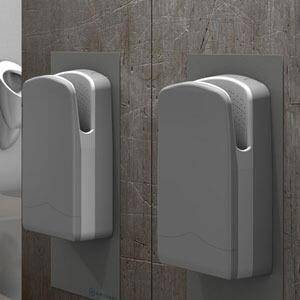

Aertek Triclone Hands-in Hand Dryer - Automatic HEPA-filtered Hygienic Dryer

Verified by manufacturer 4 months ago

Triclone Nickel - AHD-ATTCS

ehanddryers Variant:

The fastest, most hygienic hands-in hand dryer. The Aertek Triclone uses HEPA-filtered air to dry hands in under 10 seconds.

Jump to:
BOS
+44 (0)203 957 5573 Website

Application

Hygienic High Speed Hand Dryer for all washrooms locations including high and very high usage. Suitable alternative to Dyson Airblade. The Triclone covers the existing mounting holes and cable entries and sits at the same height from the floor. It has the benefit of the built-in drip tray to capture water - with indicator for full reservoir.

www.triclone.pro

Description

High speed, hygienic, hands-in automatic hand dryer.


Aertek Triclone is the fastest, most hygienic hands-in hand dryer using HEPA-filtered air to dry hands in under ten seconds.


Features and benefits:

  • High speed hand drying.
  • Less than ten seconds drying time.
  • Two motors with four sets of triple-blade apertures.
  • Long-life motor.
  • Uses hospital-grade HEPA 13 filters to remove 99.97% of all airborne particles of dust, microbes, bacteria and viruses from the air before reaching hands - supplied as standard.
  • Microban antimicrobial cover to ensure there is no bacterial build-up within the reservoir.
  • Osmogen™ fragrance pods are inserted into the dryer to release a natural odour eliminating fragrance to amplify the user experience - supplied as standard.
  • Low noise.
  • Low energy.
  • 2.6 mm thick, vandal-resistant, impact-tested ABS plastic cover.
  • Lacquer coat prevents colour degradation, cracking and abrasion to resist the rigours of a real-life washroom.
  • UKCA/CE marked.
  • Green rating of 3.8.


Aertek Triclone Hand Dryer is supplied with a cleaning brush to enable proper hygienic cleaning on the drainage channel.

Drainage channel and water reservoir are Microban impregnated to reduce bacterial build-up.

Water reservoir enables catchment of water run-off from drying hands. The water reservoir ensures no water is dripped onto the floor as with some other hand dryers. Water reservoir is fitted with a level detector to ensure it is notified to user when it is nearing full and needs emptied.

General information

Color

Silver

White

Black

Finish

Anti-microbial

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Rectangle

Length

195 mm

Width

300 mm

Height

661 mm

Warranty description

Seven year

Guidance for specification option:

One year parts and labour. Six year parts.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Specification data - Hand dryers

Form

High-velocity air through HEPA filter.

Operation

Automatic.

Electrical supply

-

Power rating

1.76 kW.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50/ 60 Hz.

Body

-

Material

ABS plastics.

Finish

Antibacterial coating.

Colour

Silver.

Guidance for specification option:

Nickel.

Ingress protection (minimum)

To BS EN 60529, IP23.

Guidance for specification option:

Class II.

Dimensions

300 x 661 x 195 mm.

Guidance for specification option:

Width x height x depth.

Noise level at 1 m (maximum)

70 dB(A).

Features

Hands-in.

Operation

Sensor IR barrier.

Drying time

10–12 seconds.

Standby power

0.7 W.

Air speed

230 mph.

Anti-microbial coating

Microban.

Aperture

Blade.

Heating element

Yes.

Motor speed

36 000 rpm.

Switch

External switch not required.

Type

Triple air blade, hands-in.

Fixing

Hanging bracket.

Guidance for specification option:

Included.

Weight

9.5 kg.

Fragrance

Osmogen™ fragrance pod.

Guidance for specification option:

As standard.

Certification

CE marked, UKCA, CB, Low Voltage Directive, ROHS, RAEE, ANCE, SABS, SII.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Recyclability

Yes

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

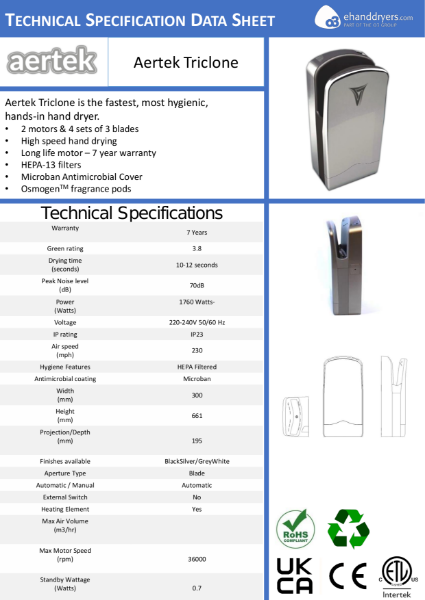

Aertek Triclone - Technical Specification Data Sheet

Aertek Triclone - Technical Specification Data Sheet

Aertek Triclone vs Dyson Airblade AB14 Hand Dryer comparison

Aertek Triclone vs Dyson Airblade AB14 Hand Dryer comparison

Aertek Triclone HEPA Filter details and instructions

Aertek Triclone HEPA Filter details and instructions
