Aertek AirJet High Speed Low Energy Hand Dryer
Verified by manufacturer 11 days ago

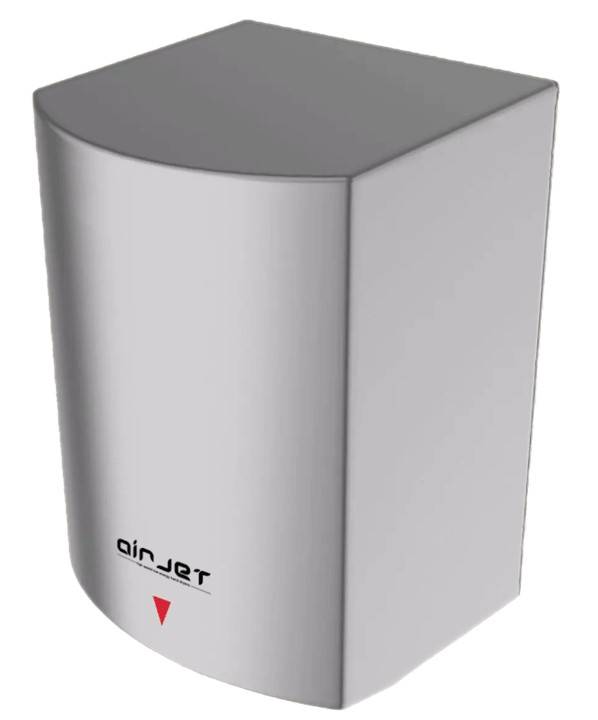

AirJet AJS Satin Stainless Steel - AHD-AJS
AirJet AJS Satin Stainless Steel - AHD-AJS
High speed, low energy hand dryer suitable for high usage areas with LED indicator and illuminated drying zone. Vandal resistant stainless steel hand dryer with robust, metal backplate.
Application
High Speed hand dryer with fast drying time for high footfall areas. Suitable for sports stadiums, nightclubs, exhibition centres, leisure centres, bars, restaurants, airports, transport hubs etc.
Extremely reliable - used in UK/ireland for over 20 years.
Description
High speed, low energy hand dryer.
The AirJet hand dryer from Aertek is a solid, high-volume (high-footfall), high speed, low energy hand dryer suitable for all locations.
Its fast drying time enables fast throughput of high numbers for people for busy environments. With over 20 years in operation in UK and Ireland, the AirJet hand dryer has stood the test of time in both durability and design.
Features and benefits:
- High speed hand dryer.
- Low energy hand dryer.
- Illuminated blue LED hand drying area.
- Adjustable motor speed of 12,000-18,000 rpm, which reduces noise and power.
- Adjustable motor allows energy saving of 1.3-1.6 kW.
- Noise level as low as 70dB.
- Solid, vandal-resistant stainless steel 304 cover and metal backplate.
- Optional HEPA filter kit.
- Also available as a recessed model with incorporated drip tray.
- UKCA/CE marked.
- Green rating of 3.8.
General information
Color | Silver White |
Finish | Satin Brushed Polished Chrome Enamelled |
Material | Stainless steel |
Shape | Rectangle |
Length | 180 mm |
Width | 205 mm |
Height | 287 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
Specification data - Hand dryers
Form | High-velocity air.High-velocity air through HEPA filter. |
Operation | Automatic. |
Electrical supply | |
Power rating | 1.3–1.6 kW. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50/ 60 Hz. |
Body | |
Material | Stainless steel. |
Finish | Satin/ brushed. |
Colour | Silver. |
Ingress protection (minimum) | To BS EN 60529, IP21.Guidance for specification option: IP23 available. |
Dimensions | 205 x 287 x 180 mm.Guidance for specification option: Width x height x depth. |
Noise level at 1 m (maximum) | 74 dB(A). |
Features | Hands-under. |
Operation | Sensor IR barrier. |
Drying time | 10–12 seconds. |
Standby power | 0.5 W. |
Air speed | 224 mph. |
Anti-microbial coating | None. |
Aperture | Jet. |
Heating element | 450–900 W. Guidance for specification option: Adjustable. |
Integral accessories | None. HEPA filter. Guidance for specification option: Optional. |
Motor speed | 18 000 rpm. Guidance for specification option: Maximum. |
Switch | External switch not required. |
Type | Jet, focussed air stream, centrifugal brushed motor. |
Thermal protection | Auto resetting thermostat turns unit off at 105°C (motor thermal protection), auto resetting thermostat turns unit off at 85°C (heater thermal protection). |
Net weight | 5.8 kg. |
Certification | UKCA, CE marked, ROHS, GreenSpec certified, LVD, EMC, BSMI, CB, GS, UL Certified, ISO 14001, ISO 9001. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Taiwan |
Country of product manufacture | Taiwan |
Recyclability | Yes |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Aertek AirJet - Technical Specification Data Sheet

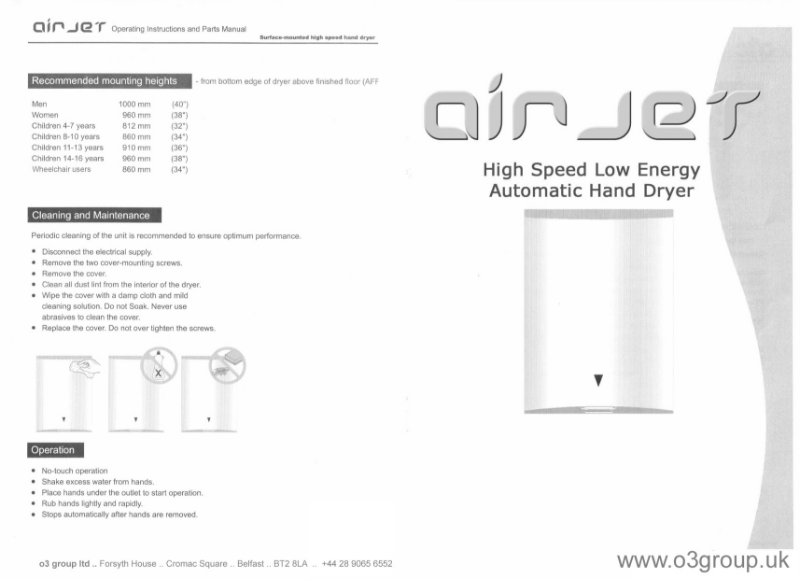

Aertek AirJet - Operating Instructions and Parts Manual
Aertek AirJet Recessed Hand Dryer information
Aertek AirJet Recessed Hand Dryer Tech Spec Data Sheet
