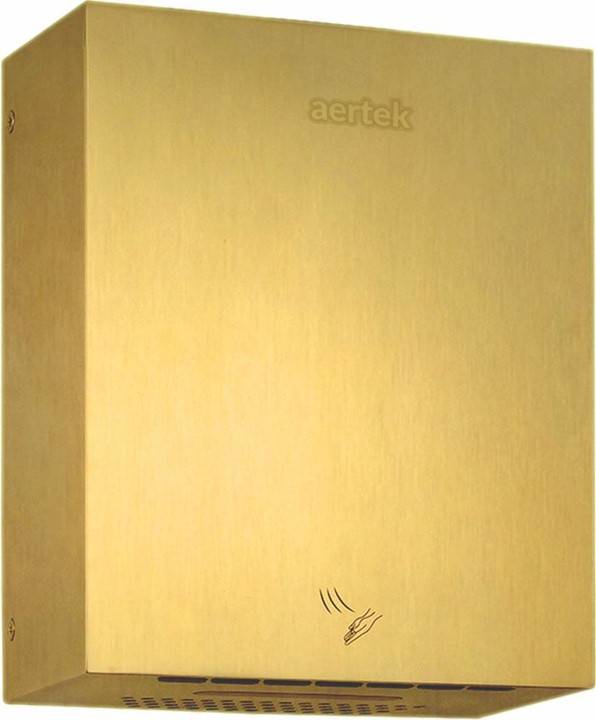

Aertek SlimDri Sterilising DDA HEPA-Filtered Hand Dryer (PVD)
Verified by manufacturer 11 days ago

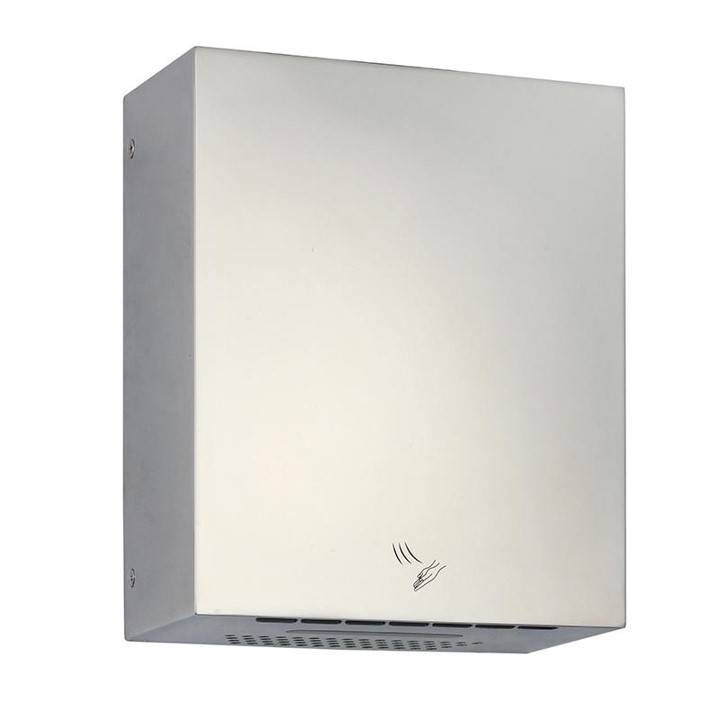

SlimDri ATSL03 Satin Stainless Steel - AHD-ATSL03CS
SlimDri ATSL03 Satin Stainless Steel - AHD-ATSL03CS
Hygienic Hand Dryer with UV Sterilising and HEPA filters. DDA Compliant Hand Dryer (less than 100mm projection). Available in PVD finishes (Black, Brass/Gold as standard, other available on request).
Application
Suitable for a wide range of environments and heavy duty areas.
Suitable for accessible washrooms.
Suitable for environments where low noise is required, e.g. schools, offices, sensory
Description
Aertek SlimDri Sterilising DDA HEPA-Filtered Hand Dryer
Ultra slim hand dryer that is ADA/DDA compliant with HEPA-13 filtration, UVC sterilizing and available in coloured PVD finishes.
Features and benefits:
- ADA/ DDA compliant at 100 mm projection.
- High speed brushless DC 50 000 rpm motor.
- Ultra high speed motors delivers airflow speeds of up to 100 m/s (224 mph).
- Low noise: 70 dB.
- Low energy / Ultra low energy.
- Uses only 0.7 kW and down to 0.3 kW when on economical mode (with heating turned off).
- Two HEPA Grade 13 filters which stop any airborne germs or bacteria from entering the dryer.
- UVC sterilizer as standard.
- Manufactured in grade 304 stainless steel 1.5 mm thick to protect against corrosion and vandalism.
- Available in stainless steel 304 satin, black PVD and brass/gold PVD (Physical Vapour Deposition), which is scratch-resistant, fade-resistant and retains the brushed metal characteristics of the stainless steel.
- UKCA/CE marked.
- Green rating of 4.3.
General information
Color | Silver Gold Black Bronze Copper |
Finish | Satin Brushed Brass PVD |
Material | Stainless steel |
Shape | Rectangle |
Length | 100 mm Guidance for specification option: Depth. |
Width | 230 mm |
Height | 275 mm |
Warranty description | Three year |
Uniclass | |
CAWS | N13/64 Hand dryers N13/472 Hand dryers |
Specification data - Hand dryers
Form | High-velocity air through HEPA filter. |
Operation | Automatic. |
Electrical supply | |
Power rating | 0.3–0.7 kW.Guidance for specification option: Adjustable. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50/60 Hz. |
Body | |
Material | Stainless steel. |
Finish | Satin/ brushed. |
Colour | Silver. |
Ingress protection (minimum) | To BS EN 60529, IP24. |
Dimensions | 230 x 275 x 100 mm.Guidance for specification option: Width x height x depth. |
Noise level at 1 m (maximum) | 70 dB(A). |
Features | Hands-under. |
Operation | Sensor IR barrier. |
Drying time | 13–15 seconds. |
Standby power | 1 W. |
Air speed | 224 mph. |
Anti-microbial coating | None. |
Aperture | Blade. |
Heating element | Yes. Guidance for specification option: Adjustable. |
Integral accessories | HEPA filters, UVC sterilising lamp. Guidance for specification option: Replaceable. Hand dryer can operate with or without. |
Motor speed | 50 000 rpm. Guidance for specification option: Maximum. |
Switch | External switch not required. |
Type | Hands-under blade, sterilizing, filtered, carbon-free brushless DC motor. |
Certification | UKCA, CE, FCC, CB, UL, GS, ROHS. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recyclability | Yes |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

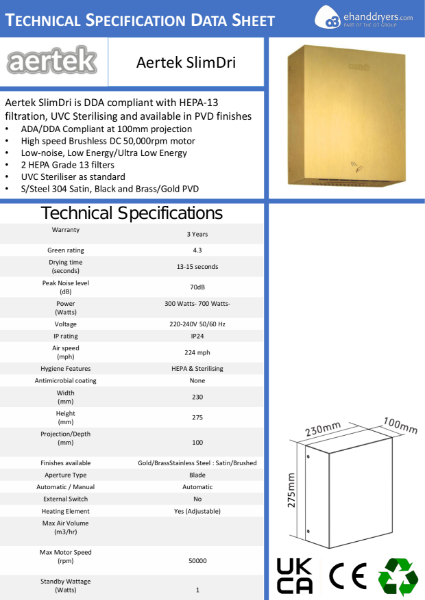

Aertek SlimDri SL03 - Technical Specification Data Sheet
