Aero Core | Anti-draught Ventilators

Name: Aero Core | Anti-draught Ventilators
Brand: Timloc Building Products
SKU: aJ5qNvbos2NE6Z22CLrq3f

Verified by manufacturer 2 days ago

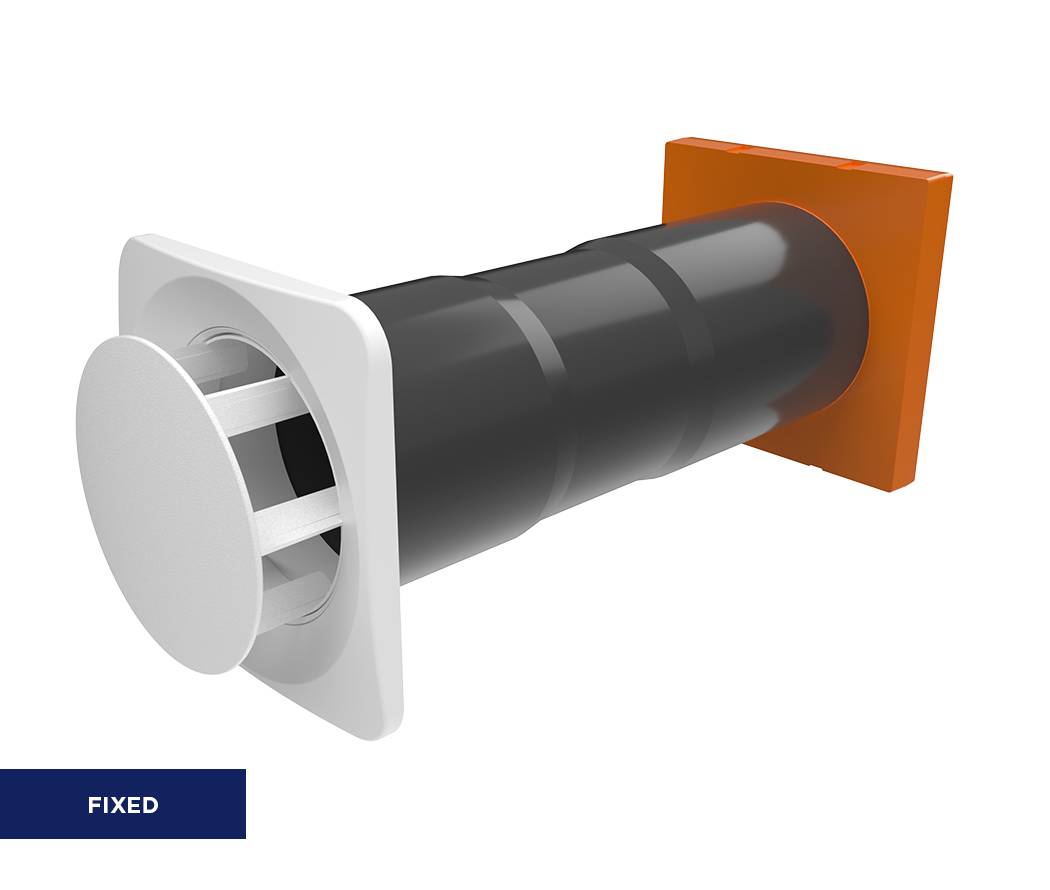

Aero Core fixed vent - baffle/ grille

Anti-draught ventilators to provide background room ventilation or ventilation for heat producing appliances up to a maximum input of 24.8 kW (84 600 Btu).

Jump to:

Request BIM

+44 (0)1405 765567 Website

Application

To provide background room ventilation or ventilation for heat producing appliances up to a maximum input of 24.8 kW (84 600 Btu).
Ideally suited for refurbishment, remedial work or new build.

Description

Anti-draught ventilators to provide background room ventilation or ventilation for heat producing appliances up to a maximum input of 24.8 kW (84 600 Btu).

Features and benefits:

Aesthetically pleasing and discreet vent and grille options.
Provides excellent airflow.

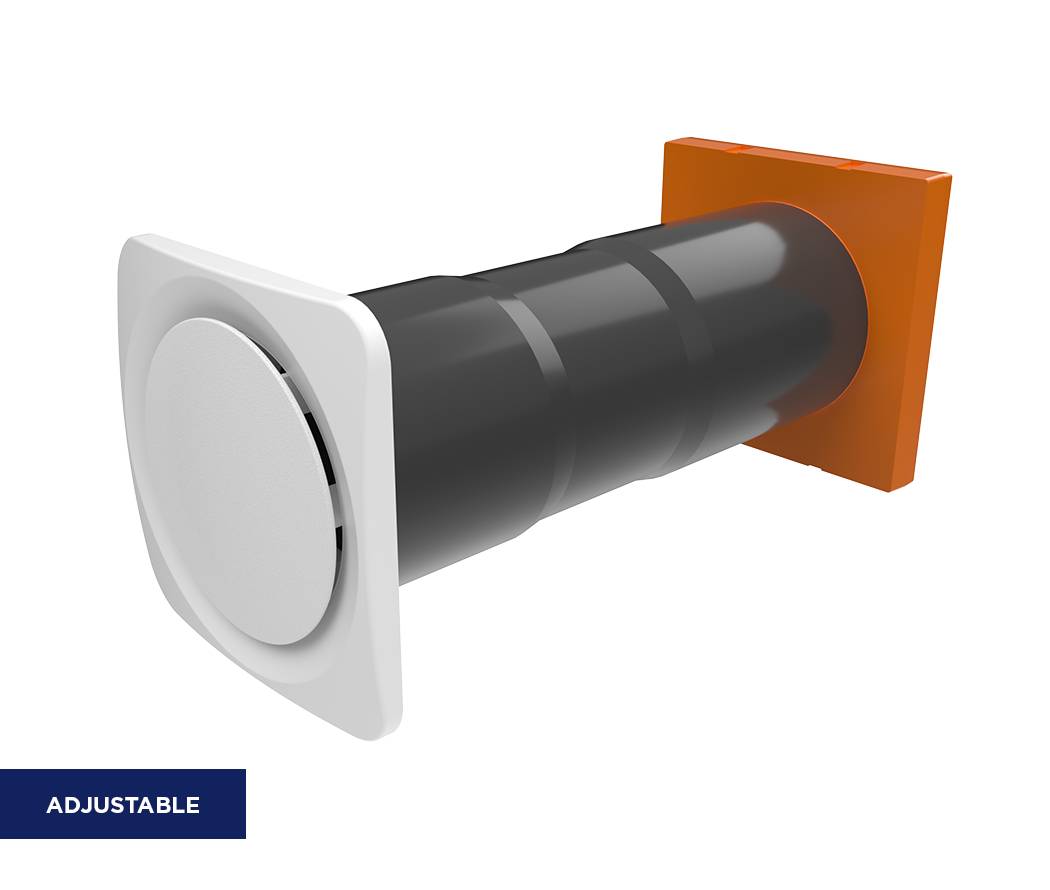

Airflow is easily adjusted by turning the inner section to increase or decrease the opening (adjustable version only).
The supplied duct is Ø127 mm diameter x 350 mm in length and can be trimmed to suit narrower walls as required.
Integrated baffle giving protection against draughts.
Optional backplate accessory designed to cover chipped areas of internal wall during installation and after core drilling (not compatible with internal grille options).
Reduced light transmission through the ventilator compared to other forms of ventilation.
Cowl or grille external vent options available.
The internal vents and grilles are easy to clean and paintable if required to match a coloured wall surface.

General information

Color	Brown Beige Orange White
Finish	Smooth
Material	Polypropylene Polystyrene
Shape	Circle
Width	127 mm Guidance for specification option: 5".
Height	127 mm Guidance for specification option: 5".

Uniclass	Pr_30_59_96_92 Ventilation ductsPrimary
CAWS	U90/340 Through wall ventilator ducts F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling

SKU Code	7500TE, 7500BR, 7500BU, 7500WH, 7510TE, 7510BR, 7510BU, 7510WH, 7520TE, 7520BR, 7520BU, 7520WH, 7530TE, 7530BR, 7530BU, 7530WH, ACV7TE, ACV7BR, ACV7CTE, ACV7CBR

Specification data - Ventilation ducts

Classification data
Description	Anti-draught ventilators to provide background room ventilation or ventilation for heat producing appliances up to a maximum input of 24.8 kW (84 600 Btu).
Material	Vents/ grilles/ cowls: high-impact polystyrene (HIPS). Tube/ baffle: polypropylene (PP).
Colour	Terracotta (7500TE). Brown (7500BR). Buff (7500BU). White (7500WH).
External	Grille.
Accessories	Aero Core backplate. Not required.
Equivalent area	8000 m².
Technical characteristics, other	Appliance rated input: 23 kW (78 500 Btu).
