Active Safety Pedestrian Alert System (PAS) - RFID Tagging Safety System
Verified by manufacturer 2 months ago
The Pedestrian Alert System (PAS) enhances workplace safety by alerting forklift operators of nearby pedestrians in a customizable range.
Application
- Suitable for shared workspaces and limited visibility areas, it improves safety standards and insurance policies while distinguishing between people and objects.
- Compatible with various forklifts, it is recommended to maintain speeds between 6 and 8 km/h for optimal performance.
Description
The Pedestrian Alert System (PAS) enhances workplace safety by alerting forklift operators of nearby pedestrians in a customizable range.
Suitable for shared workspaces and limited visibility areas, it improves safety standards and insurance policies while distinguishing between people and objects.
Compatible with various forklifts, it is recommended to maintain speeds between 6 and 8 km/h for optimal performance.
Features and benefits:
- Designed to minimize the risk of collisions.
- Two-way system; warns the forklift driver as it detects nearby pedestrians, and alerts the presence of the vehicle.

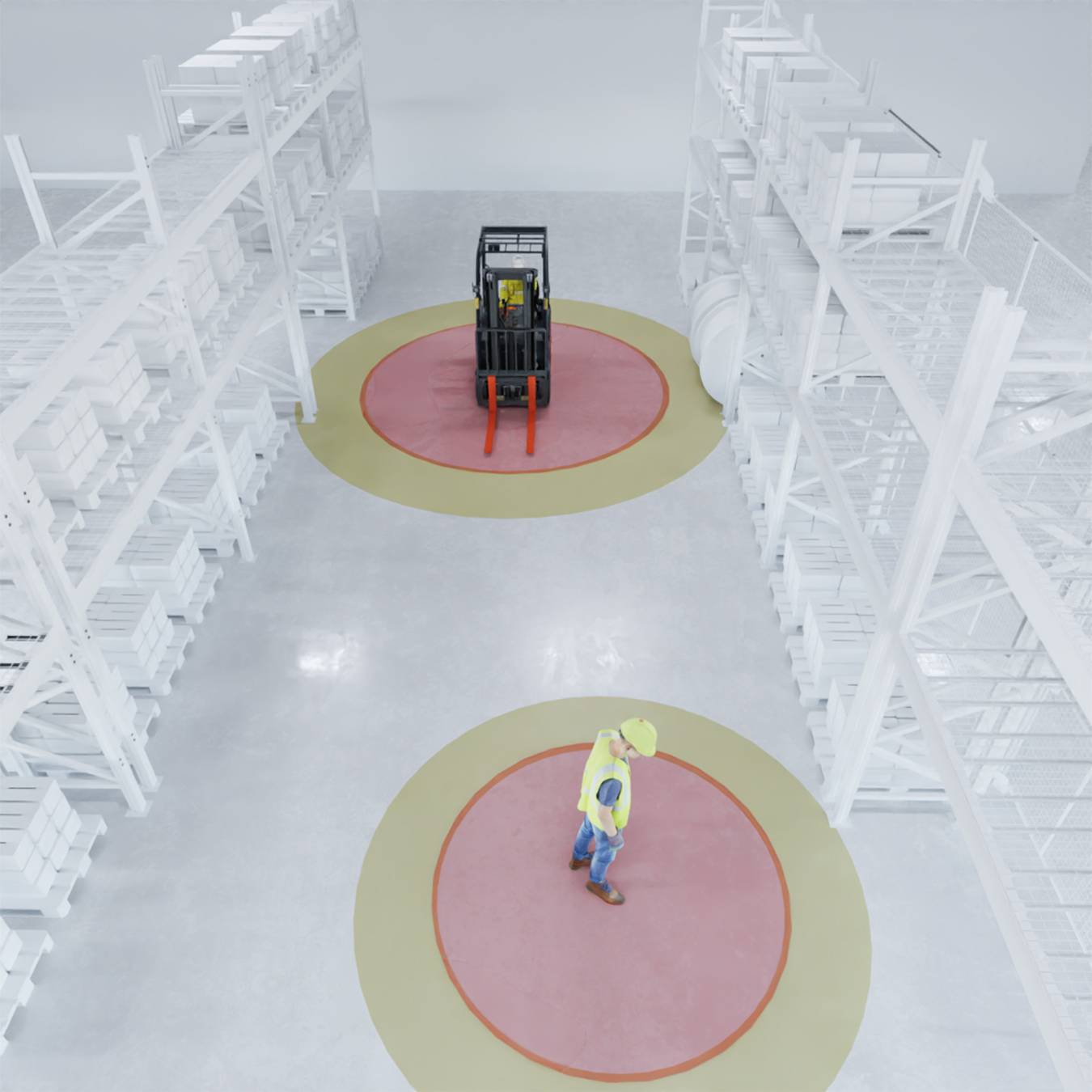

- The forklift's PAS generates a detection zone around it, adjustable up to 11 m.
- The forklift's alert may be a light and/ or a sound and (if the vehicle allows) a limitation in the vehicle's speed limit while the pedestrian is nearby.
- The pedestrian's tag warning can be set to light and/ or sound and/ or vibration.
- Adaptable to any brand of vehicle.
- Durable and robust components.
- The system could be designed to reduce the risk of collisions between unmanned vehicles like AGVs or aerial conveyor systems, and nearby pedestrians.
- Can easily be complemented by adding other security systems.
General information
Color | Green |
Shape | Other |
Uniclass |
Specification data - Radio-frequency identification (RFID) tagging systems
Classification data | |
System reference | PAS - Pedestrian Alert System. |
Products | T-10 personal RFID tags. Guidance for specification option:
T-10R personal RFID tags. Guidance for specification option:
T-10R Badge personal RFID tags. Guidance for specification option:
Manufacturer guidanceConsult manufacturer and insert requirements to suit location, including number of required units. |
System accessories | None. Safety vest with pocket for tag. Wireless charge station. Guidance for specification option: Designed to support up to 12 T-10R tags or combinations of T-10R and T-10R Badge tags. Particularly useful for companies with a large workforce. Unit charger. Guidance for specification option: For use with the T-10R and T10-R Badge tags (single unit charging only; for multiple units see also the Wireless charge station). Inhibitor T-10. Guidance for specification option: Prevents the driver's tag from being detected by the forklift. Consult manufacturer for full details. Mobile inhibitor. Guidance for specification option: Prevents the driver's tag from being detected by the forklift. Attaches magnetically to the tag. Consult manufacturer for full details. Inhibitor T-10R. Guidance for specification option: Prevents the driver's tag from being detected by the forklift. Consult manufacturer for full details. Active inhibitor. Guidance for specification option: Prevents the driver's tag from being detected by the forklift. Consult manufacturer for full details. Simple buzzer. Guidance for specification option: To be connected between the AC-50 activator and the buzzer. It allows the user to regulate the duration of the warning message issued by the PAS system. Forklift demo case PNC00889. Guidance for specification option: Contains the main elements required for an installation of the system to conduct a real simulation. With a small-scale forklift equipped with the PAS system along with a T-10R tag, a real-life situation can be simulated for live demonstrations of the system's operation. PAS repeater. Guidance for specification option: Amplifies the signal of 2.4 GHz. Recommended for large machines and/ or very dense metal environments. TT-50 test tag. Guidance for specification option: A small device installed near Activator AC-50, responsible for overseeing both communications RF and security zone generated by the Activator AC-50. MT-50. Guidance for specification option: Alternative to the TT-50 test tag, consult manufacturer for details. |
Power supply | Guidance for specification option: d.c./ d.c. power supplies available to adapt different battery voltages in the range of 9 to 160 V. Consult manufacturer for details and insert requirements. |
Integral accessories | AC-50 Activator. Guidance for specification option: AC-50 activator provides an immediate indication of the location and the status of a localized tag to improve the supervision and identification capacities. Comprises:
|
Literature
MT-50 v1.0 Claitec EN
Mobile Inhibitor v1.0 Claitec EN
PAS Repeater v1.0 Claitec EN
PNC00889 Forklift demo case pas v1.0 Claitec EN
Safety datasheet T-10 v1.0
Simple Buzzer v1.0 Claitec EN
T-10 Personal Tag v1.0 Claitec EN
T-10R Badge Tag v1.0 Claitec EN
T-10R Personal Tag v1.0 Claitec EN
TT-50 Test-tag v1.1 Claitec EN
Wireless charger v1.0 Claitec EN
Wireless charge station v1.0 Claitec EN
PN09500 AC-50 Activator v1.1 Claitec EN
