ACS 3200 Range Tie
Verified by manufacturer 10 months ago
Multi-purpose wall tie
Application
Cavity wall tie applications.
Description
The ACS 3200 range tie is a multi purpose frame cramp designed in accordance with the requirements of BS EN 845-1. The tie is designed to allow a masonry panel to be tied back to a range of structures/substrates meaning one tie can fulfil a range of applications on site. The tie is designed to exceed the requirements of a Type 2 cavity as described by PD6697. The tie is resistant to water crossing a cavity due to the integrated ‘drip’ features that serves to prevent the transgression of water from the outer leaf to the inner leaf of a building even when installed with an angle of up to 5° in an unfavourable direction. The minimum mortar joint thickness for which this tie is intended for use is 10 mm.
Features and benefits:
- Frame cramp.
- BS EN 845-1 compliant.
- Structure – masonry.
- Austenitic Stainless Steel 1.4301 (304) grade or 1.4401 (316).
- 0 – 245 mm cavity.
- CE marked (EN 845-1).
- Ceram tested.
- Meets the requirement of the NHBC technical specification.
Consult literature for recommended substrate fixings.
General information
Finish | Natural |
Material | Stainless steel |
Length | 75 mm 100 mm 125 mm 150 mm 175 mm |
Uniclass | |
CAWS | F30/218 Shear wall ties F30/24 Cavity wall ties F30/214 Cavity wall ties |
Specification data - Cavity wall ties
Classification data | |
Standard | To BS EN 845-1. |
Material | Austenitic stainless steel, 1.4301 (304) grade. Austenitic stainless steel, 1.4401 (316) grade. |
Length | 75 mm. Guidance for specification option: Nominal cavity width: 0 – 20 mm. 100 mm. Guidance for specification option: Nominal cavity width: 21 – 45 mm. 125 mm. Guidance for specification option: Nominal cavity width:46 – 70 mm. 150 mm. Guidance for specification option: Nominal cavity width: 71 – 95 mm. 175 mm. Guidance for specification option: Nominal cavity width: 96 – 120 mm. 200 mm. Guidance for specification option: Nominal cavity width: 121 – 145 mm. 225 mm. Guidance for specification option: Nominal cavity width: 146 – 170 mm. 250 mm. Guidance for specification option: Nominal cavity width: 171 – 195 mm. 275 mm. Guidance for specification option: Nominal cavity width: 196 – 220 mm. 300 mm. Guidance for specification option: Nominal cavity width: 221 – 245 mm. |
Design embedment length (minimum) | 50 mm. |
Dynamic stiffness | Type B. Guidance for specification option: Tests performed at Lucideon proved that the 3000 range tie has a measured dynamic stiffness of 8.8 MN/m³ in a 100 mm cavity and therefore is classed as a Type B tie in line with guidance of Approved Document E of the Building Regulations. |
Sustainability data
Material | Stainless steel |
Literature

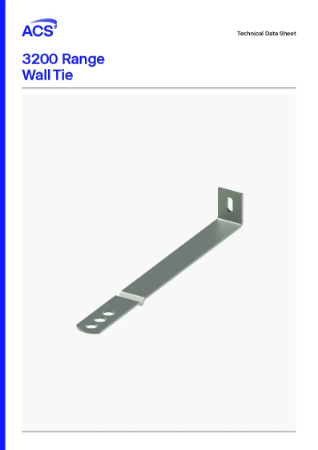

ACS 3200 Range Wall Tie
